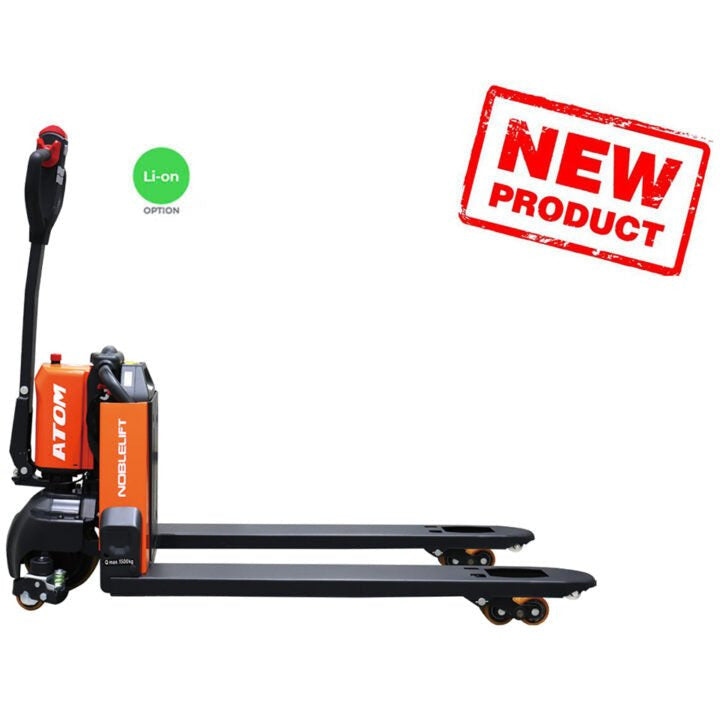

Atom Lithium Powered Pallet Truck
The new ATOM Lithium powered electric pallet truck is designed under the current industrial trend of light duty and Lithium power solution. It continues the concept of the Edge series pallet trucks with compact and smart design but with a target to minimize the cost in manufacturing to offer a more affordable powered light duty material handling solution to the end users.
The ATOM continues to offer the function and solution usually for high-end electric pallet trucks including Can-bus Communication, Fault Code, Battery Discharging Indicator, Drive with the Tiller in Vertical Position, Electric lift and Lower Control. This makes it the perfect solution for the material handling for retail, small warehouse and so on.
Smart lithium battery for fast charging and opportunity charging, no maintenance needed.
3300 lbs capacity
DC permanent magnetic drive motor
24V/20Ah Lithium Battery Pack with BMS
24/8A Lithium charger
270lbs Service weight only
Fork size: 27”W x 45.3”L
8.66"x2.8" polyurethane drive tire
3.1"x3.7" polyurethane single load wheel
Ergonomic control handle with horn & emergency belly button
Removable Key Switch for access to approved personnel
LED with battery charge level and fault code
Dual buttery-style thumb control for travelling Electric Lifting and Lowering Buttons
Drive with tiller in vertical position Integrated Pump without hose
Travel speed: 3.0mph (unloaded), 2.7mph (fully loaded) Standard Stability casters with big metal plate cover
Speed reduction in turns standard
