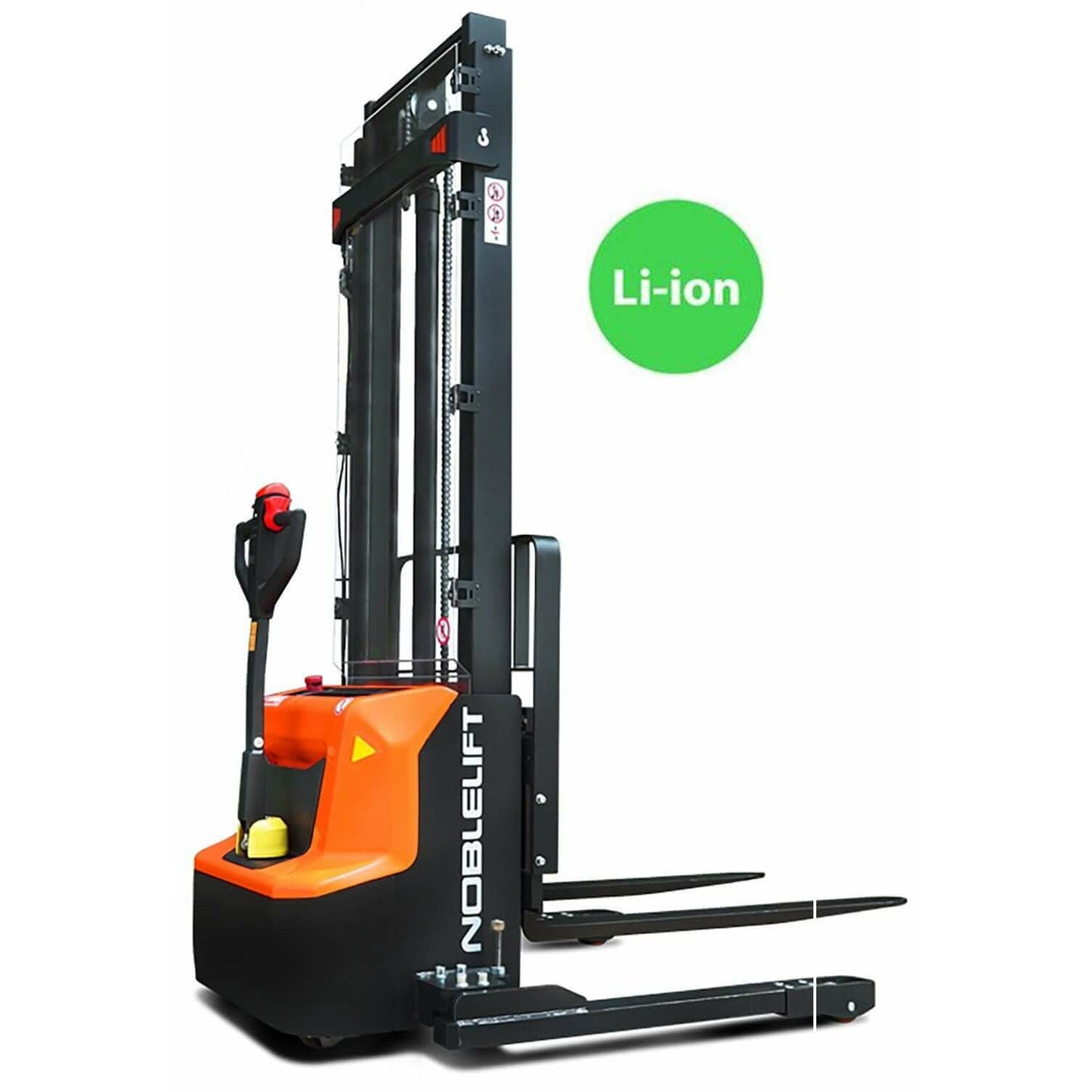

PSE12NSL Lithium Powered Electric Stacker (PSE26NSL)

LITHIUM-POWERED ELECTRIC STACKER

Cutting-edge design Lithium-powered electric stacker
for light & medium stacking applications

STANDARD FEATURES:
American Curtis Travel Controller with CAN-bus Control
24V DC permanent magnetic drive motor

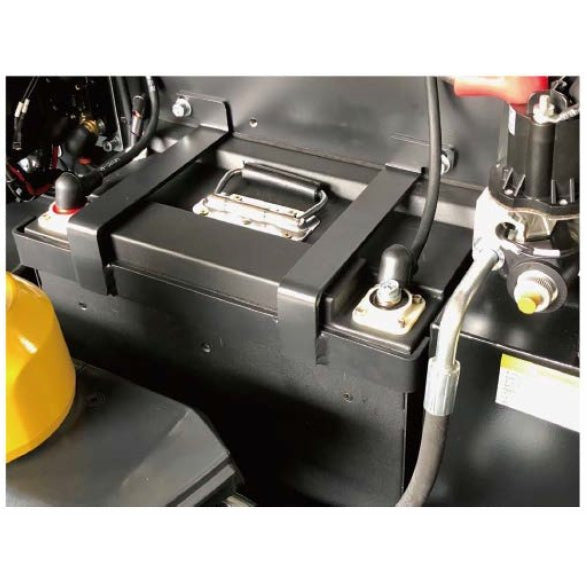

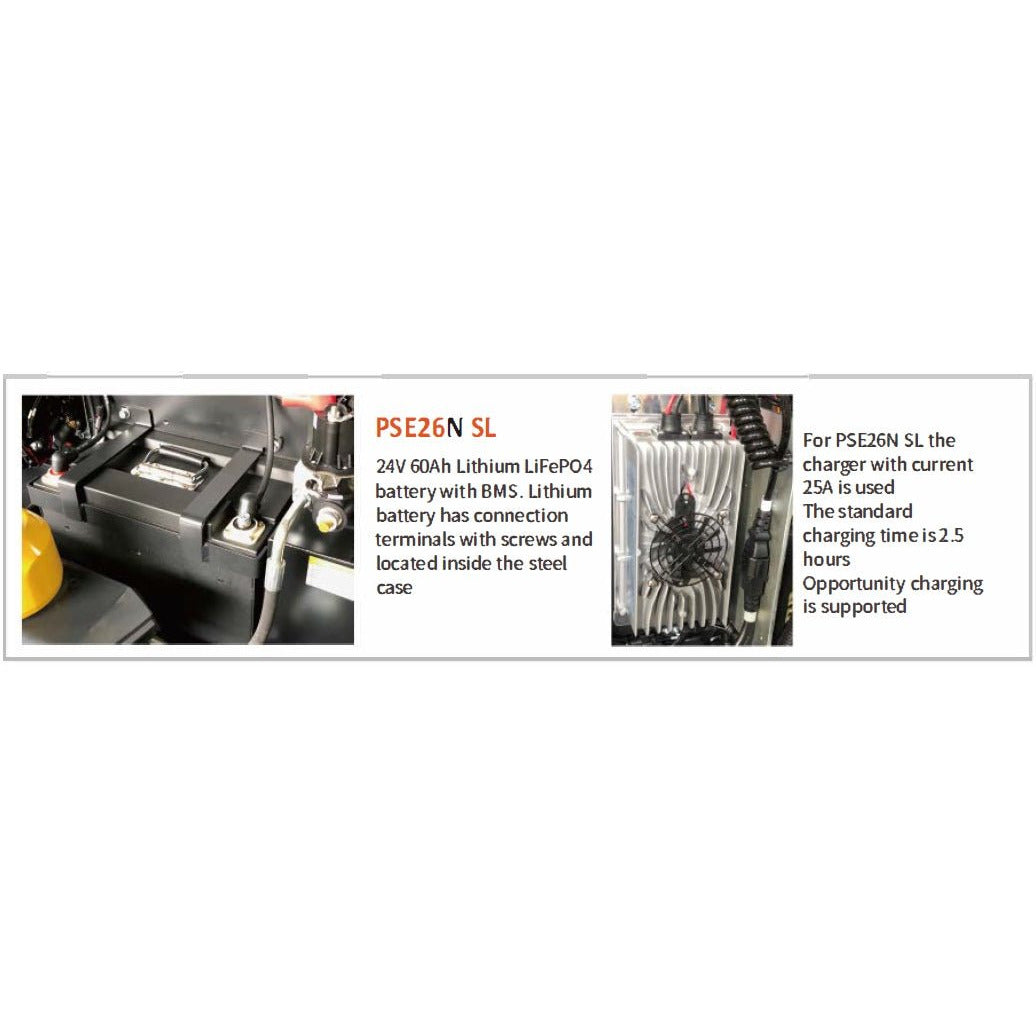

24V/60Ah LFP Lithium Battery with 24V/25A charger
Fast charging 2.5 hours only
Centered motor with excellent traction and stability
Operator protection Plexiglass

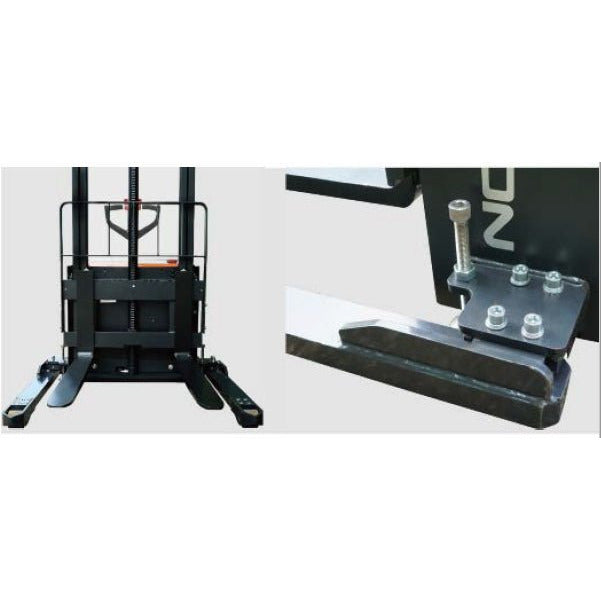

Adjustable base legs I.D. 38.6” to 50”, O.D. 46.2” to 58”
Fork size: 42”L x 10~31.5”W
8.3" x 2.8" polyurethane drive tire
3.3" x 2,8" polyurethane load wheels
Smart handle with Pin-Code Panel limits access to approved personnel
Smart handle with LCD with battery indicator, hour meter as well as fault code
Drive with tiller in vertical position
Ergonomic control handle with horn & emergency belly button
Dual buttery-style thumb control for travelling
Electric Lifting and Lowering Buttons

Travel speed: 2.6mph (unloaded), 2.8mph (fully loaded)
Stability casters standard
Speed reduction in turns standard

Optional 2x12V/85Ah maintenance-free batteries
Optional fork-over type
1-year Chassis warranty parts only, 2 years Lithium battery warranty
