GoLift Equipment Sales

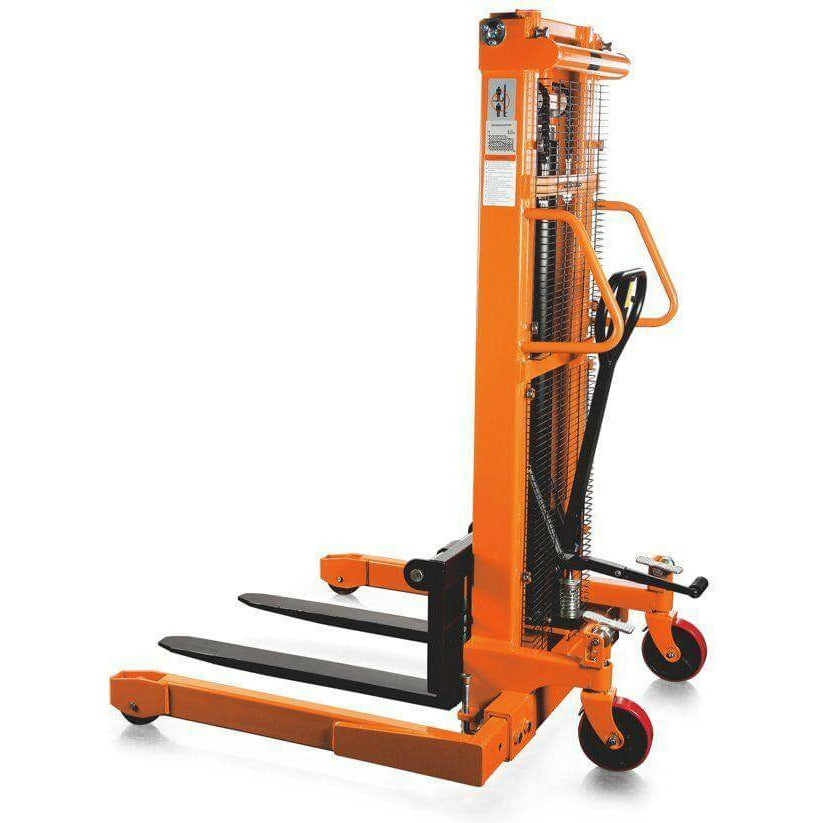

SFH10AG Manual Stacker (SFH22AG)
SFH10AG Manual Stacker (SFH22AG)
Regular price
$2,477.00 USD
Regular price
Sale price
$2,477.00 USD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
The SFH10AG 2,200lb capacity, manual stacker is available in (3) different maximum lift heights and is designed for light-duty lifting of loads, skids, racks and objects. Loads can be lifted by the handle or by a fold-away hydraulic foot pedal. Forks and straddle legs can adjust from side to side to accommodate different skid widths.
This ergonomic stacker is also equipped with an operator protection screen, wheel lock, dual-push handles mounted to the mast at a comfortable height, and a spring-loaded steering handle with comfort grip. Excellent value!
STANDARD FEATURES:
Manually propelled and manual lift
Lift both by foot pedal or the handle
Straddle legs adjust to three (3) positions (set at minimum for shipping)
Adjustable base legs I.D. 36” to 48”, O.D. 43” to 54
36” long forks – 8.5”~33.5” OD adjustment
Operator protection screen
Dual push handles mounted at comfort height level on mast
Ergonomic spring loaded steering handle with comfort grip
2 Polyurethane Swivel Castors Foot pedal parking brake
Minimum fork height 2.75”
Optional maximum lift height 63”/98”/118”
Manually propelled and manual lift
Lift both by foot pedal or the handle
Straddle legs adjust to three (3) positions (set at minimum for shipping)
Adjustable base legs I.D. 36” to 48”, O.D. 43” to 54
36” long forks – 8.5”~33.5” OD adjustment
Operator protection screen
Dual push handles mounted at comfort height level on mast
Ergonomic spring loaded steering handle with comfort grip
2 Polyurethane Swivel Castors Foot pedal parking brake
Minimum fork height 2.75”
Optional maximum lift height 63”/98”/118”
Optional fork-over type or fixed straddle base as well as platform lift available
1 year warranty parts only
