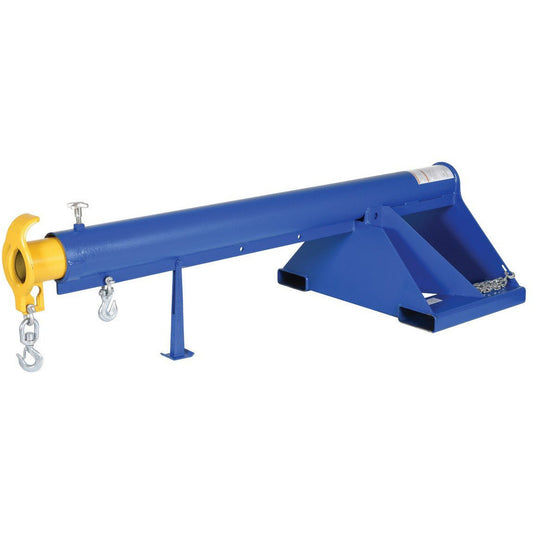

Unique performance, convenience and safety features are built into every Lift Master Boom. Fabricated from structural steel with welding to meet AWS creates a rugged and durable boom that will provide long term service. Telescopic units come with an infinitely adjustable locking screw (except orbit booms which features a locking detent). Fork pockets for 3,000 and 4,000 pound capacity models measure 7-1/2"W x 2-1/2"H usable. Usable fork pockets are 7-1/4"W x 2-1/4"H for 6,000 and 8,000 pound uniform capacity models. A 36" safety restraint secures the boom to the fork truck for safe operation. Each unit includes two lifting hooks.

Carriage Mount Lift Master
These booms are connected and secured to a new or existing fork truck by type 2 carriage mount. Once secured in place, the fork truck can lift and maneuver a variety of items. Powder-coat finish for baked in added toughness

Fork Mounted Lift Master Booms

Model Number


PDF's

Description

Fork Pocket Center

Overall
Extended
Length

Height

Uniform Capacity (lbs)

Wt.
(lbs)

Telescoping Style

LM-1T-3-24

Lift Master Boom

24"

151-1/4"

25-7/8"

3,000

424

LM-OBT-3-24

Orbit Boom

24"

146-5/8"

27-11/16"

3,000

433

LM-1T-4-11

Lift Master Boom

11"

151-1/4"

25-7/8"

4,000

416

LM-1T-4-30

Lift Master Boom

30"

151-1/4"

25-7/8"

4,000

455

LM-1T-4-36

Lift Master Boom

36"

151-1/4"

25-7/8"

4,000

517

LM-1T-4-24

Lift Master Boom

24"

151-1/4"

25-7/8"

4,000

424

LM-OBT-4-30

Orbit Boom

30"

146-5/8"

27-11/16"

4,000

468

LM-OBT-4-36

Orbit Boom

36"

146-5/8"

27-11/16"

4,000

467

LM-OBT-4-24

Orbit Boom

24"

146-5/8"

27-11/16"

4,000

433

LM-HRT-4-24

High-Rise Boom

24"

92-5/8"

79-13/16"

4,000

950

LM-HRT-4-30

High-Rise Boom

30"

92-5/8"

79-13/16"

4,000

905

LM-HRT-4-36

High-Rise Boom

36"

92-5/8"

79-13/16"

4,000

935

LM-EBT-4-11

Economy Boom

11"

151-1/2"

13-7/8"

4,000

333

LM-EBT-4-30

Economy Boom

30"

151-1/2"

13-3/16"

4,000

375

LM-EBT-4-36

Economy Boom

36"

151-1/2"

13-3/16"

4,000

381

LM-EBT-4-24

Economy Boom

24"

151-1/2"

13-1/2"

4,000

333

LM-F15-4-24

Fixed 15 Degrees

24"

147"

33"

4,000

370

LM-1T-6-11

Lift Master Boom

151-1/4"

25-7/8"

6,000

479

LM-1T-6-30

Lift Master Boom

151-1/4"

25-7/8"

6,000

543

LM-1T-6-36

Lift Master Boom

151-1/4"

25-7/8"

6,000

509

LM-1T-6-24

Lift Master Boom

151-1/4"

25-7/8"

6,000

480

LM-OBT-6-30

Orbit Boom

30"

146-5/8"

27-11/16"

6,000

499

LM-OBT-6-36

Orbit Boom

36"

146-5/8"

27-11/16"

6,000

514

LM-OBT-6-24

Orbit Boom

24"

146-5/8"

27-11/16"

6,000

476

LM-HRT-6-30

High-Rise Boom

30"

92-5/8"

79-13/16"

6,000

979

LM-HRT-6-36

High-Rise Boom

36"

92-5/8"

79-13/16"

6,000

1009

LM-HRT-6-24

High-Rise Boom

24"

92-5/8"

79-13/16"

6,000

950

LM-EBT-6-11

Economy Boom

11"

153-1/2"

13-7/8"

6,000

439

LM-EBT-6-30

Economy Boom

30"

153-1/2"

13-3/16"

6,000

409

LM-EBT-6-36

Economy Boom

36"

151-1/2"

13-3/16"

6,000

448

LM-EBT-6-24

Economy Boom

24"

153-1/2"

13-1/2"

6,000

377

LM-1T-8-24

Lift Master Boom

24"

149-1/8"

26-9/16"

8,000

647

LM-1T-8-30

Lift Master Boom

30"

149-1/8"

26-9/16"

8,000

673

LM-1T-8-36

Lift Master Boom

36"

149-1/8"

26-9/16"

8,000

686

LM-OBT-8-24

Orbit Boom

24"

148-1/2"

28-7/8"

8,000

622

LM-OBT-8-30

Orbit Boom

30"

148-1/2"

28-7/8"

8,000

755

LM-OBT-8-36

Orbit Boom

36"

148-1/2"

28-7/8"

8,000

689

LM-EBT-8-30

Economy Boom

30"

149-3/8"

15"

8,000

602

LM-EBT-8-36

Economy Boom

36"

149-3/8"

15"

8,000

638

LM-EBT-8-24

Economy Boom

24"

149-3/8"

15"

8,000

577

Non-Telescoping Style

Model


PDF's

Description

Fork Pocket Center

Overall Extended Length

Height

Uniform Capacity (lbs)

Wt.
(lbs)

LM-1NT-4-11

Lift Master Boom

11"

81-1/2"

24-13/16"

4,000

391

LM-1NT-4-24

Lift Master Boom

24"

81-1/2"

24-13/16"

4,000

333

LM-1NT-4-30

Lift Master Boom

30"

81-1/2"

24-13/16"

4,000

421

LM-1NT-4-36

Lift Master Boom

36"

81-1/2"

24-13/16"

4,000

445

LM-OBNT-4-24

Orbit Boom

24"

80-7/8"

26-5/8"

4,000

337

LM-OBNT-4-30

Orbit Boom

30"

80-7/8"

26-5/8"

4,000

458

LM-OBNT-4-36

Orbit Boom

36"

80-7/8"

26-5/8"

4,000

467

LM-HRNT-4-24

High-Rise Boom

24"

50-3/8"

78-9/16"

4,000

810

LM-HRNT-4-30

High-Rise Boom

30"

50-3/8"

78-9/16"

4,000

644

LM-HRNT-4-36

High-Rise Boom

36"

50-3/8"

78-9/16"

4,000

661

LM-EBNT-4-11

Economy Boom

11"

81-3/4"

13-5/16"

4,000

369

LM-EBNT-4-24

Economy Boom

24"

81-5/8"

13-5/16"

4,000

258

LM-EBNT-4-30

Economy Boom

30"

81-3/4"

13-5/16"

4,000

269

LM-EBNT-4-36

Economy Boom

36"

81-3/4"

13-5/16"

4,000

274

LM-1NT-6-11

Lift Master Boom

11"

81-1/2"

24-13/16"

6,000

461

LM-1NT-6-24

Lift Master Boom

24"

81-1/2"

24-13/16"

6,000

478

LM-1NT-6-30

Lift Master Boom

30"

81-1/2"

24-13/16"

6,000

511

LM-1NT-6-36

Lift Master Boom

36"

81-1/2"

24-13/16"

6,000

544

LM-OBNT-6-24

Orbit Boom

24"

80-7/8"

26-5/8"

6,000

391

LM-OBNT-6-30

Orbit Boom

30"

80-7/8"

26-5/8"

6,000

635

LM-OBNT-6-36

Orbit Boom

36"

80-7/8"

26-5/8"

6,000

677

LM-HRNT-6-24

High-Rise Boom

24"

50-3/8"

78-9/16"

6,000

697

LM-HRNT-6-30

High-Rise Boom

30"

50-3/8"

78-9/16"

6,000

722

LM-HRNT-6-36

High-Rise Boom

36"

50-3/8"

78-9/16"

6,000

755

LM-EBNT-6-11

Economy Boom

11"

81-3/4"

13-5/16"

6,000

285

LM-EBNT-6-24

Economy Boom

24"

81-5/8"

13-5/16"

6,000

291

LM-EBNT-6-30

Economy Boom

30"

81-3/4"

13-5/16"

6,000

312

LM-EBNT-6-36

Economy Boom

36"

81-3/4"

13-5/16"

6,000

341

LM-1NT-8-24

Lift Master Boom

24"

80-1/8"

23-1/2"

8,000

615

LM-1NT-8-30

Lift Master Boom

30"

80-1/8"

23-1/2"

8,000

604

LM-1NT-8-36

Lift Master Boom

36"

80-1/8"

23-1/2"

8,000

622

LM-OBNT-8-24

Orbit Boom

24"

79-1/2"

25-1/8"

8,000

476

LM-OBNT-8-30

Orbit Boom

30"

79-1/2"

25-1/8"

8,000

804

LM-OBNT-8-36

Orbit Boom

36"

79-1/2"

25-1/8"

8,000

814

LM-EBNT-8-24

Economy Boom

24"

80-3/8"

11-1/2"

8,000

418

LM-EBNT-8-30

Economy Boom

30"

80-3/8"

11-1/2"

8,000

634

LM-EBNT-8-36

Economy Boom

36"

80-3/8"

11-1/2"

8,000

658

Carriage Mount Lift Master Booms

Model


PDF's

Description

Width

Overall Extended Length

Height

Uniform Capacity (lbs)

Wt.
(lbs)

LM-CM2-EBT-4

Carriage Mount Class 2 Boom

12"

144"

27-1/8"

4,000

375

LM-CM2-EBT-6

Carriage Mount Class 2 Boom

12"

144"

27-1/8"

6,000

409

Hydraulic Telescoping Boom

Model


PDF's

Description

Fork Pocket Center

Overall Extended Length

Height

Uniform Capacity (lbs)

Wt.
(lbs)

LM-1T-8-24-HBE-TP

Hydraulic Telescoping Boom

24"

144-3/4"

24-1/2"

8,000 (2,000 movable)

714

LM-1T-8-24-HBE-DC

Hydraulic Telescoping Boom

24"

144-3/4"

24-1/2"

8,000 (2,000 movable)

858

KEY: = Approval Drawing -- = Warranty -- = Testing Certificate
