SERIES: LM - Lift Master Booms
SERIES: LM - Lift Master Booms
Regular price
$0.00 CAD
Regular price
Sale price
$0.00 CAD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability

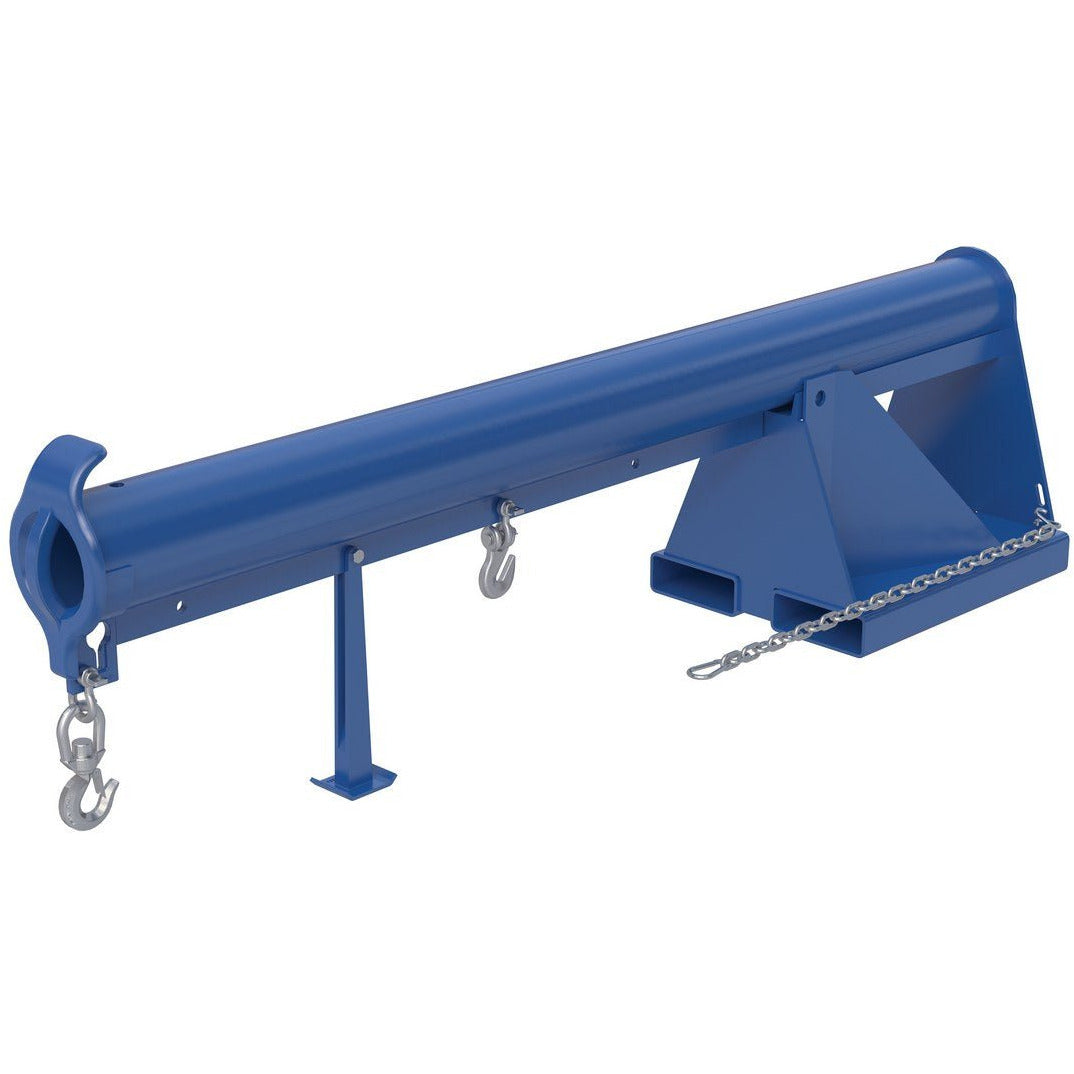

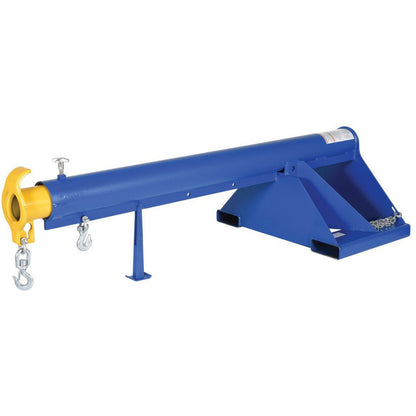

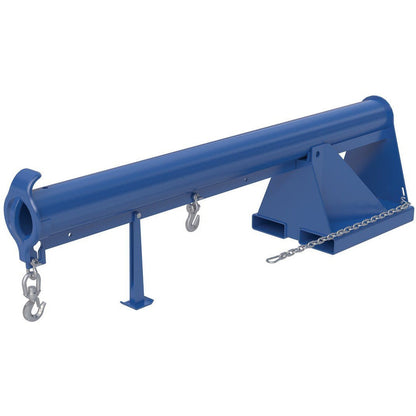

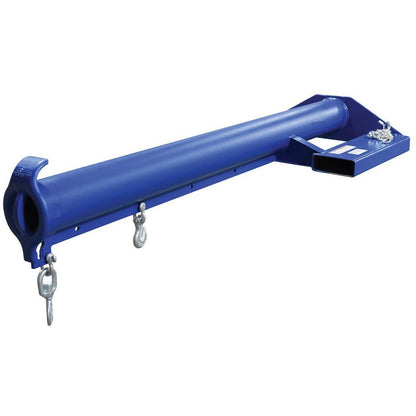

Unique performance, convenience and safety features are built into every Lift Master Boom. Fabricated from structural steel with welding to meet AWS creates a rugged and durable boom that will provide long term service. Telescopic units come with an infinitely adjustable locking screw (except orbit booms which features a locking detent). Fork pockets for 3,000 and 4,000 pound capacity models measure 7-1/2"W x 2-1/2"H usable. Usable fork pockets are 7-1/4"W x 2-1/4"H for 6,000 and 8,000 pound uniform capacity models. A 36" safety restraint secures the boom to the fork truck for safe operation. Each unit includes two lifting hooks.
Carriage Mount Lift Master
These booms are connected and secured to a new or existing fork truck by type 2 carriage mount. Once secured in place, the fork truck can lift and maneuver a variety of items. Powder-coat finish for baked in added toughness
| Fork Mounted Lift Master Booms | |||||||||
| Model Number | Image | PDF's | Description | Fork Pocket Center | Overall Extended Length |
Height | Uniform Capacity (lbs) | Wt. (lbs) |
|
|
Telescoping Style |
|||||||||
| LM-1T-3-24 |  |

|
Lift Master Boom | 24" | 151-1/4" | 25-7/8" | 3,000 | 424 | |
| LM-OBT-3-24 |  |
|
Orbit Boom | 24" | 146-5/8" | 27-11/16" | 3,000 | 433 | |
| LM-1T-4-11 |  |
|
Lift Master Boom | 11" | 151-1/4" | 25-7/8" | 4,000 | 416 | |
| LM-1T-4-30 |  |
|
Lift Master Boom | 30" | 151-1/4" | 25-7/8" | 4,000 | 455 | |
| LM-1T-4-36 |  |
|
Lift Master Boom | 36" | 151-1/4" | 25-7/8" | 4,000 | 517 | |
| LM-1T-4-24 |  |
|
Lift Master Boom | 24" | 151-1/4" | 25-7/8" | 4,000 | 424 | |
| LM-OBT-4-30 |  |
|
Orbit Boom | 30" | 146-5/8" | 27-11/16" | 4,000 | 468 | |
| LM-OBT-4-36 |  |
|
Orbit Boom | 36" | 146-5/8" | 27-11/16" | 4,000 | 467 | |
| LM-OBT-4-24 |  |
|
Orbit Boom | 24" | 146-5/8" | 27-11/16" | 4,000 | 433 | |
| LM-HRT-4-24 |  |
|
High-Rise Boom | 24" | 92-5/8" | 79-13/16" | 4,000 | 950 | |
| LM-HRT-4-30 |  |
|
High-Rise Boom | 30" | 92-5/8" | 79-13/16" | 4,000 | 905 | |
| LM-HRT-4-36 |  |
|
High-Rise Boom | 36" | 92-5/8" | 79-13/16" | 4,000 | 935 | |
| LM-EBT-4-11 |  |
|
Economy Boom | 11" | 151-1/2" | 13-7/8" | 4,000 | 333 | |
| LM-EBT-4-30 |  |
|
Economy Boom | 30" | 151-1/2" | 13-3/16" | 4,000 | 375 | |
| LM-EBT-4-36 |  |
|
Economy Boom | 36" | 151-1/2" | 13-3/16" | 4,000 | 381 | |
| LM-EBT-4-24 |  |
|
Economy Boom | 24" | 151-1/2" | 13-1/2" | 4,000 | 333 | |
| LM-F15-4-24 |  |
|
Fixed 15 Degrees | 24" | 147" | 33" | 4,000 | 370 | |
| LM-1T-6-11 |  |
|
Lift Master Boom | 11 | 151-1/4" | 25-7/8" | 6,000 | 479 | |
| LM-1T-6-30 |  |
|
Lift Master Boom | 30 | 151-1/4" | 25-7/8" | 6,000 | 543 | |
| LM-1T-6-36 |  |
|
Lift Master Boom | 36 | 151-1/4" | 25-7/8" | 6,000 | 509 | |
| LM-1T-6-24 |  |
|
Lift Master Boom | 24 | 151-1/4" | 25-7/8" | 6,000 | 480 | |
| LM-OBT-6-30 |  |
|
Orbit Boom | 30" | 146-5/8" | 27-11/16" | 6,000 | 499 | |
| LM-OBT-6-36 |  |
|
Orbit Boom | 36" | 146-5/8" | 27-11/16" | 6,000 | 514 | |
| LM-OBT-6-24 |  |
|
Orbit Boom | 24" | 146-5/8" | 27-11/16" | 6,000 | 476 | |
| LM-HRT-6-30 |  |
|
High-Rise Boom | 30" | 92-5/8" | 79-13/16" | 6,000 | 979 | |
| LM-HRT-6-36 |  |
|
High-Rise Boom | 36" | 92-5/8" | 79-13/16" | 6,000 | 1009 | |
| LM-HRT-6-24 |  |
|
High-Rise Boom | 24" | 92-5/8" | 79-13/16" | 6,000 | 950 | |
| LM-EBT-6-11 |
|
|
Economy Boom | 11" | 153-1/2" | 13-7/8" | 6,000 | 439 | |
| LM-EBT-6-30 |  |
|
Economy Boom | 30" | 153-1/2" | 13-3/16" | 6,000 | 409 | |
| LM-EBT-6-36 |  |
|
Economy Boom | 36" | 151-1/2" | 13-3/16" | 6,000 | 448 | |
| LM-EBT-6-24 |  |
|
Economy Boom | 24" | 153-1/2" | 13-1/2" | 6,000 | 377 | |
| LM-1T-8-24 |  |
|
Lift Master Boom | 24" | 149-1/8" | 26-9/16" | 8,000 | 647 | |
| LM-1T-8-30 |  |
|
Lift Master Boom | 30" | 149-1/8" | 26-9/16" | 8,000 | 673 | |
| LM-1T-8-36 |  |
|
Lift Master Boom | 36" | 149-1/8" | 26-9/16" | 8,000 | 686 | |
| LM-OBT-8-24 |  |
|
Orbit Boom | 24" | 148-1/2" | 28-7/8" | 8,000 | 622 | |
| LM-OBT-8-30 |  |
|
Orbit Boom | 30" | 148-1/2" | 28-7/8" | 8,000 | 755 | |
| LM-OBT-8-36 |  |
|
Orbit Boom | 36" | 148-1/2" | 28-7/8" | 8,000 | 689 | |
| LM-EBT-8-30 |  |
|
Economy Boom | 30" | 149-3/8" | 15" | 8,000 | 602 | |
| LM-EBT-8-36 |  |
|
Economy Boom | 36" | 149-3/8" | 15" | 8,000 | 638 | |
| LM-EBT-8-24 |  |
|
Economy Boom | 24" | 149-3/8" | 15" | 8,000 | 577 | |
| Non-Telescoping Style | |||||||||
| Model | Image | PDF's | Description | Fork Pocket Center | Overall Extended Length | Height | Uniform Capacity (lbs) | Wt. (lbs) |
|
| LM-1NT-4-11 |  |
|
Lift Master Boom | 11" | 81-1/2" | 24-13/16" | 4,000 | 391 | |
| LM-1NT-4-24 |  |
|
Lift Master Boom | 24" | 81-1/2" | 24-13/16" | 4,000 | 333 | |
| LM-1NT-4-30 |  |
|
Lift Master Boom | 30" | 81-1/2" | 24-13/16" | 4,000 | 421 | |
| LM-1NT-4-36 |  |
|
Lift Master Boom | 36" | 81-1/2" | 24-13/16" | 4,000 | 445 | |
| LM-OBNT-4-24 |  |
|
Orbit Boom | 24" | 80-7/8" | 26-5/8" | 4,000 | 337 | |
| LM-OBNT-4-30 |  |
|
Orbit Boom | 30" | 80-7/8" | 26-5/8" | 4,000 | 458 | |
| LM-OBNT-4-36 |  |
|
Orbit Boom | 36" | 80-7/8" | 26-5/8" | 4,000 | 467 | |
| LM-HRNT-4-24 |  |
|
High-Rise Boom | 24" | 50-3/8" | 78-9/16" | 4,000 | 810 | |
| LM-HRNT-4-30 |  |
|
High-Rise Boom | 30" | 50-3/8" | 78-9/16" | 4,000 | 644 | |
| LM-HRNT-4-36 | |
|
High-Rise Boom | 36" | 50-3/8" | 78-9/16" | 4,000 | 661 | |
| LM-EBNT-4-11 |  |
|
Economy Boom | 11" | 81-3/4" | 13-5/16" | 4,000 | 369 | |
| LM-EBNT-4-24 |  |
|
Economy Boom | 24" | 81-5/8" | 13-5/16" | 4,000 | 258 | |
| LM-EBNT-4-30 |  |
|
Economy Boom | 30" | 81-3/4" | 13-5/16" | 4,000 | 269 | |
| LM-EBNT-4-36 |  |
|
Economy Boom | 36" | 81-3/4" | 13-5/16" | 4,000 | 274 | |
| LM-1NT-6-11 |
|
|
Lift Master Boom | 11" | 81-1/2" | 24-13/16" | 6,000 | 461 | |
| LM-1NT-6-24 |  |
|
Lift Master Boom | 24" | 81-1/2" | 24-13/16" | 6,000 | 478 | |
| LM-1NT-6-30 |  |
|
Lift Master Boom | 30" | 81-1/2" | 24-13/16" | 6,000 | 511 | |
| LM-1NT-6-36 |  |
|
Lift Master Boom | 36" | 81-1/2" | 24-13/16" | 6,000 | 544 | |
| LM-OBNT-6-24 |
|
|
Orbit Boom | 24" | 80-7/8" | 26-5/8" | 6,000 | 391 | |
| LM-OBNT-6-30 |  |
|
Orbit Boom | 30" | 80-7/8" | 26-5/8" | 6,000 | 635 | |
| LM-OBNT-6-36 |  |
|
Orbit Boom | 36" | 80-7/8" | 26-5/8" | 6,000 | 677 | |
| LM-HRNT-6-24 |  |
|
High-Rise Boom | 24" | 50-3/8" | 78-9/16" | 6,000 | 697 | |
| LM-HRNT-6-30 |  |
|
High-Rise Boom | 30" | 50-3/8" | 78-9/16" | 6,000 | 722 | |
| LM-HRNT-6-36 |  |
|
High-Rise Boom | 36" | 50-3/8" | 78-9/16" | 6,000 | 755 | |
| LM-EBNT-6-11 |  |
|
Economy Boom | 11" | 81-3/4" | 13-5/16" | 6,000 | 285 | |
| LM-EBNT-6-24 |  |
|
Economy Boom | 24" | 81-5/8" | 13-5/16" | 6,000 | 291 | |
| LM-EBNT-6-30 |  |
|
Economy Boom | 30" | 81-3/4" | 13-5/16" | 6,000 | 312 | |
| LM-EBNT-6-36 |  |
|
Economy Boom | 36" | 81-3/4" | 13-5/16" | 6,000 | 341 | |
| LM-1NT-8-24 |  |
|
Lift Master Boom | 24" | 80-1/8" | 23-1/2" | 8,000 | 615 | |
| LM-1NT-8-30 |  |
|
Lift Master Boom | 30" | 80-1/8" | 23-1/2" | 8,000 | 604 | |
| LM-1NT-8-36 |  |
|
Lift Master Boom | 36" | 80-1/8" | 23-1/2" | 8,000 | 622 | |
| LM-OBNT-8-24 |  |
|
Orbit Boom | 24" | 79-1/2" | 25-1/8" | 8,000 | 476 | |
| LM-OBNT-8-30 |  |
|
Orbit Boom | 30" | 79-1/2" | 25-1/8" | 8,000 | 804 | |
| LM-OBNT-8-36 |  |
|
Orbit Boom | 36" | 79-1/2" | 25-1/8" | 8,000 | 814 | |
| LM-EBNT-8-24 |  |
|
Economy Boom | 24" | 80-3/8" | 11-1/2" | 8,000 | 418 | |
| LM-EBNT-8-30 |  |
|
Economy Boom | 30" | 80-3/8" | 11-1/2" | 8,000 | 634 | |
| LM-EBNT-8-36 |  |
|
Economy Boom | 36" | 80-3/8" | 11-1/2" | 8,000 | 658 | |
| Carriage Mount Lift Master Booms | |||||||||
| Model | Image | PDF's | Description | Width | Overall Extended Length | Height | Uniform Capacity (lbs) | Wt. (lbs) |
|
| LM-CM2-EBT-4 |  |
|
Carriage Mount Class 2 Boom | 12" | 144" | 27-1/8" | 4,000 | 375 | |
| LM-CM2-EBT-6 |  |
|
Carriage Mount Class 2 Boom | 12" | 144" | 27-1/8" | 6,000 | 409 | |
| Hydraulic Telescoping Boom | |||||||||
| Model | Image | PDF's | Description | Fork Pocket Center | Overall Extended Length | Height | Uniform Capacity (lbs) | Wt. (lbs) |
|
| LM-1T-8-24-HBE-TP |  |
|
Hydraulic Telescoping Boom | 24" | 144-3/4" | 24-1/2" | 8,000 (2,000 movable) | 714 | |
| LM-1T-8-24-HBE-DC |  |
|
Hydraulic Telescoping Boom | 24" | 144-3/4" | 24-1/2" | 8,000 (2,000 movable) | 858 | |
KEY: = Approval Drawing --
= Warranty -- = Testing Certificate
