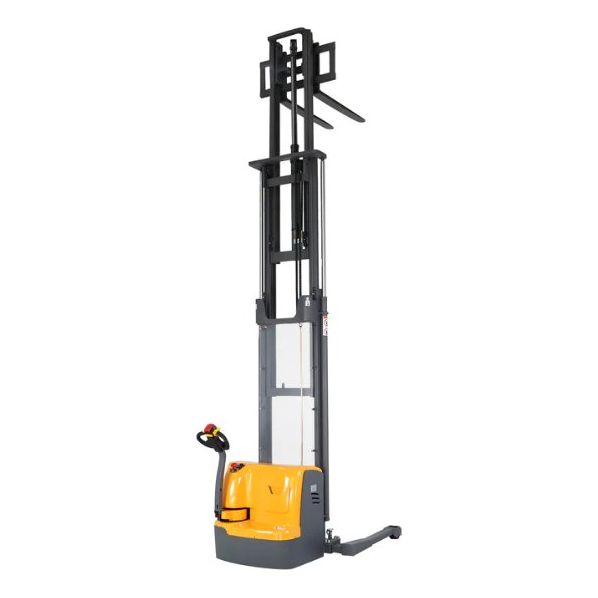

A-3030 Xilin Apollolift Powered Forklift Full Electric Walkie Stacker 3300 lbs Cap. 220"Lifting

Apollolift Powered Forklift Full Electric Walkie Stacker 3300 lbs Cap. 220"Lifting A-3030

• 1,200-watt drive motor, 2,200-watt lift motor.
• Advanced AC control system.
• Stepless speed control.
• Forks are adjustable to fit most pallets.
• Curtis (US Brand) Controller Famous.
• German brand handle tiller.
• The multi-function display shows the working hours, battery status and low-voltage protection.

DIMENSIONS

• Overall Length：82.5"
• Overall width：46.5"-62.3"
• Recommended Aisle Width：98.4"
• Turning Radius：65.1"
• Load center：23.6"

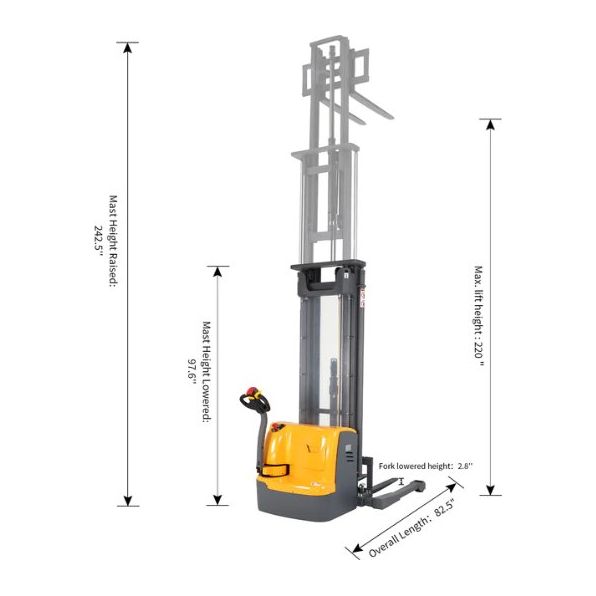

MAST

• Mast Height Lowered：97.6''
• Max.Lifting height：220''
• Mast Height Raised：242.5''
• Free Lifting height: 76.3''

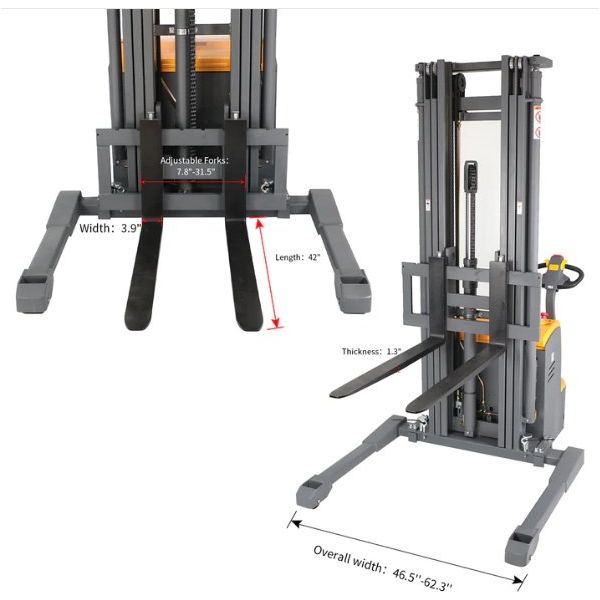

FORKS

• Thickness：1.3"
• Width：3.9"
• Length：42"
• Adjustable Forks：7.8-31.5"
• Lowered Height：2.8"

SPEED

• Travel Speed(laden/unladen)：3.6/3.7 mile/h
• Lifting Speed(laden/unladen)：3.5/6.3 inch/s
• Lowering Speed(laden/unladen)：5.9/6.3 inch/s

FEATURES

• The capacity is 880lbs when lifting to 220''
• Gradeability(laden/unladen): 6%/15%.
• 8 hours service per charge with strong power lead-acid battery capacity 24V/200AH.
• 8-10 hours charging time.
• Long handle structure makes it steering light and flexible.
• Vertical driving wheel, driving efficiency, easy installation& maintenance.
• AC frequency conversion traction motor, compact structure, good performance.
• With emergency stop switch and electricity lock button for safety.

SPECIFICATIONS

• Not explosion proof.
• This forklift is designed to be used on flat ground, avoiding uneven grounds with potholes or large ramp.
• Normal Ambient temperature shall not be higher than +104°F and no lower than -13°F.

• Fully charge battery before use to avoid damaging cells.
• Charger plugs into standard 110V-120V outlets.
• Charge the forklift once a month even it's not in use.
