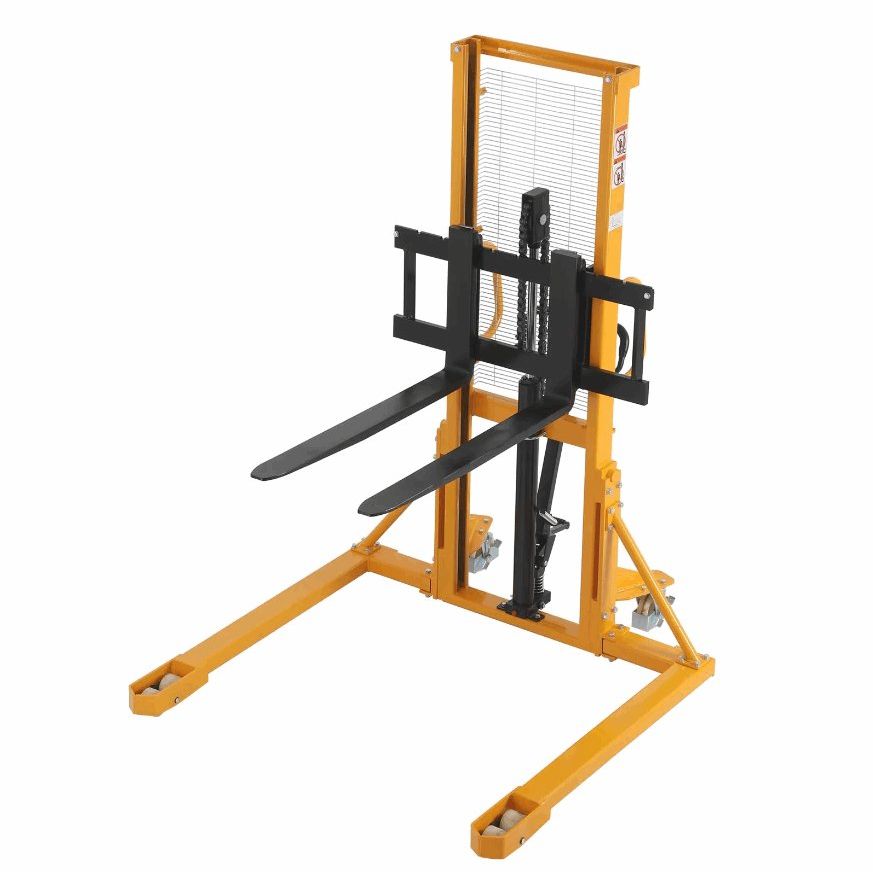

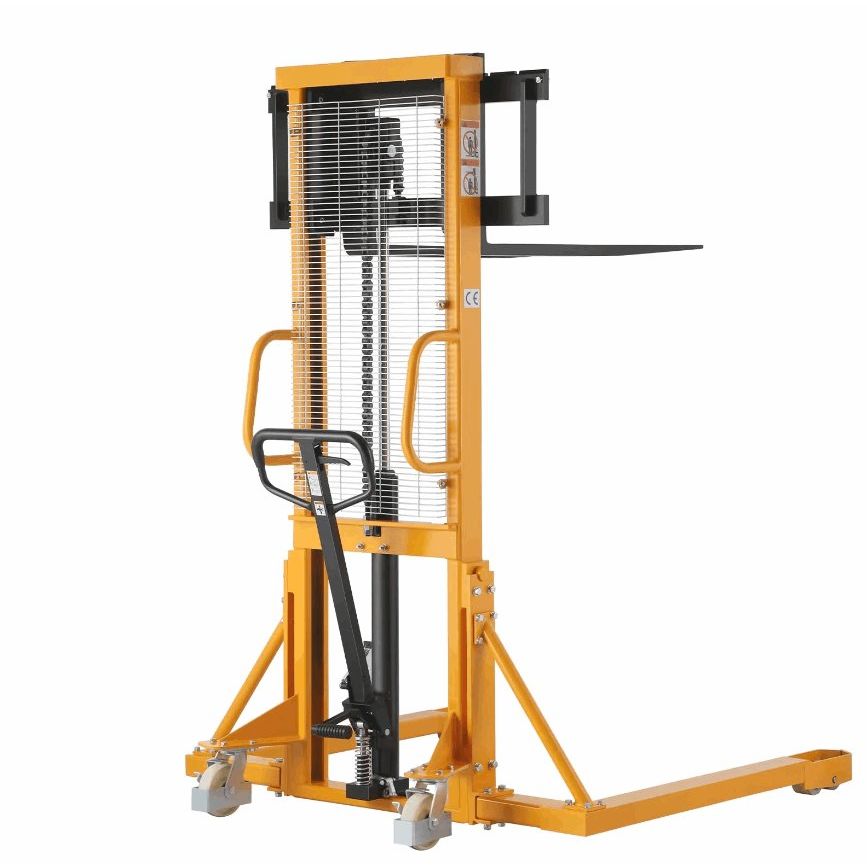

Apollo A-3005 Straddle Legs 2200lbs Cap. 63" Lift Height

Straddle Legs 2200lbs Cap. 63" Lift Height

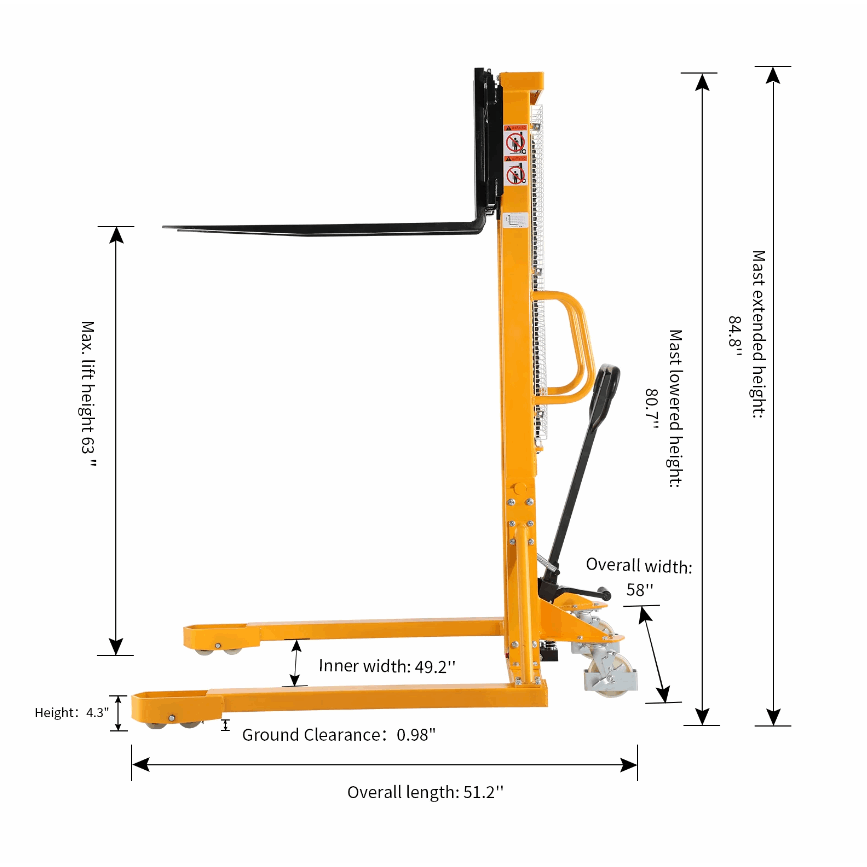

DIMENSIONS:

• Overall width: 58''
• Overall length: 51.2''
• Load center: 19.7''
• Recommended Aisle Width: 77.7"
• Turning radius: 47.2''

MAST:

• Lifting height: 63''
• Mast lowered height: 80.7''
• Mast extended height: 84.8''

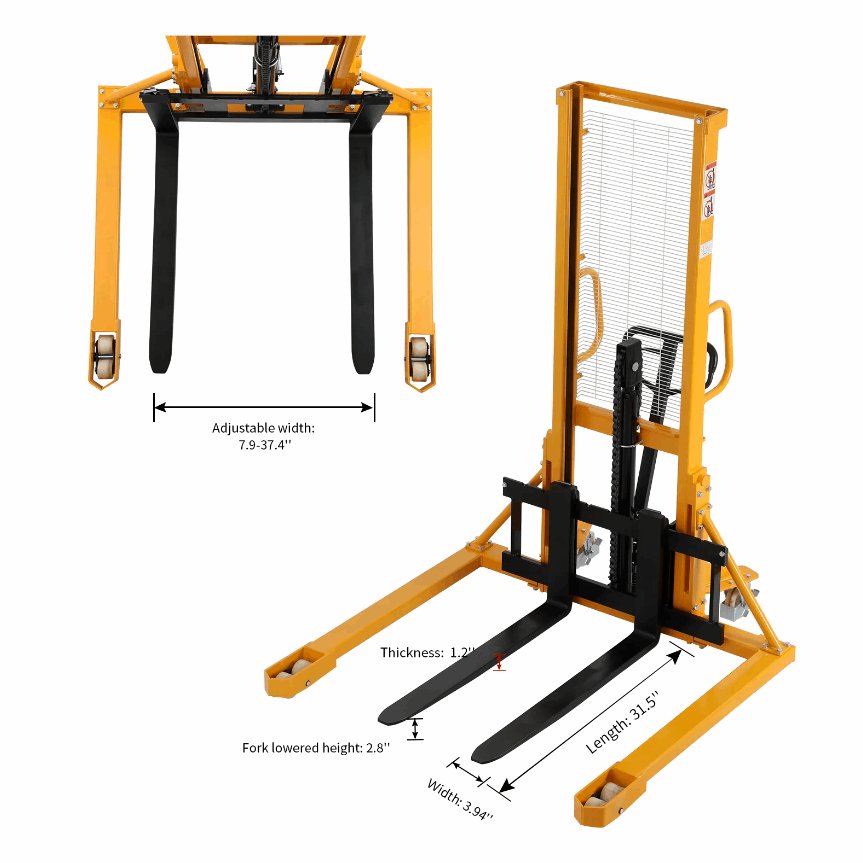

FORKS:

• Adjustable width: 7.9-37.4''
• Thickness: 1.2''
• Width: 3.94''
• Length: 31.5''
• Fork lowered height: 2.8''

STRADDLE LEGS:

• Inner width: 49.2''
• Height: 4.3''

FEATURES:

• Foot Operated Pump: Lift Height nearly 1'' per stroke
