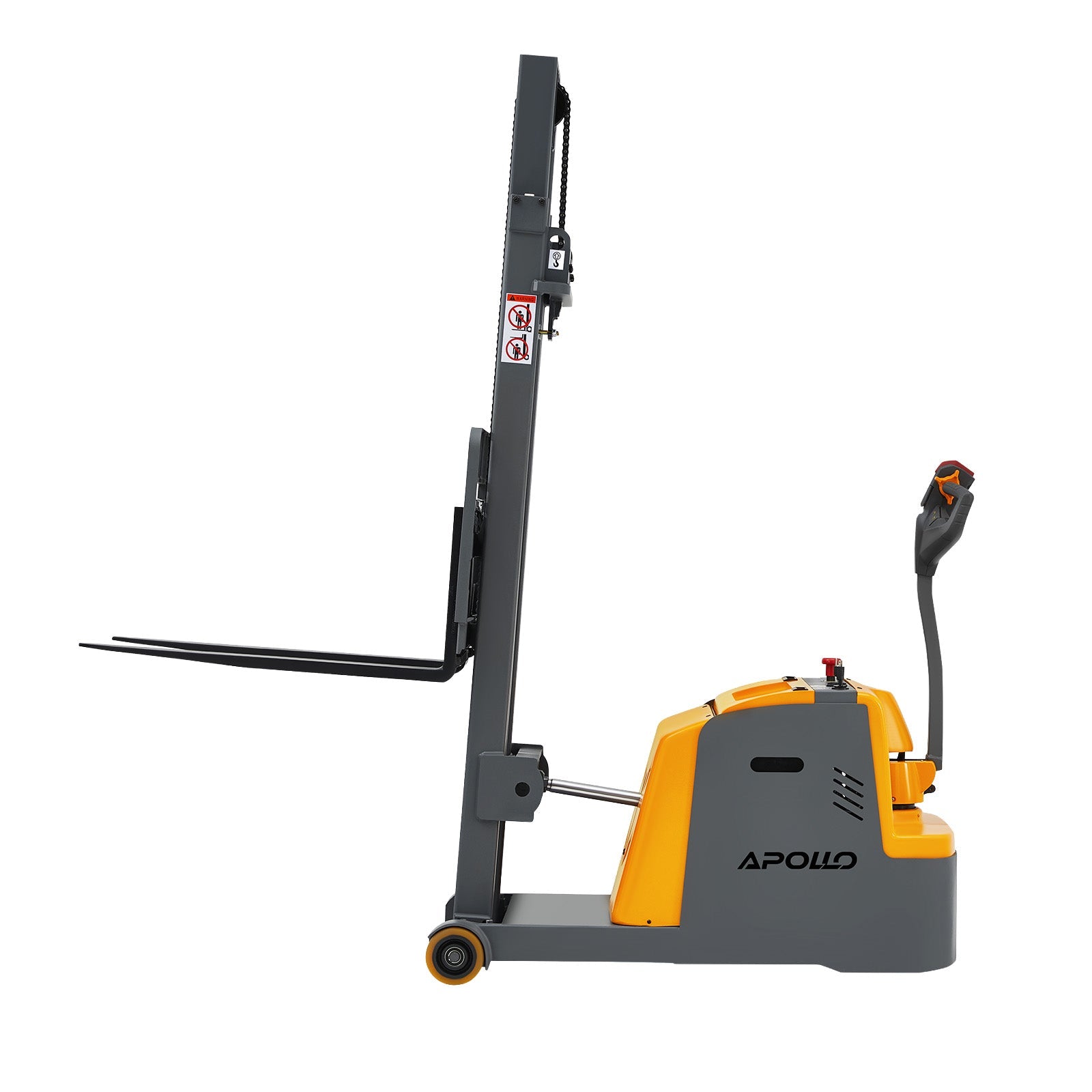

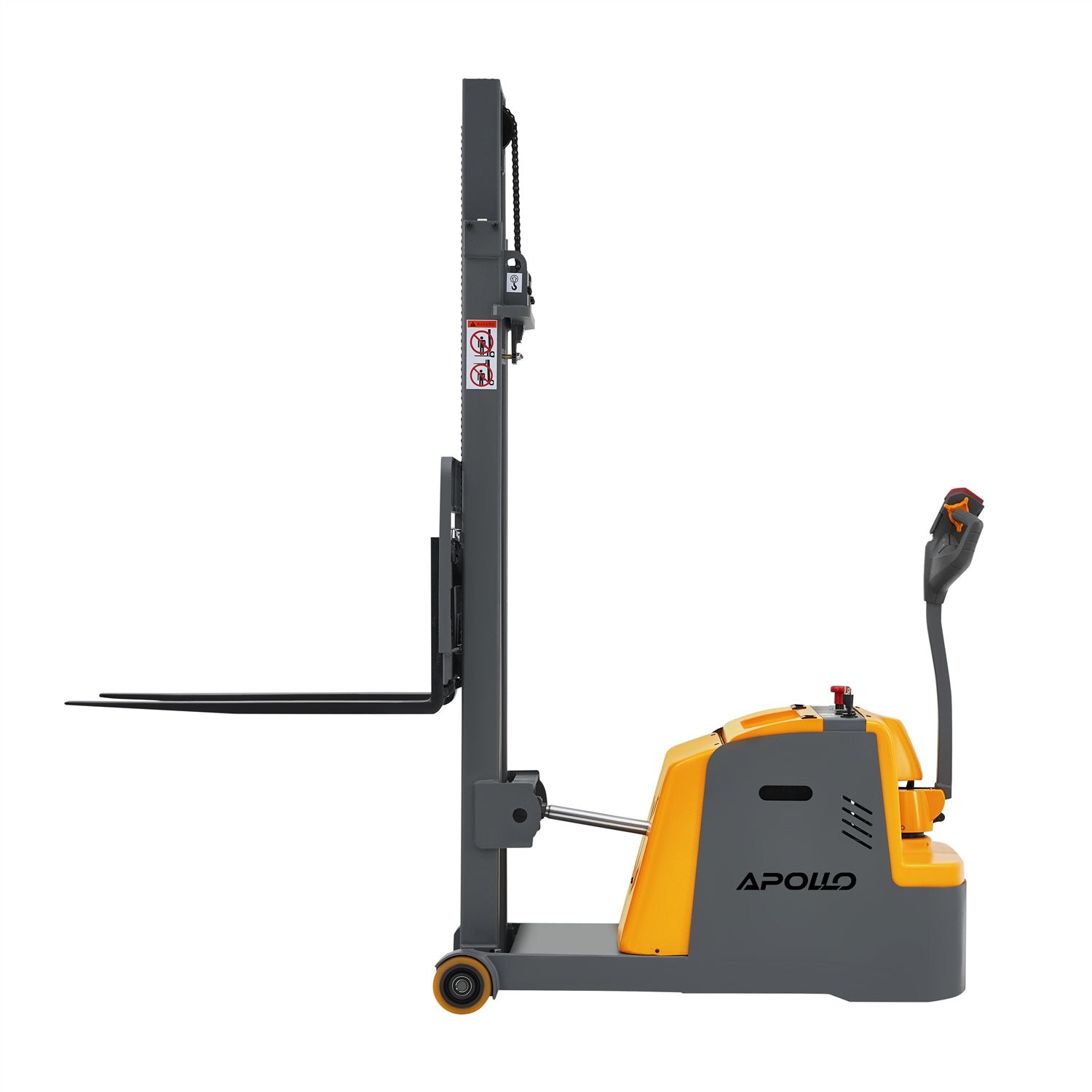

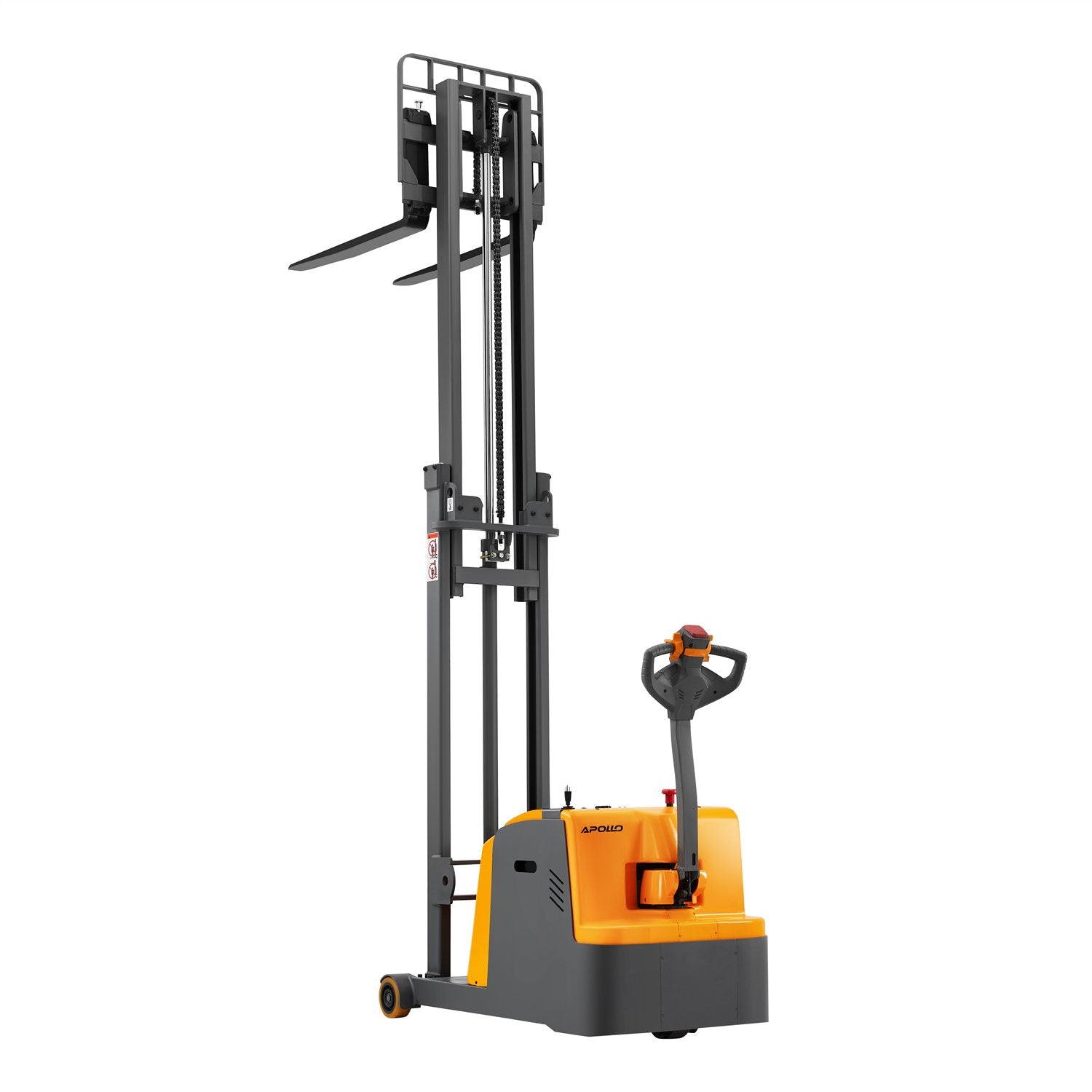

The A-3040 counterbalanced electric stacker uses a counterbalanced design with no straddle legs, so it works with closed-bottom pallets, stillages and non-standard loads up to 2200lb to 118in. Powered lift and drive make quick work of tight, mixed-load environments.
Key Features
650-watt drive motor, 2,200-watt lift motor.
No straddle legs to obstruct close approach to racks and trucks.
Upright walking function, especially suitable for narrow aisles.
Quick wheel replacement thanks to the upper horizontal structure design.
4-5 hours service per charge: two 12-volt, 125 Ah GEL batteries.
110V built-in charger.

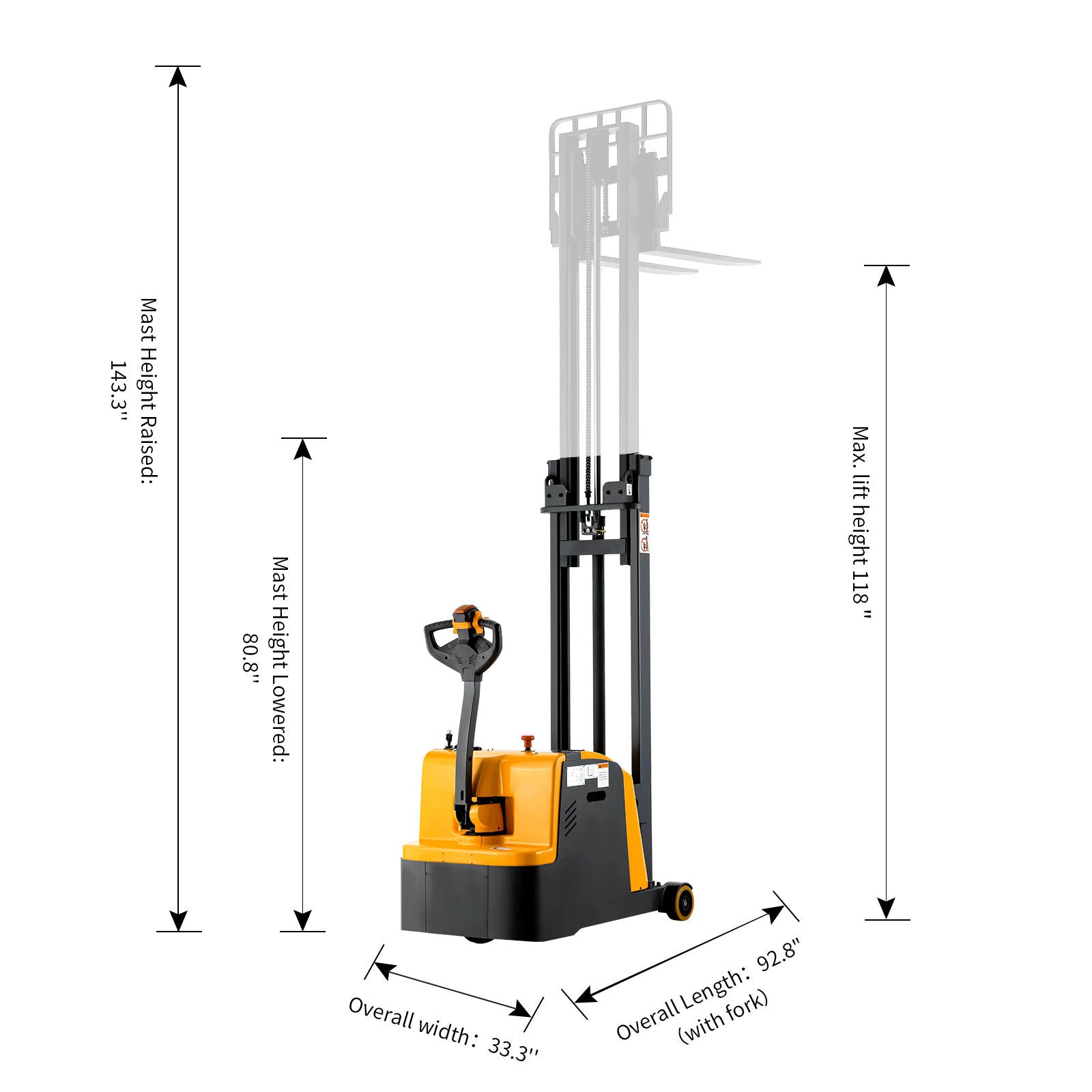

Overall Length: 92.7"
Overall Width: 33.3"
Specifications
Capacity: 2200lb
Lift Height: 118in

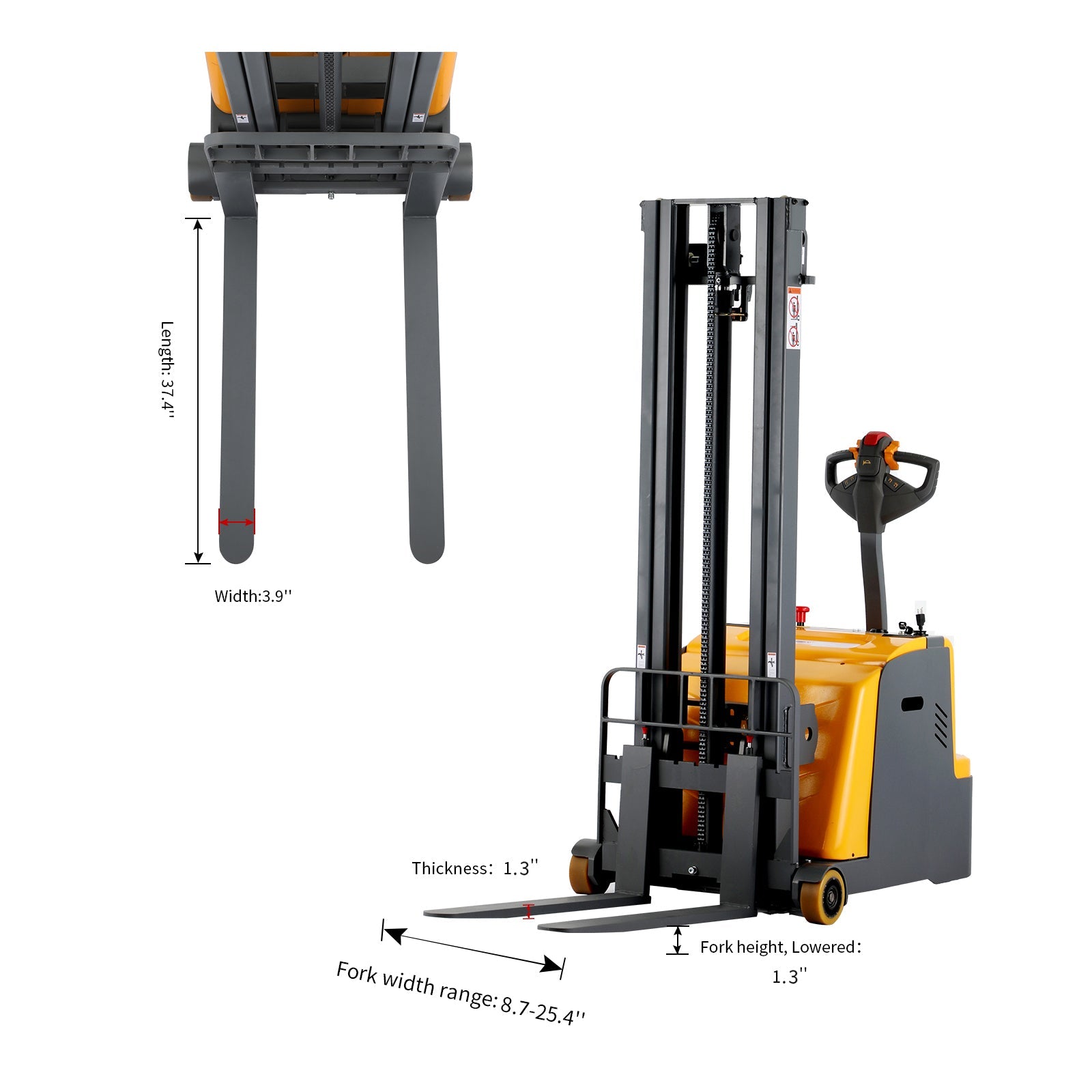

Fork Length: 37.4in
Battery: Gel Battery: 24V/125Ah
Charger: 10A (Built-in)
