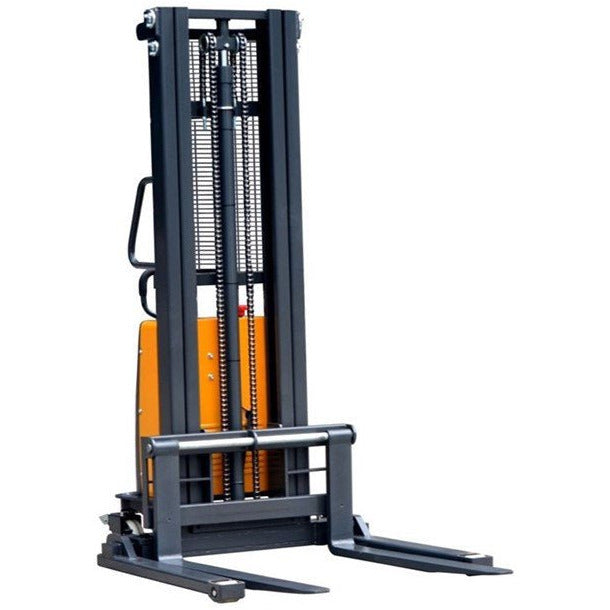

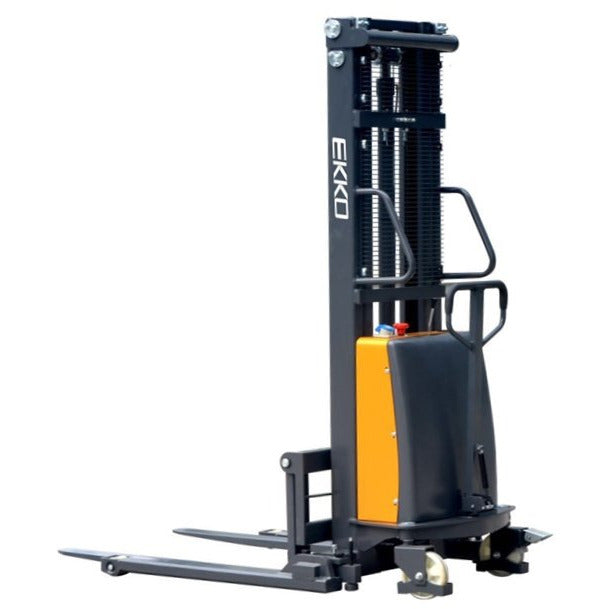

EKKO EA15B Semi-Electric Straddle Stacker 3300lbs. Cap., 119.4" Height
EKKO EA15B Semi-Electric Straddle Stacker 3300lbs. Cap., 119.4" Height
The EA15B Ekko Semi-Electric Straddle Stacker is designed with the combination of the versatility of forklift and a pallet stacker. It is ideal for loading and unloading trucks, loading docks, stock rooms, manufacturing floors and warehousing.
Ekko Semi-Electric Straddle Stacker means unit has electric lift, manual push pull. Quick ROI if you are looking for a high quality unit to move pallets around in your warehouse. Save tailgate fees offloading your own pallets. Unit comes with battery and onboard 110 volt charger
The Ekko Semi-Electric Straddle Stacker is made from high quality steel and components with durable quality drives to withstand any terrain, usage, impact and directional changes for the use of any application with confidence and assurance.

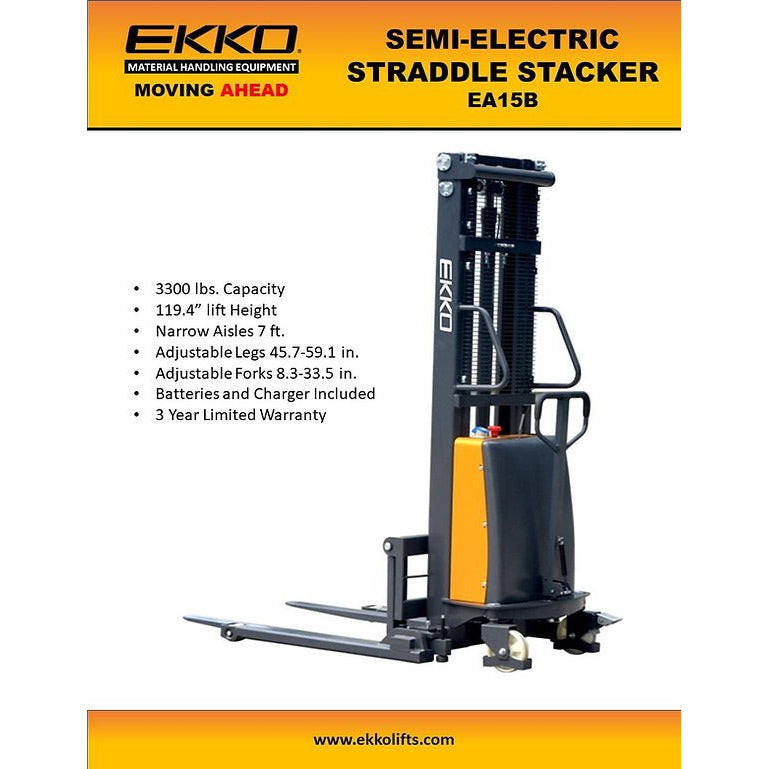

- Load Capacity 3300lbs.
- Raised Height 119.3" (9.95ft)
- Fork Length 45.3"
- Power Lifting
- Manual Drive
- Adjustable Forks
- Internal Charger 12V/20A Included
- Battery 12V 120Ah Included
- Ergonomic Handle
- Steel Construction
- Robotic Welding
- 3 Years Limited Warranty

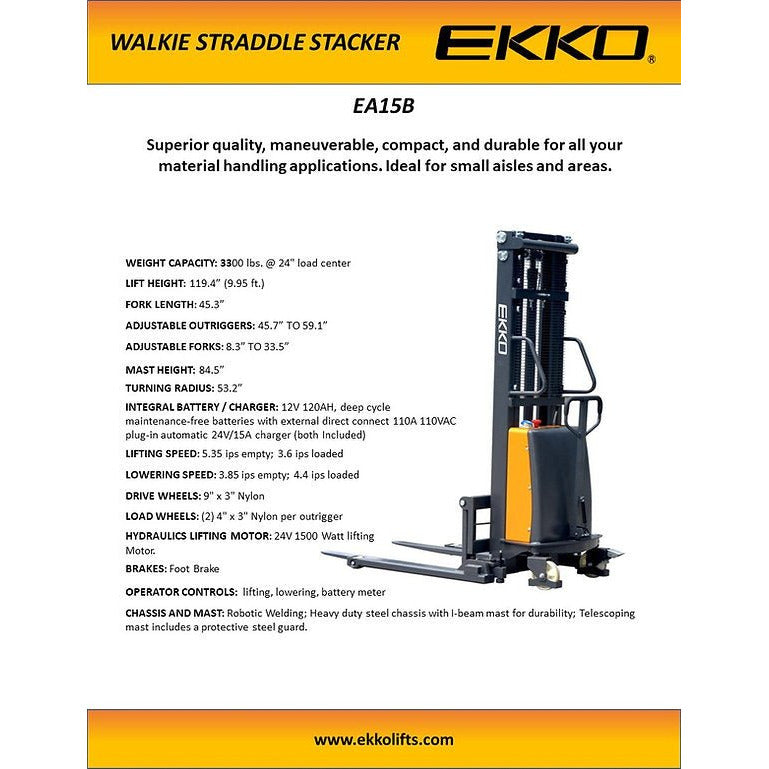

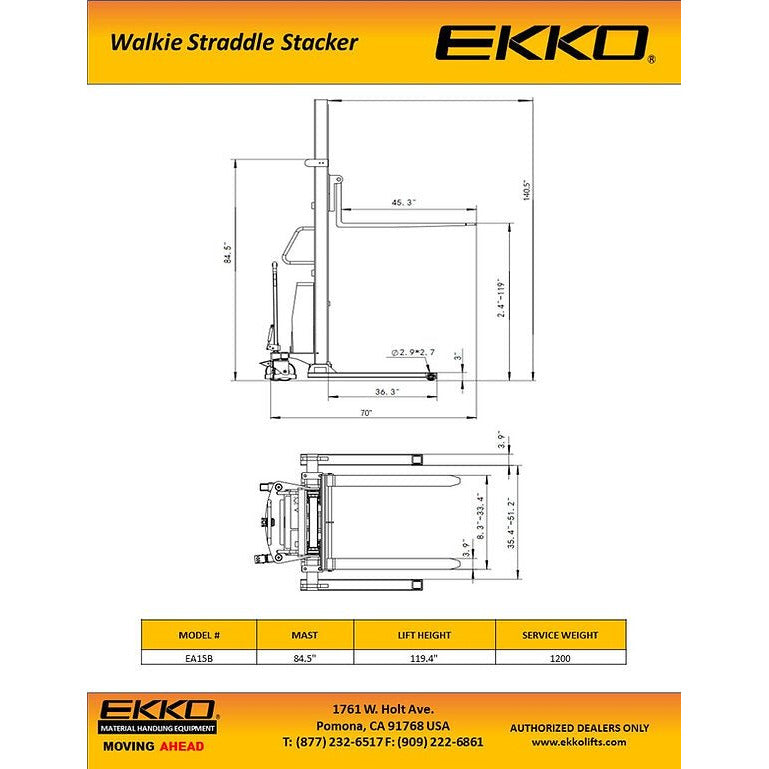

Model |
|
EA15B |
Load Capacity |
(lbs) |
3300 |
Lifting height Max. |
(in) |
119.4 |
Load center distance |
(in) |
24 |
Fork length |
(in) |
45.3 |
Single fork width |
(in) |
3.9 |
Overall fork width |
(in) |
8-33.4 |
Lowered fork height |
(in) |
2.4 |
Fixed leg length |
(in) |
36.4 |
Fixed leg width, single |
(in) |
3.94 |
Adjustable legs |
(in) |
43.5-59.1 |
Turning radius |
(in) |
53.2 |
Overall length |
(in) |
70 |
Overall width max |
(in) |
59 |
Extended mast height |
(in) |
140.5 |
Lowered mast height |
(in) |
84.5 |
Battery Voltage |
(in) |
12V/120AH |
On-Board Charger |
|
12V/15A |
Lift Motor |
|
DC,12V/1.5KW |
Service Weight |
(lbs) |
1200 |
If you require for any Ekko Stackers, please let us know. We ship LTL freight anywhere in Canada
