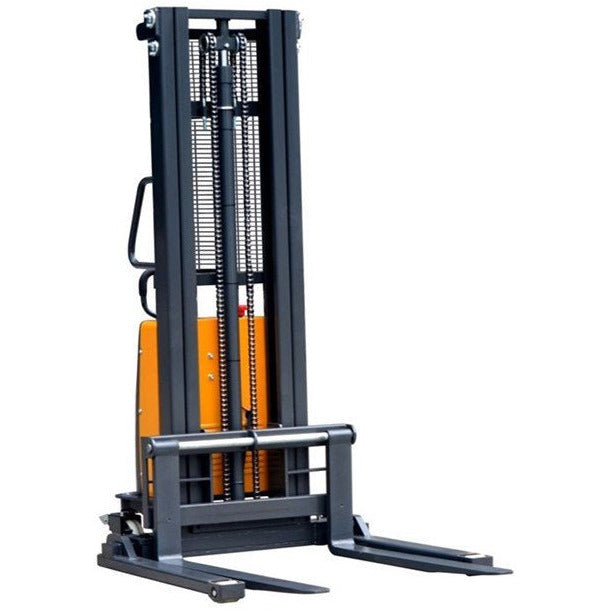

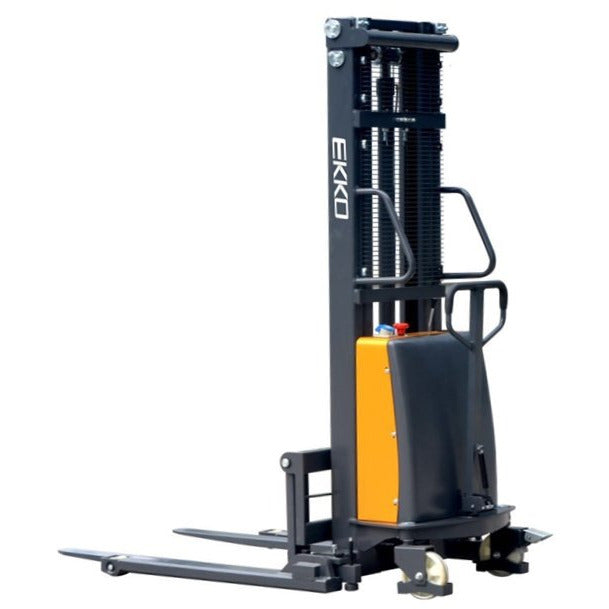

EKKO EA15D Semi-Electric Straddle Stacker 3300lbs. Cap., 138" Height
EKKO EA15D Semi-Electric Straddle Stacker 3300lbs. Cap., 138" Height
The EKKO EA15D Semi-Electric Straddle Stacker is designed with the combination of the versatility of forklift and a pallet stacker. It is ideal for loading and unloading trucks, loading docks, stock rooms, manufacturing floors and warehousing.
This semi-electric straddle stacker is made from high quality steel and components with durable quality drives to withstand any terrain, usage, impact and directional changes for the use of any application with confidence and assurance.
- Load Capacity 3300lbs.
- Raised Height 138" (11.5ft)
- Adjustable Forks 8.3-33.5”

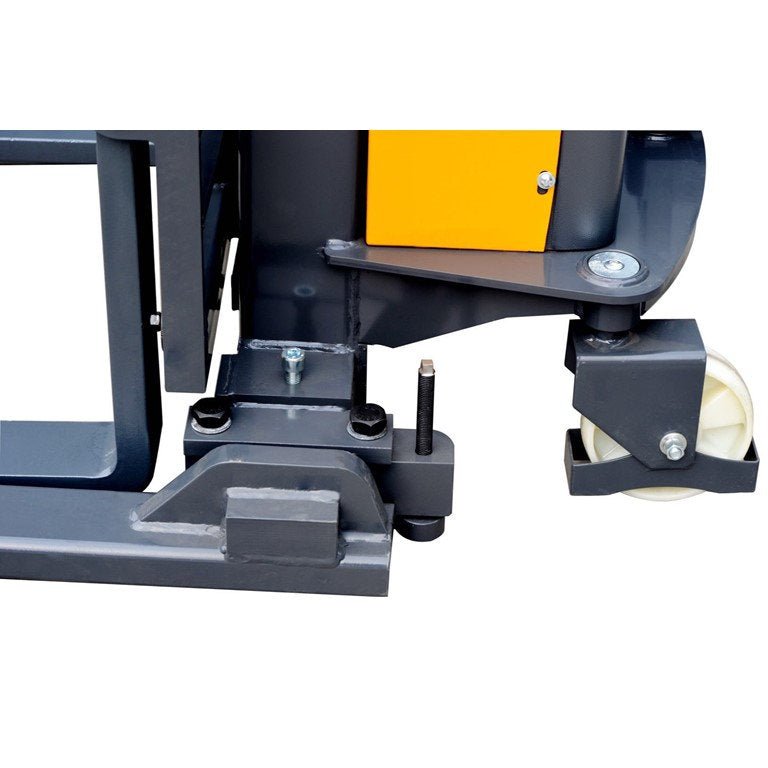

- Adjustable Legs 43.5-59.1”
- Fork Length 45.3"
- Power Lifting
- Manual Drive
- Adjustable Forks
- Built-in Charger 12v 120Ah
- Batteries Included
- Ergonomic Handle
- Steel Construction
- Robotic Welding
- 3 Years Limited Warranty
Model |
|
EA15D |
Load Capacity |
(lb) |
3300 |
Lifting height Max. |
(in) |
138 |
Load center distance |
(in) |
24 |
Fork length |
(in) |
45.3 |
Single fork width |
(in) |
4 |
Overall fork width |
(in) |
8-32.7 |
Lowered fork height |
(in) |
2.35 |
Fixed leg length |
(in) |
36.5 |
Fixed leg width, single |
(in) |
3.94 |
Adjustable legs |
(in) |
44.5-59.1 |
Turning radius |
(in) |
52.6 |
Overall length |
(in) |
70 |
Overall width max |
(in) |
61 |
Extended mast height |
(in) |
154 |
Lowered mast height |
(in) |
92 |
Battery Voltage |
(V/Ah) |
12V/120Ah |
Charger |
(V/A) |
12V/15A |
Lift Motor |
(V/W) |
DC 12V/1500W |
Service Weight |
(lb) |
1450 |
