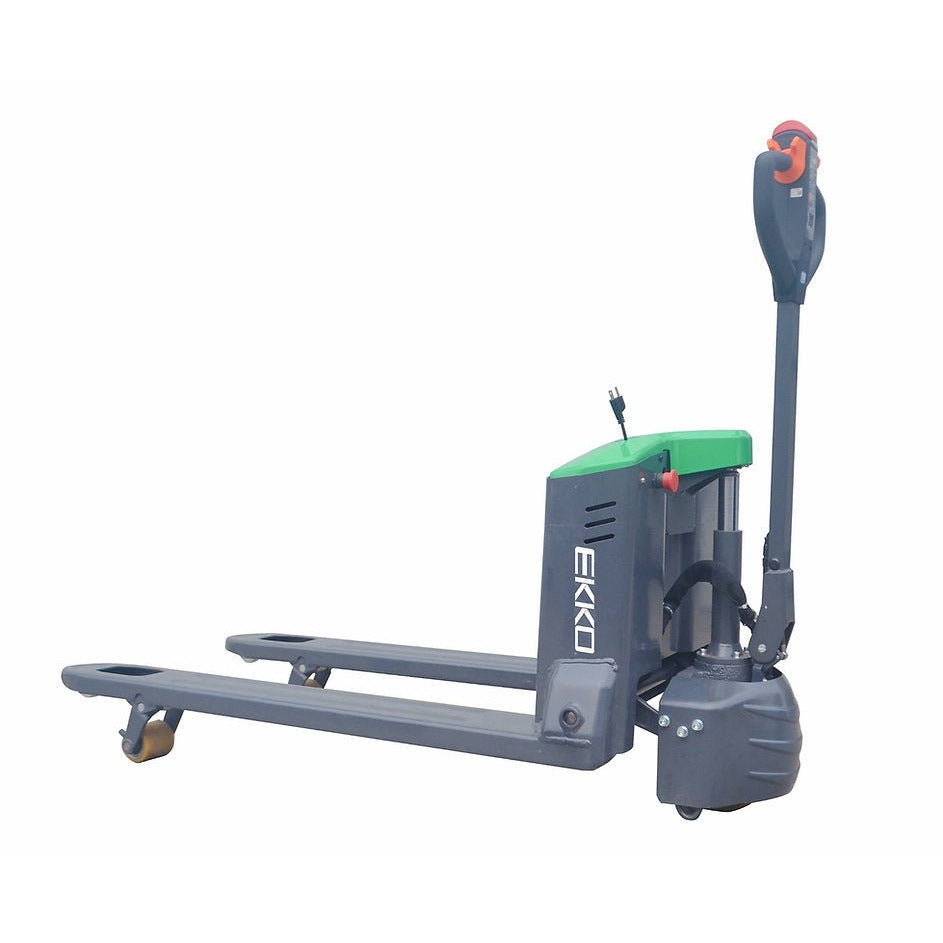

EP15JLI Full Electric Pallet Jack 3300 lb Capacity
EP15JLI Full Electric Pallet Jack 3300 lb Capacity
Regular price
$3,549.00 CAD
Regular price
Sale price
$3,549.00 CAD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
The EKKO EP-JLI series Lithium Iron Phospahte Electric Walkie Pallet Jacks are designed with the versatility of a pallet jack with full power lifting and driving capabilities. It is ideal for loading and unloading trucks, loading docks, stock rooms, manufacturing floors and warehousing.
Made from high-quality steel and components with durable quality drives to withstand any terrain, usage, impact and directional changes for the use of any application with confidence and assurance.
- Lithium 24V Powered
- Load Capacity 3300 lb
- Fork Size 27x48
- Raised Height 7.87"
- Lowered Height 3.35"
- Pinwheel Capability
- Polyurethane Wheels
- Ergonomic Handle and Controls
- Steel Construction
- Robotic Welding
- Charger Included
- (1) Lithium Iron LiFePO4 Battery
- 3 Years Limited Warranty

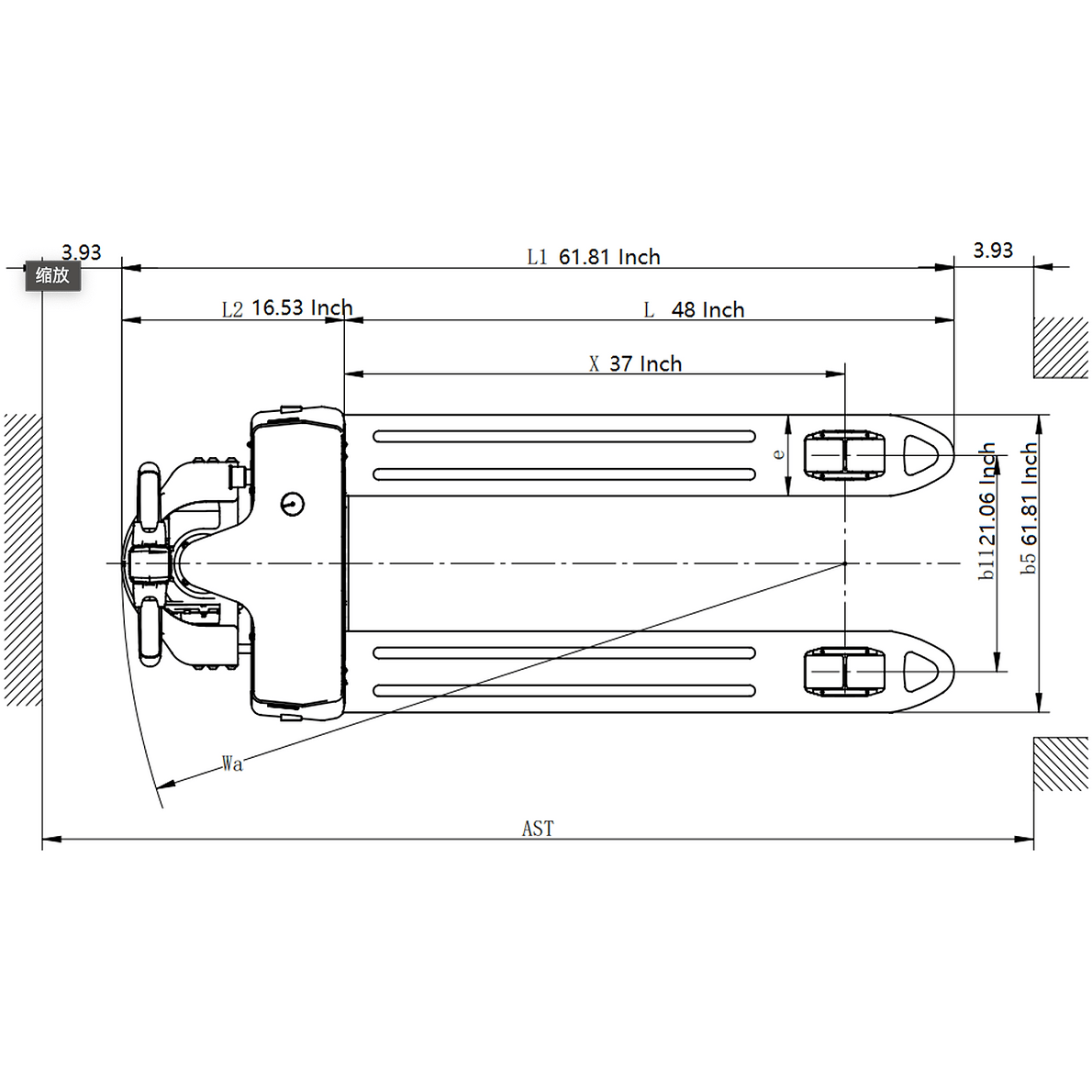

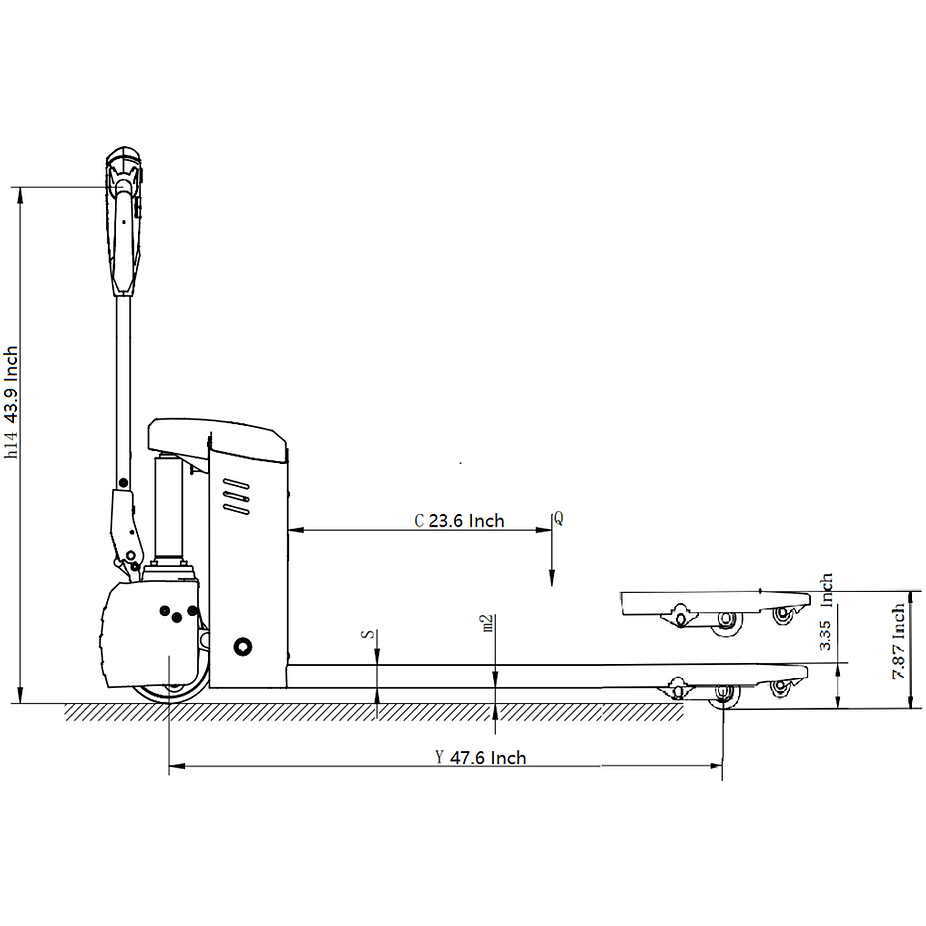

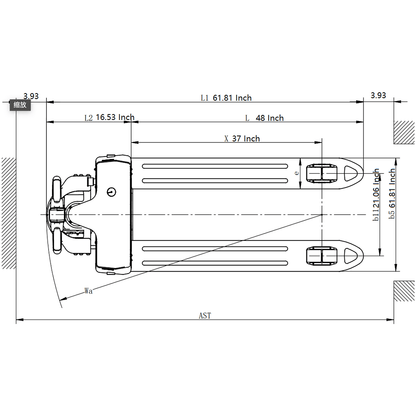

| Model | EP15JLI | |
| Drive type | Electric | |
| Manner of operation | Walkie | |
| Load Capacity | Q (LBS) | 3300 |
| Load Centre | c (Inch) | 23.6 |
| Axle centre to fork face | x (Inch) | 37 |
| Wheel Base | y (Inch) | 47.6 |
| Tire material | PU | |
| Driving wheel size | Φ×w(Inch) | Φ8.26×2.75 |
| Bearing wheel size | Φ×w(Inch) | Φ3.15×2.36 |
| Qty of wheel，Front/Rear（x=driving wheel） | 1x/2 | |
| Tread | b11 (Inch) | 21.06 |
| Lifting Height | h3 (Inch) | 7.8 |
| The height of handle in the operation position | h14 (Inch) | 30.5/43.9 |
| Lowered fork height | h13 (Inch) | 3.35 |
| Overall Length | l1 (Inch) | 61.81 |
| Body Length | l2 (Inch) | 16.53 |
| Overall Width | b1/ b2 (Inch) | 27 |
| Fork Size | s/e/l (Inch) | 1.97/5.9/48 |
| Fork Width | b5 (Inch) |
27 |
| Min.Ground clearance | m2 (Inch) | 1.38 |
| Aisle width for pallets 39.37*47.24 crossways | Ast (Inch) | 69.7 |
| Aisle width for pallets 31.5*47.24 lengthways | Ast (Inch) | 71.6 |
| Turing Radius | Wa (Inch) | 53.7 |
| Driving Speed，load/unload | (km/h) | 4.2/4.5 |
| Maximum gradeability load/unload | (%) | 5/10 |
| Brake Type | Electromagnetic brake | |
| Drive Motor | (kW) | 0.75 |
| Lift Motor | (kW) | 0.8 |
| Lithium LiFePO4 Battery voltage rate capacity | (V/Ah) | 24/30 |
| Battery Weight（±5%） | LBS | 21.1 |
| Type of drive control | DC | |
| Noise level | (dB(A)) | ≤70 |
| Service Weight（with battery） | LBS | 308 |
