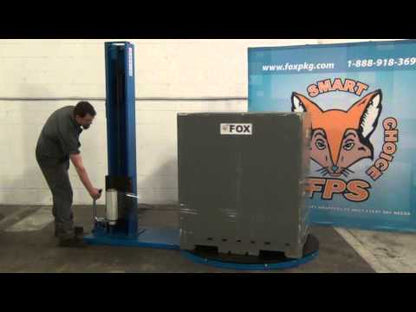

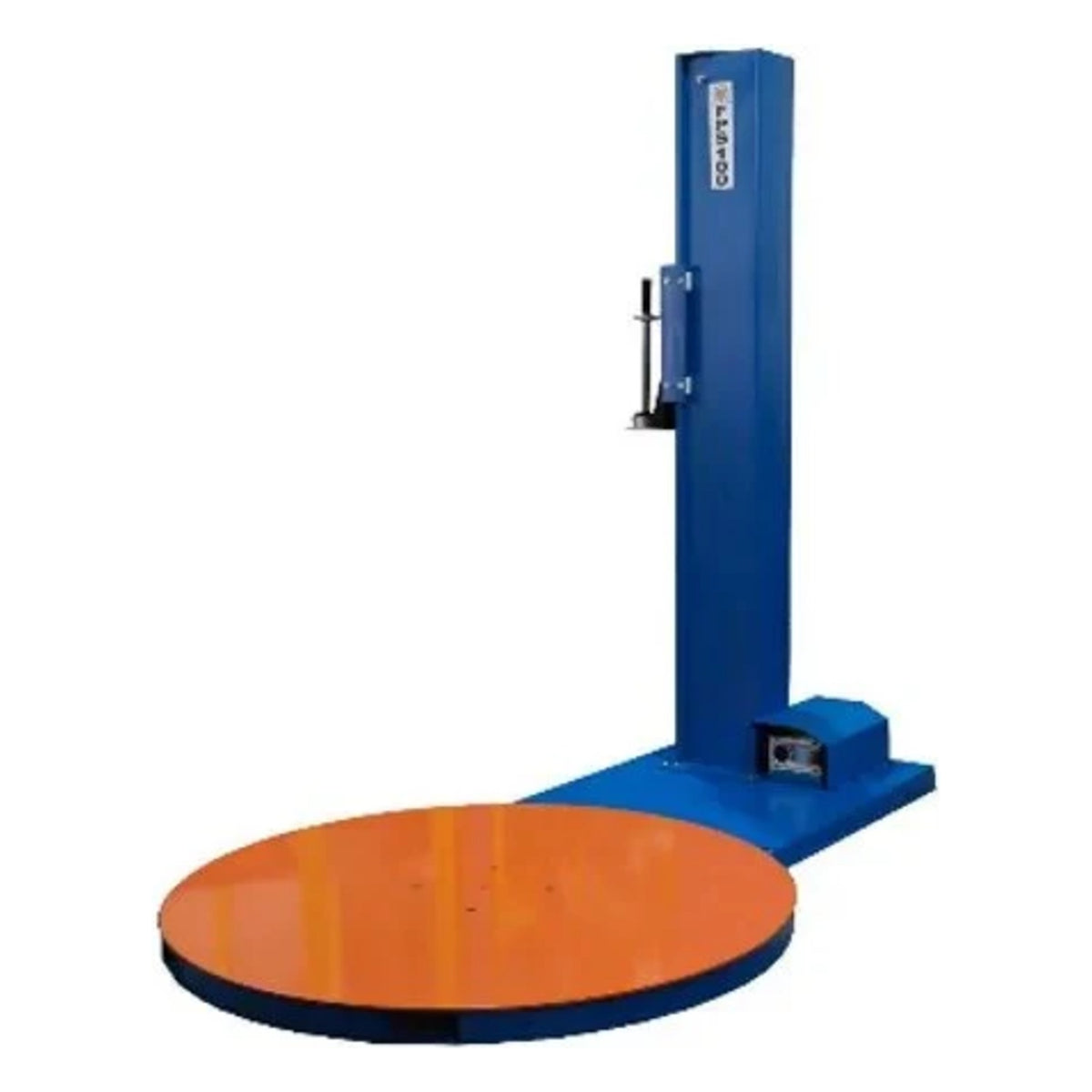

The FPS 100 is Fox Packaging's entry-level stretch wrapper: a powered, low-profile turntable with a manual, counterweight-balanced film carriage. The operator raises and lowers the carriage by hand while the table turns the load. It's a simple, low-maintenance step up from hand wrapping for shops wrapping up to about 25 loads per hour.
Key features

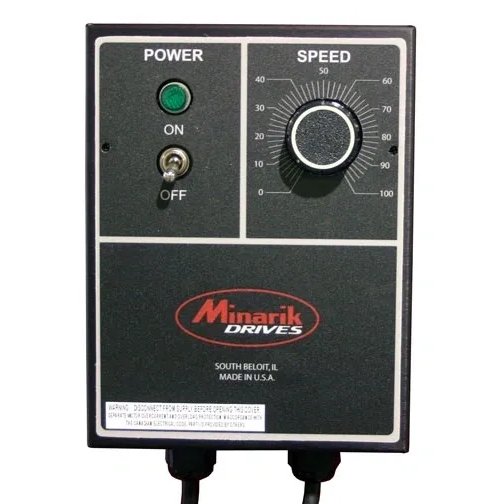

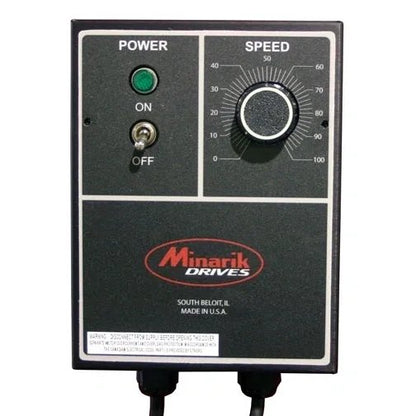

Powered low-profile turntable with variable speed 0–15 RPM
Soft start/stop drive for stable loads

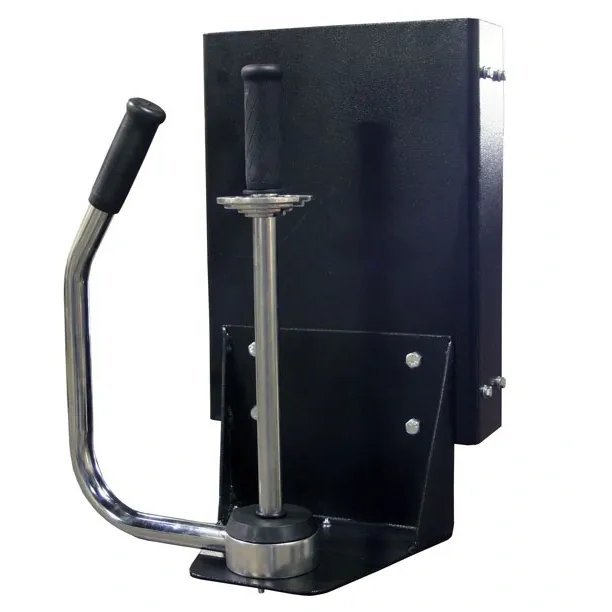

Manual-lift, counterweight-balanced film carriage on UHMW guides with #50 ANSI chain
Hand film tensioner provides some prestretch; no hinges, latches or idler rollers to wear
Uses standard 14"–18" hand film
Welded steel construction; all circuits fuse-protected with easy access
Specifications
Production speed
1–25 loads/hour* *Loads per hour; varies with load size, loading/unloading speed and number of wraps.
Load size
55" L x 55" W x 84" H (80" diagonal)
Weight capacity
5,000 lb
Structure
Welded steel
Turntable drive
1/2 HP SCR drive, 20:1 gearbox
Table support
36 table support wheels
Turntable speed
0–15 RPM
Carriage
Manual lift, counterweight balanced
Film delivery
Hand tension
Film roll
14"–18" hand film
Power
115 VAC, 15 A, 60 Hz, plug and play
Ideal for
Warehousing and distribution centres
Manufacturing and shipping departments
Food & beverage
Logistics and 3PL operations
Plug and play: runs on a standard 115 V, 15 A household outlet. No electrician or special installation required; set it down, plug it in and start wrapping.
Made in Canada (Scarborough, ON) by Fox Packaging Services.
Warranty: Fox Packaging Services turntable wrappers carry a 3-year parts / 5-year workmanship limited warranty when installed, maintained and used to factory specifications (normal wear parts such as turntable wheels, chains, UHMW clamp slides, cutter wire and fuses excluded; indoor use only). Full terms at foxpkg.com/warranty.
Shipping: Ships across Canada by LTL carrier freight, from BC to the Maritimes. Freight is calculated at checkout, or call 289-269-0850 for a delivered quote.
