Fox FPS 300 Semi-Automatic Pallet Wrapper, 5,000 lb
Fox FPS 300 Semi-Automatic Pallet Wrapper, 5,000 lb
Ships across Canada & U.S. Tailgate delivery available on most units.
Couldn't load pickup availability
Get pricing, freight cost & lead time — no obligation.
Lease to Own Financing — Apply NowRequest a Quote
Fox FPS 300 Semi-Automatic Pallet Wrapper, 5,000 lb
⚙️ Options & Upgrades
Also available: electric top platen, roping bar, foot-pedal jog, split base, remote electrical panel and more.
Options are factory-installed and added to your quote. Prices in CAD. Request a quote with options →
🚚 Shipping & Delivery

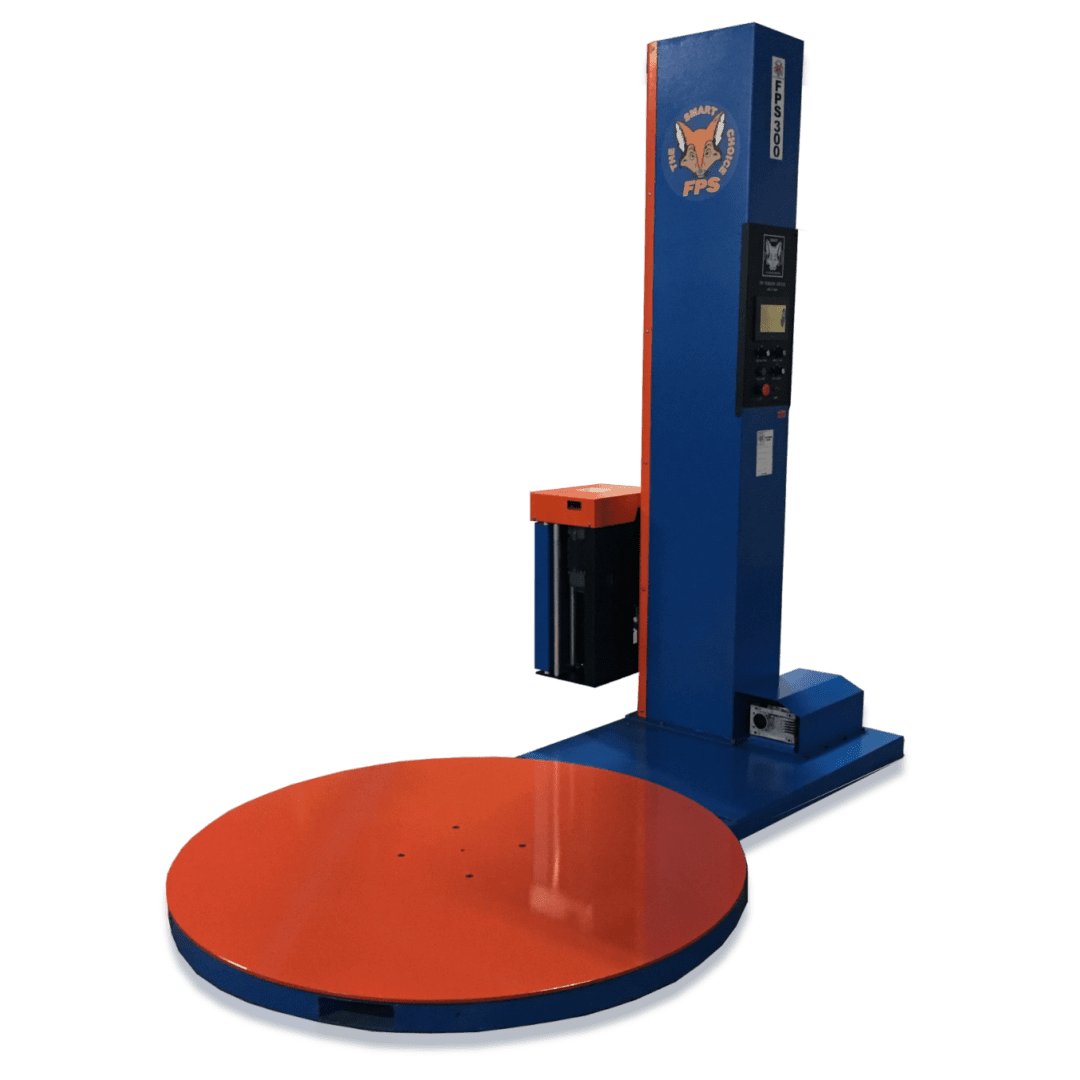

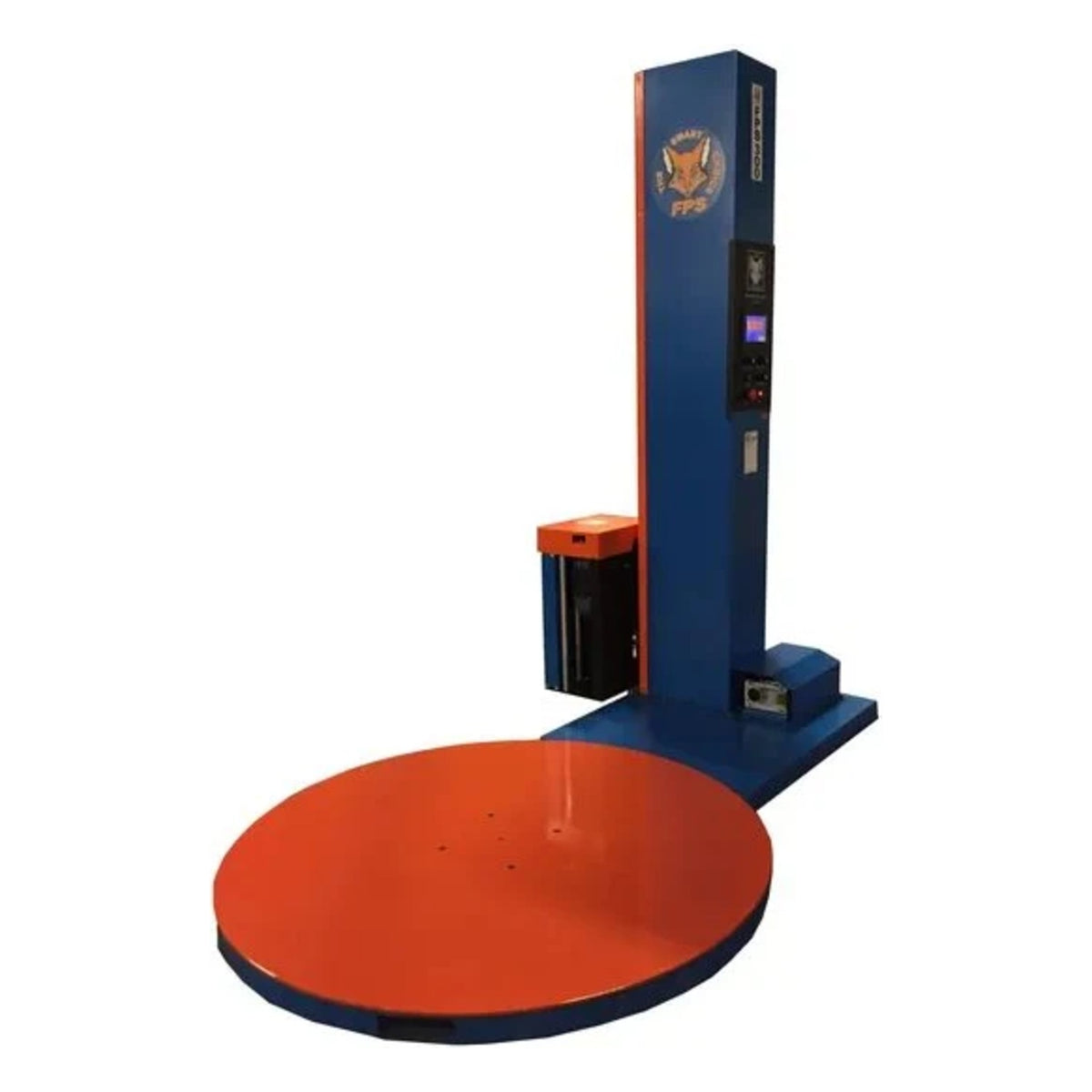

Fox FPS 300 Semi-Automatic Low-Profile Turntable Pallet Wrapper, 5,000 lb Capacity
Fox's best-selling FPS 300 is a PLC-controlled, semi-automatic, low-profile turntable stretch wrapper. Load the pallet, press start, and the FPS 300 wraps it to your programmed settings, then cuts the film automatically with Fox's patented mechanical cutter. You get consistent load stability, less film waste and less labour, at up to 40 loads per hour.
Key features

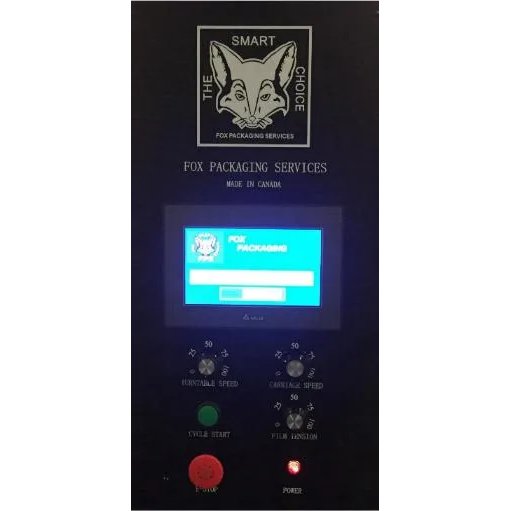

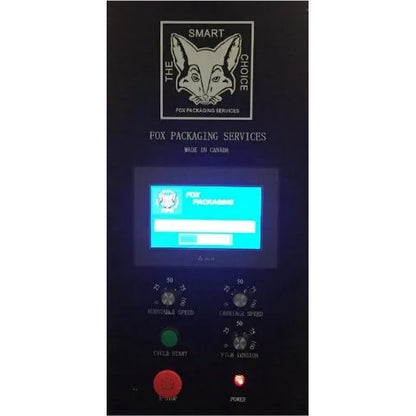

- 32 I/O Delta PLC with full-colour 7" Delta touch screen
- Delta 1 HP AC VFDs with variable turntable speed (0–15 RPM) and variable carriage up/down speed
- Separate top/bottom wrap selectors (1–9) and film height selector
- Triple-beam auto height photo-eye that detects all load colours, including black
- Turntable jog with auto home alignment, adjustable soft start/stop and E-stop
- Cycle counter and flush-mounted control panel built into the tower

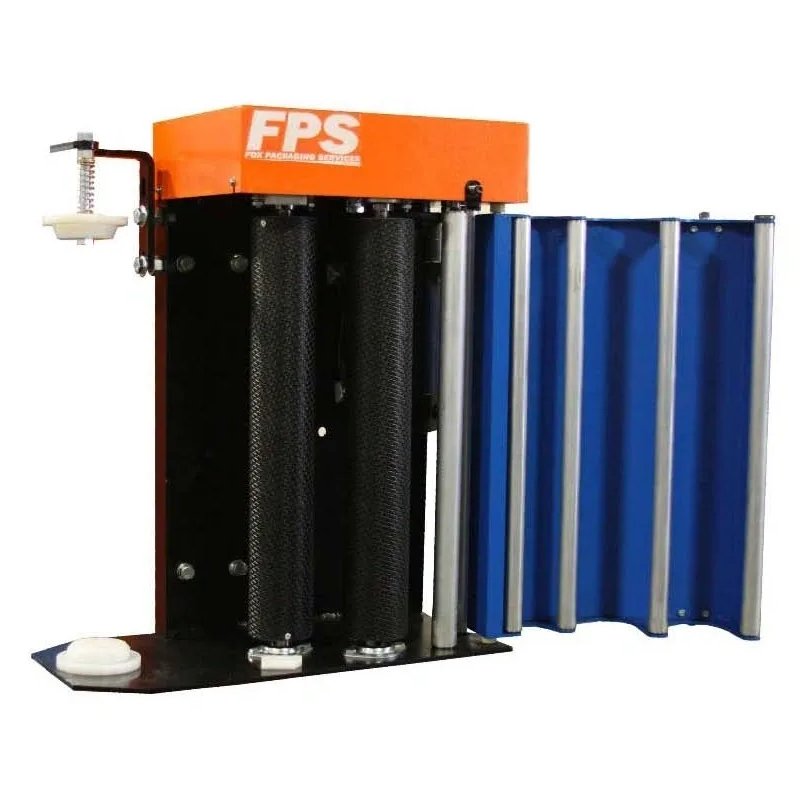

- Hurricane Thread© 20" powered prestretch film carriage, 200% factory-set stretch (50–250% on request)
- Easy-thread carriage with electronic film force control on the panel
- Patented end-of-cycle mechanical film cutter included at no extra cost; no knives, and one less step for the operator
- 4 onboard wrap programs: standard, standard with top-cover pause, bottom wraps first, and wrap upward only
- Forklift-portable design with heavy-duty low-profile turntable
Specifications
| Production speed | 1–40 loads/hour* *Loads per hour; varies with load size, loading/unloading speed and number of wraps. |
| Controls | Delta PLC, full-colour 7" touch screen |
| Load size | 55" L x 55" W x 91" H (80" diagonal) |
| Weight capacity | 5,000 lb |
| Structure | Welded steel |
| Turntable drive | 3/4 HP AC motor & Delta 1 HP VFD, 20:1 gearbox |
| Table support | 36 bearing table supports |
| Turntable speed | 0–15 RPM |
| Carriage drive | 3/4 HP AC motor & Delta 1 HP VFD, #50 ANSI chain, 60:1 gearbox |
| Film delivery | Hurricane Thread© powered prestretch carriage |
| Film roll | 20" machine film, 3" core |
| Power | 115 VAC, 15 A, 60 Hz, plug and play |
Ideal for
- Warehousing and distribution centres
- Manufacturing and shipping departments
- Food & beverage
- Logistics and 3PL operations
Plug and play: runs on a standard 115 V, 15 A household outlet. No electrician or special installation required; set it down, plug it in and start wrapping.
Made in Canada (Scarborough, ON) by Fox Packaging Services.
Warranty: Fox Packaging Services turntable wrappers carry a 3-year parts / 5-year workmanship limited warranty when installed, maintained and used to factory specifications (normal wear parts such as turntable wheels, chains, UHMW clamp slides, cutter wire and fuses excluded; indoor use only). Full terms at foxpkg.com/warranty.
Shipping: Ships across Canada by LTL carrier freight, from BC to the Maritimes. Freight is calculated at checkout, or call 289-269-0850 for a delivered quote.
