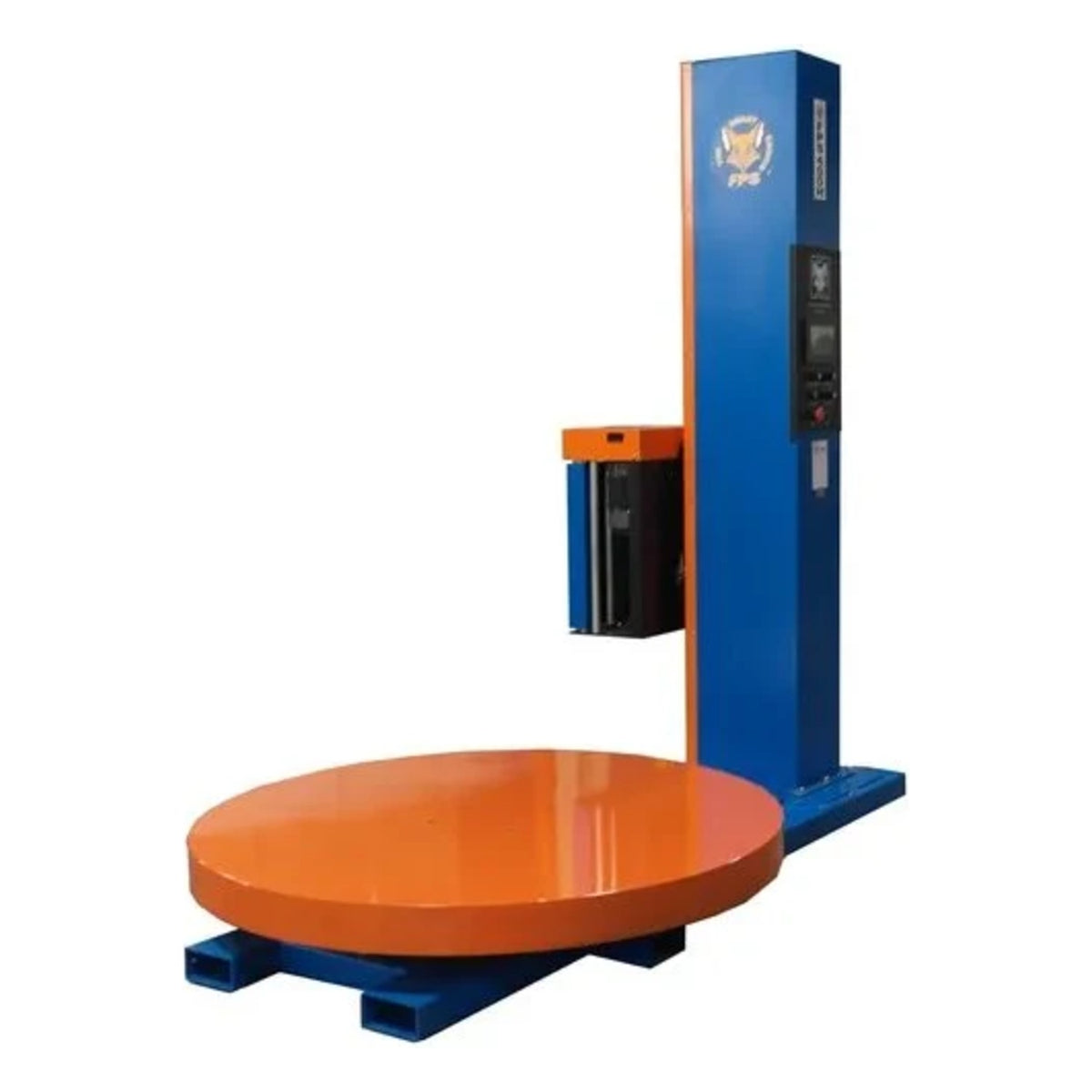

Fox FPS 400H Semi-Automatic High-Profile Turntable Pallet Wrapper, 5,000 lb Capacity
The FPS 400H is Fox's heavy-duty semi-automatic turntable in a high-profile build, mounted on four 2,000 lb heavy-duty swivel casters. It's made for forklift loading and is easy to roll to a new spot when your floor layout changes. PLC controls and Fox's Hurricane Thread© prestretch carriage deliver consistent wraps at up to 40 loads per hour.
Key features
- 32 I/O Delta PLC with full-colour 7" Delta touch screen
- Delta 1 HP AC VFDs with variable turntable speed (0–15 RPM) and variable carriage up/down speed
- Separate top/bottom wrap selectors (1–9) and film height selector
- Triple-beam auto height photo-eye that detects all load colours, including black
- Turntable jog with auto home alignment, adjustable soft start/stop and E-stop
- Cycle counter and flush-mounted control panel built into the tower
- Hurricane Thread© 20" powered prestretch film carriage, 200% factory-set stretch (50–250% on request)
- Easy-thread carriage with electronic film force control on the panel
- 3 onboard wrap programs: standard, standard with top-cover pause, and wrap upward only
- High-profile turntable on four heavy-duty swivel casters (2,000 lb each) for forklift loading and easy relocation
Specifications
| Production speed | 1–40 loads/hour* *Loads per hour; varies with load size, loading/unloading speed and number of wraps. |
| Controls | Delta PLC, full-colour 7" touch screen |

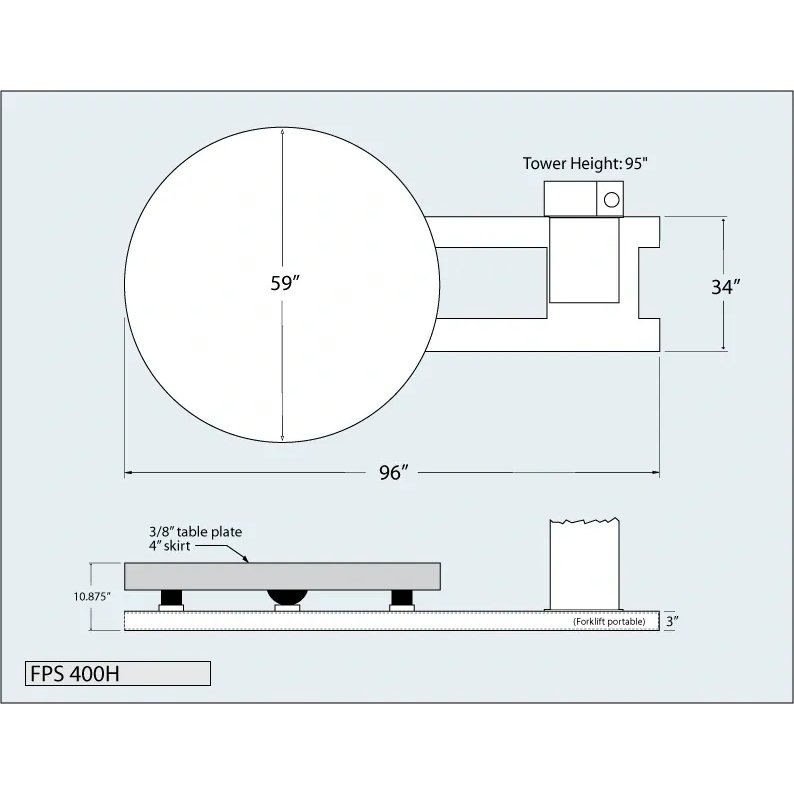

| Load size | 55" L x 55" W x 82" H (80" diagonal) |
| Weight capacity | 5,000 lb |
| Structure | Welded steel on 4 heavy-duty swivel casters (2,000 lb each) |
| Turntable drive | 3/4 HP AC motor & Delta 1 HP VFD, 20:1 gearbox |
| Turntable speed | 0–15 RPM |
| Carriage drive | 3/4 HP AC motor & Delta 1 HP VFD, #50 ANSI chain, 60:1 gearbox |
| Film delivery | Hurricane Thread© powered prestretch carriage |
| Film roll | 20" machine film, 3" core |
| Power | 115 VAC, 15 A, 60 Hz, plug and play |
Ideal for
- Warehousing and distribution centres
- Manufacturing and shipping departments
- Food & beverage
- Logistics and 3PL operations
Plug and play: runs on a standard 115 V, 15 A household outlet. No electrician or special installation required; set it down, plug it in and start wrapping.
Made in Canada (Scarborough, ON) by Fox Packaging Services.
Warranty: Fox Packaging Services turntable wrappers carry a 3-year parts / 5-year workmanship limited warranty when installed, maintained and used to factory specifications (normal wear parts such as turntable wheels, chains, UHMW clamp slides, cutter wire and fuses excluded; indoor use only). Full terms at foxpkg.com/warranty.
Shipping: Ships across Canada by LTL carrier freight, from BC to the Maritimes. Freight is calculated at checkout, or call 289-269-0850 for a delivered quote.
