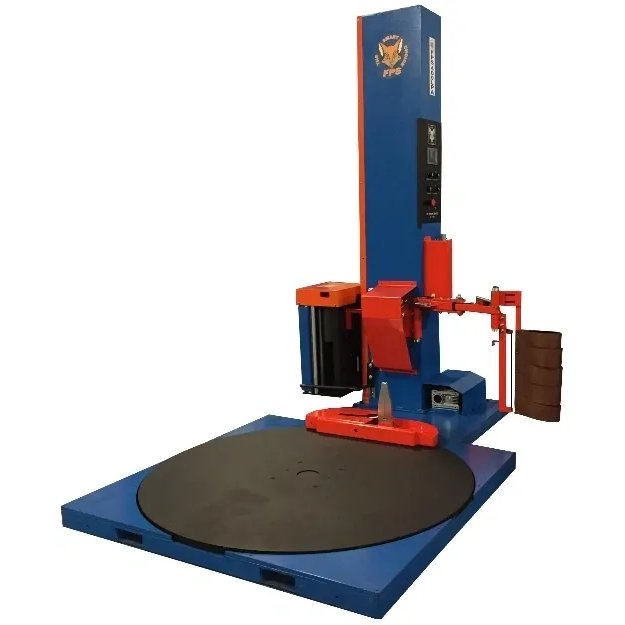

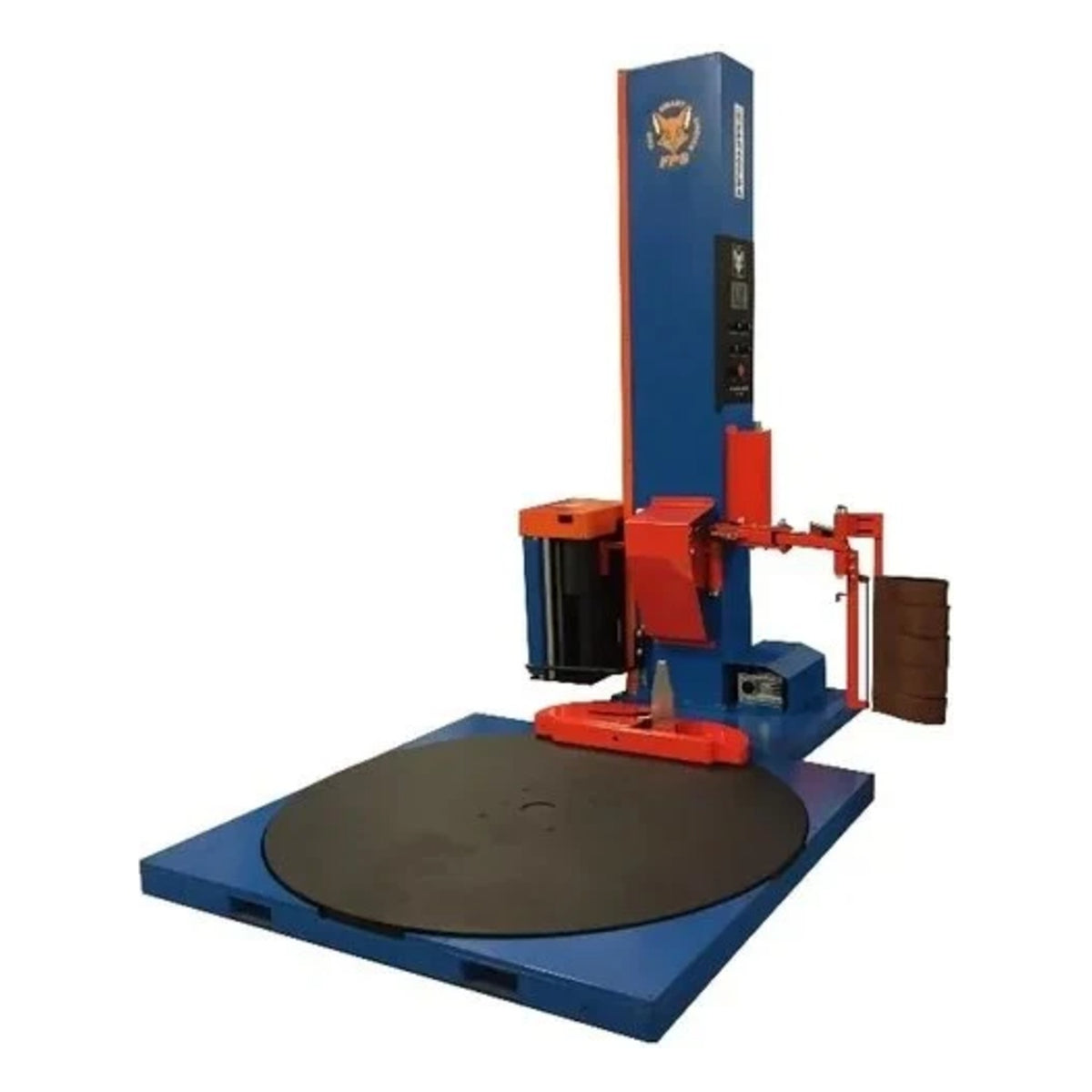

Fox FPS 400LPA Portable Automatic Low-Profile Turntable Pallet Wrapper, 5,000 lb (6,000 lb upgrade available)

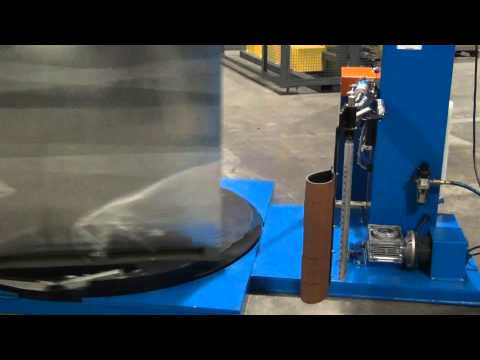

The FPS 400LPA pairs Fox's heavy-duty 400-series low-profile turntable (40 table support wheels) with full automatic film clamp, cut and wipe and a landline remote start. Drop the load, start the cycle without walking to the tower, and leave with a sealed pallet, at up to 40 loads per hour. It's available in 5,000 lb standard or 6,000 lb upgraded capacity.
Key features

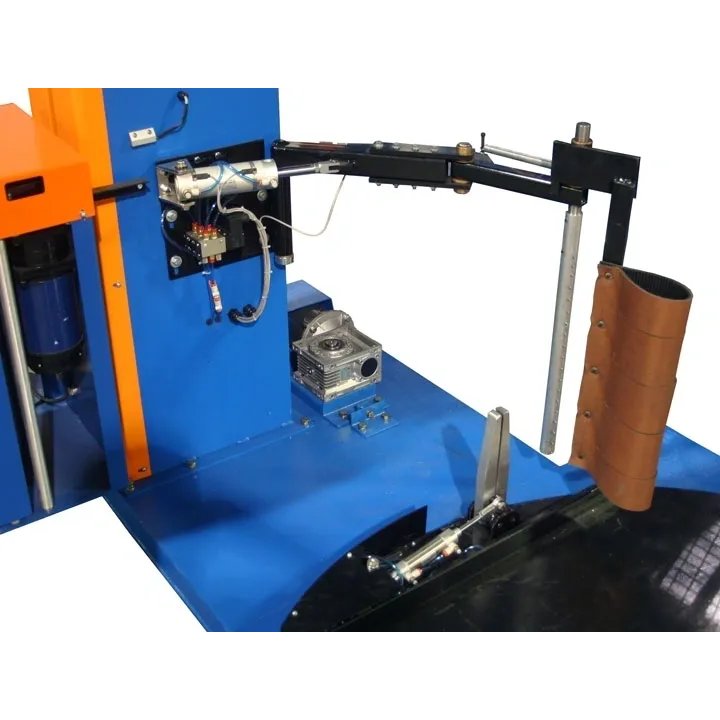

- Automatic film clamp, cut and wipe with Fox's patent-pending 'No Hotwire' cutter (no heat or electricity needed to cut)
- Landline remote start/stop control
- Heavy-duty low-profile turntable with 40 table support wheels

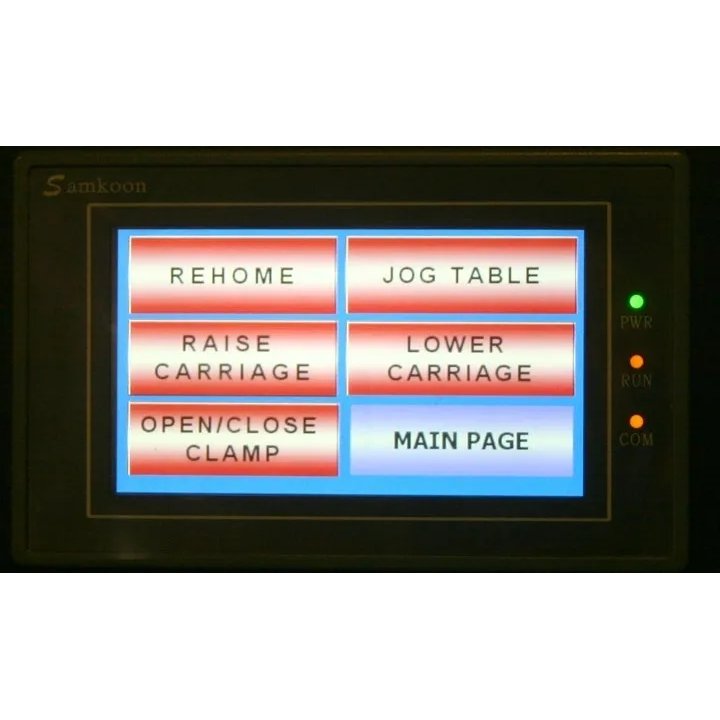

- 32 I/O Delta PLC with full-colour 7" Delta touch screen
- Delta 1 HP AC VFDs with variable turntable speed (0–15 RPM) and variable carriage up/down speed
- Separate top/bottom wrap selectors (1–9) and film height selector
- Triple-beam auto height photo-eye that detects all load colours, including black
- Turntable jog with auto home alignment, adjustable soft start/stop and E-stop

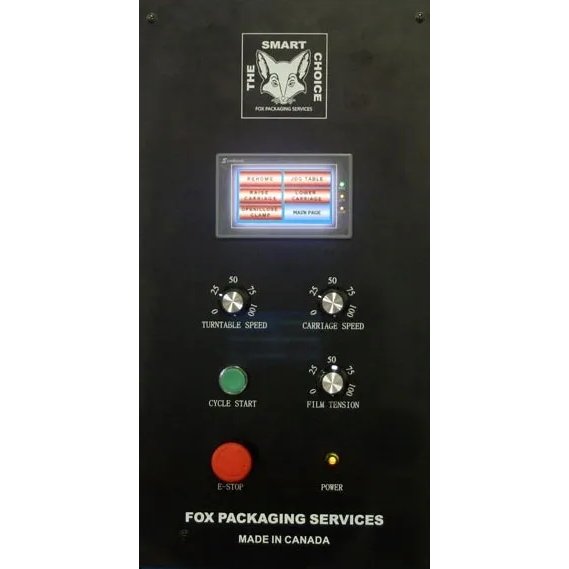

- Cycle counter and flush-mounted control panel built into the tower

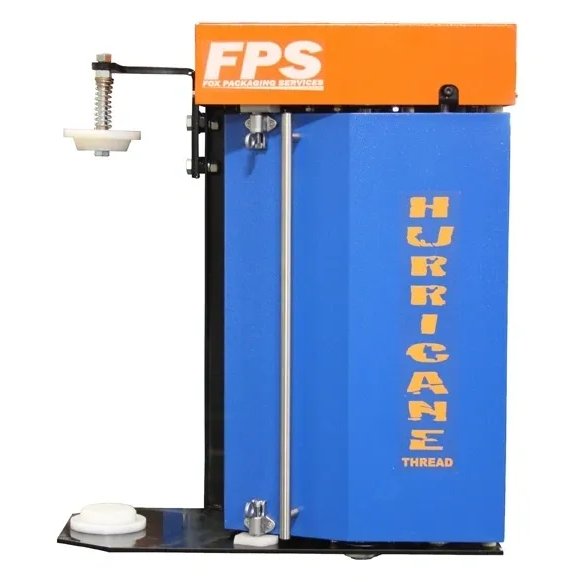

- Hurricane Thread© 20" powered prestretch film carriage, 200% factory-set stretch (50–250% on request)
- Easy-thread carriage with electronic film force control on the panel
Specifications
| Production speed | 1–40 loads/hour* *Loads per hour; varies with load size, loading/unloading speed and number of wraps. |
| Controls | 32 I/O Delta PLC, full-colour 7" touch screen, landline remote start |

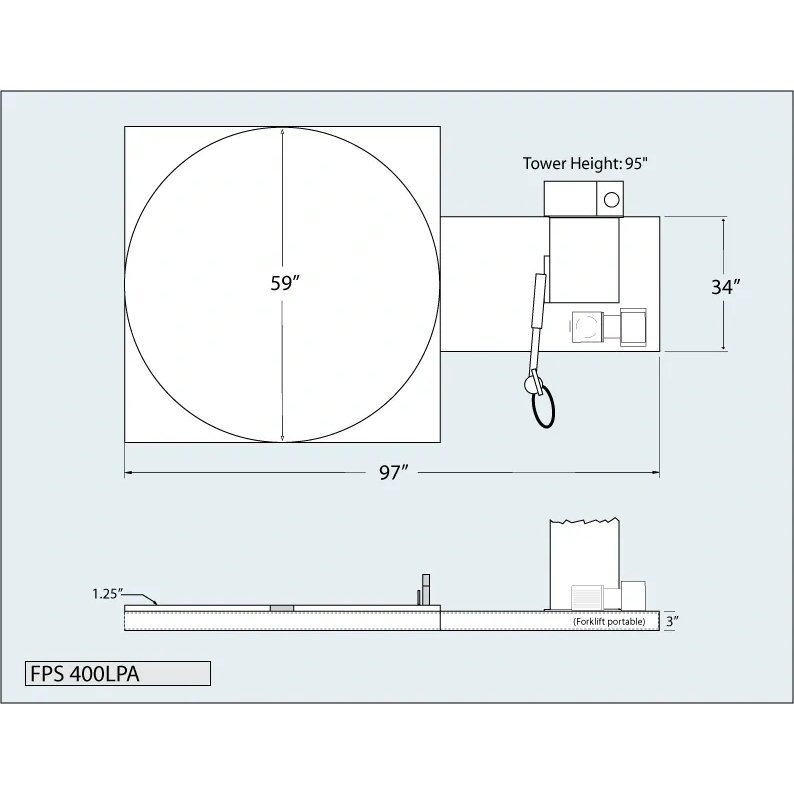

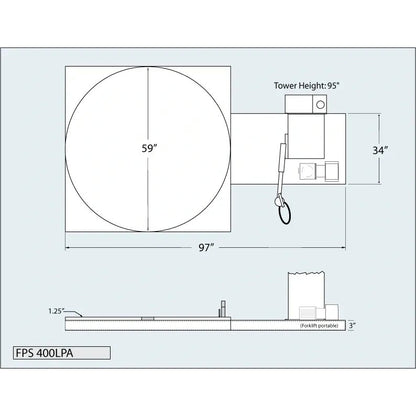

| Load size | 50" L x 50" W x 90" H (70" diagonal) |
| Weight capacity | 5,000 lb standard; 6,000 lb upgrade |
| Structure | Welded steel |
| Turntable drive | 3/4 HP AC motor & Delta 1 HP VFD, 20:1 CFC63 gearbox |
| Table support | 40 table support wheels |
| Turntable speed | 0–15 RPM |
| Carriage drive | 3/4 HP AC motor & Delta 1 HP VFD, #50 chain, 60:1 gearbox |
| Film delivery | Hurricane Thread© powered prestretch carriage |
| Film roll | 20" machine film, 3" core |
| Power | 115 VAC, 15 A, 60 Hz |
| Air | 80 PSI @ 2.5 CFM |
Ideal for
- Warehousing and distribution centres
- Manufacturing and shipping departments
- Food & beverage
- Logistics and 3PL operations
Plug-in power, plus shop air: runs on a standard 115 V, 15 A household outlet, so no electrician is needed for power. The automatic film clamp, cut and wipe also needs a compressed-air drop at the machine (80 PSI @ 2.5 CFM).
Made in Canada (Scarborough, ON) by Fox Packaging Services.
Warranty: Fox Packaging Services turntable wrappers carry a 3-year parts / 5-year workmanship limited warranty when installed, maintained and used to factory specifications (normal wear parts such as turntable wheels, chains, UHMW clamp slides, cutter wire and fuses excluded; indoor use only). Full terms at foxpkg.com/warranty.
Shipping: Ships across Canada by LTL carrier freight, from BC to the Maritimes. Freight is calculated at checkout, or call 289-269-0850 for a delivered quote.
