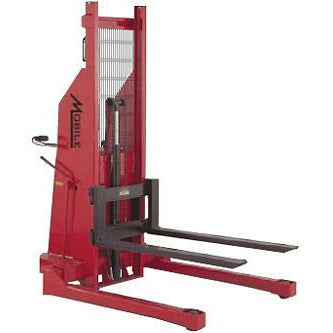

MOBILE B-SERIES SEMI-ELECTRIC STACKER

The Mobile B-Series Semi-Electric Stacker is designed to handle all types of applications including: lifting and transporting skids, bales, baskets; loading and unloading trucks; stocking shelves; die and mold handling; and can handle all sizes of pallets via adjustable straddle legs. The B60CSA is most valuable for loading / unloading trucks where no loading docks exist.

• Capacity: 1,500 lbs
• Overall Length: 64″
• Fork Length: 42″
• Forks Adjust: 8-24″
• Straddle Legs I.D.: 41″ – 50″
• Straddle Legs O.D.: 47″ – 56″
• Lowered Fork Height: 3″
• Raised Fork Height: 60″ / 70″ / 80″
• Overall Mast Height: 72″ / 82″ / 92″
• Weight: 625 / 638 / 652 lbs
• Steer Wheel: 6″
• Load Rollers: 4″
• Formed Channel Steel Construction
• Adjustable Forks/Straddle Legs
• 6:1 Safety Factor Ensuring Safe Fork Lowering
• Steel Safety Screen
• On Dash Lever For Lifting & Lowering
• Rebuilable Pump for Easy Seals/Wiper Replacement
• Hand Controlled Floor-Lock Brake
• High-Quality Powder Coat Paint Finish
