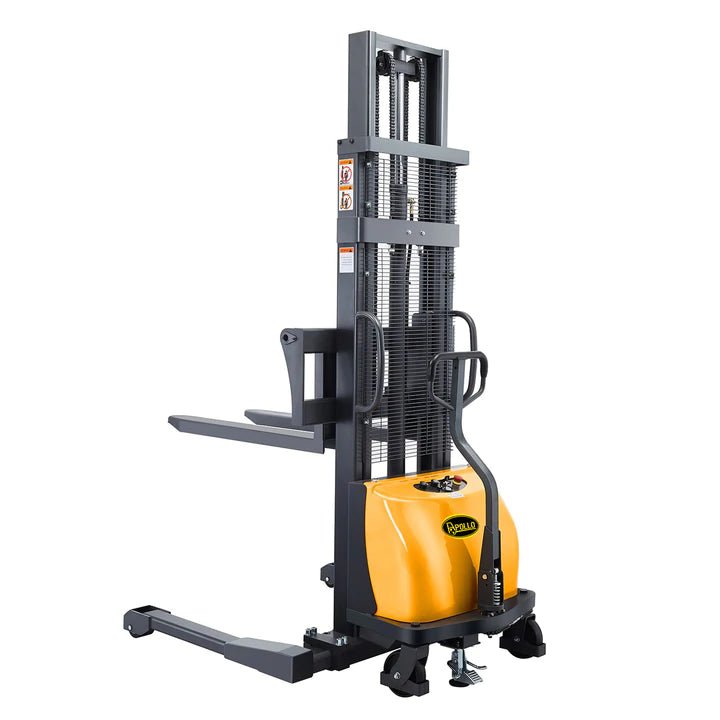

Semi-Electric Straddle Stacker 2200lbs Cap.

MANUAL PUSH AND PULL, POWERED LIFTING AND LOWERING

• Special chain steering system.
• Integrate panel design.
• Foot pedal brake for safety and ramp usage.
• Adjustable forks and straddle legs.

DIMENSIONS

• Overall Length: 68.3"
• Overall Width: 44½"-60.3"
• Recommended Aisle Width: 89.2"
• Turning Radius: 56.1"
• Mast Height Lowered: 84.4"
• Mast Height Raised: 141.7''
• Load Center: 19.7"
• Wheel Diameter:  7''/3.15''

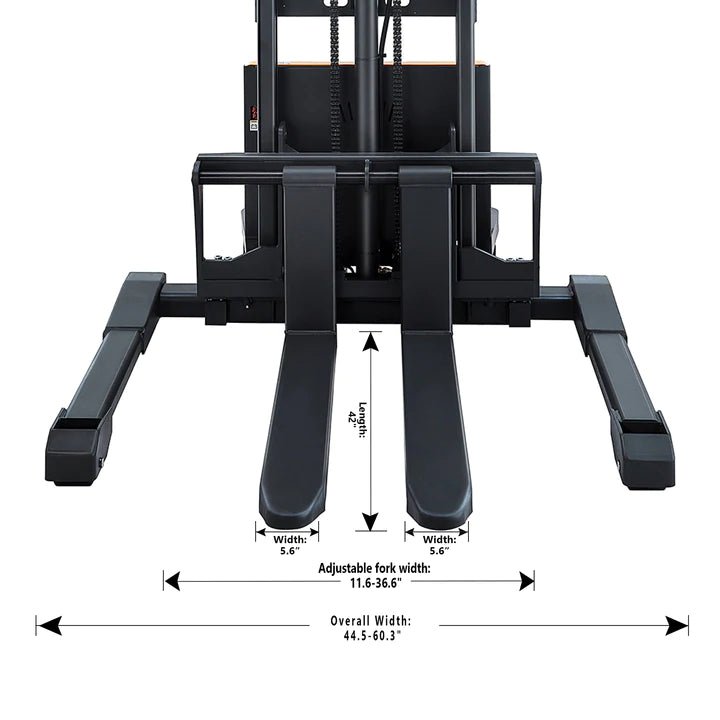

FORKS

• Thickness: 2.3''
• Width: 5.6''
• Length: 42''
• Adjustable fork width: 11.6-36.6''
• Leg inner width: 14.5''
• Leg outer width: 22.4''

SPEED

• Lifting speed(laden/unladen): 2.7/3.9mph
• Lowering speed(laden/unladen): 5.9/4.7mph

BDI

• Multi-function battery display indicator.
• Red: the battery is less than 20% and  need to be charged, the truck can walk only, not lift.
• Yellow: the battery is around 50%.
• Green: the battery is full.

LOAD CENTER CHART
