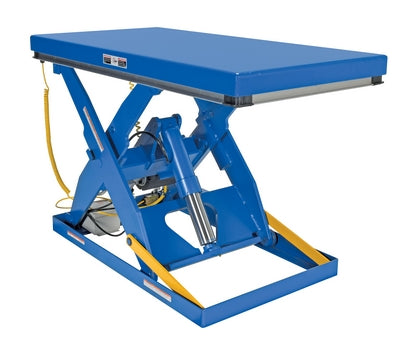

Vestil EHLT-3672-3-43 Electric Hydraulic Scissor Lift Table — 36" x 72", 3,000 lb Capacity
A powered scissor lift table built to bring the work to a comfortable height instead of asking the operator to bend to it. The 36" x 72" platform raises to 43" on an electric-hydraulic power unit, carrying up to 3,000 lb.
Raising and lowering runs from a push-button hand control, so the operator stays clear of the moving platform. An upper travel limit switch stops the table at full height, and an internal velocity fuse holds the platform if a hose or fitting ever fails. A maintenance prop is included for service access.
3,000 lb uniform capacity on a 36" x 72" platform
Raises to 43" — 16 second full travel
Push-button hand control keeps the operator clear of the load
Upper travel limit switch and internal safety velocity fuse
Welded steel construction with safety maintenance prop included
Voltage configured to your facility — ask us before ordering
Uniform Capacity: 3,000 lb
Platform Size: 36" x 72"
Raised Height: 43"
Travel Time: 16 sec
Net Weight: 855 lb
Power Supply: Specified at order — 115V single phase, 208–230V single phase, or three phase
Lead Time: approx. 65 working days
Warranty: 1 year limited
Shipped from Vestil in Angola, Indiana. Freight to Ontario and Quebec is a flat rate at checkout; contact us for a quote to other provinces or for liftgate and inside delivery.
