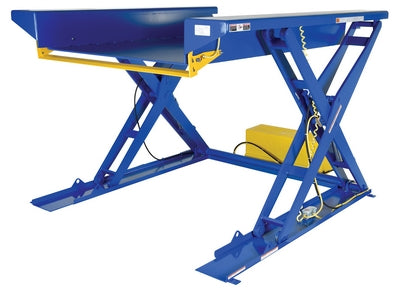

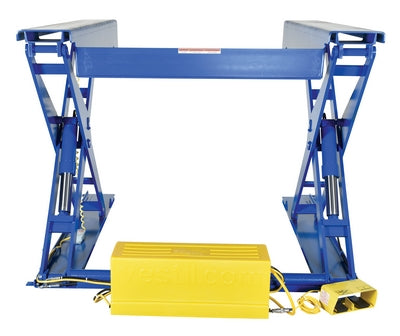

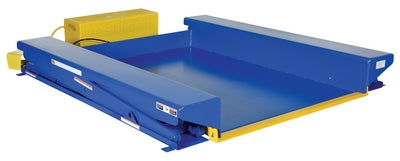

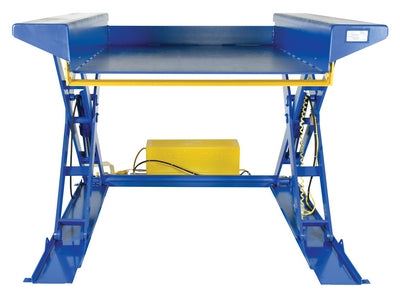

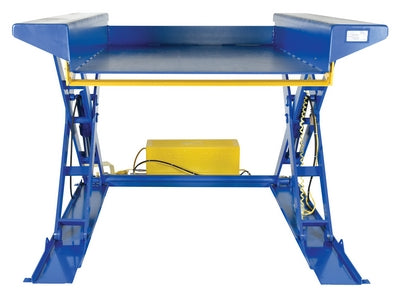

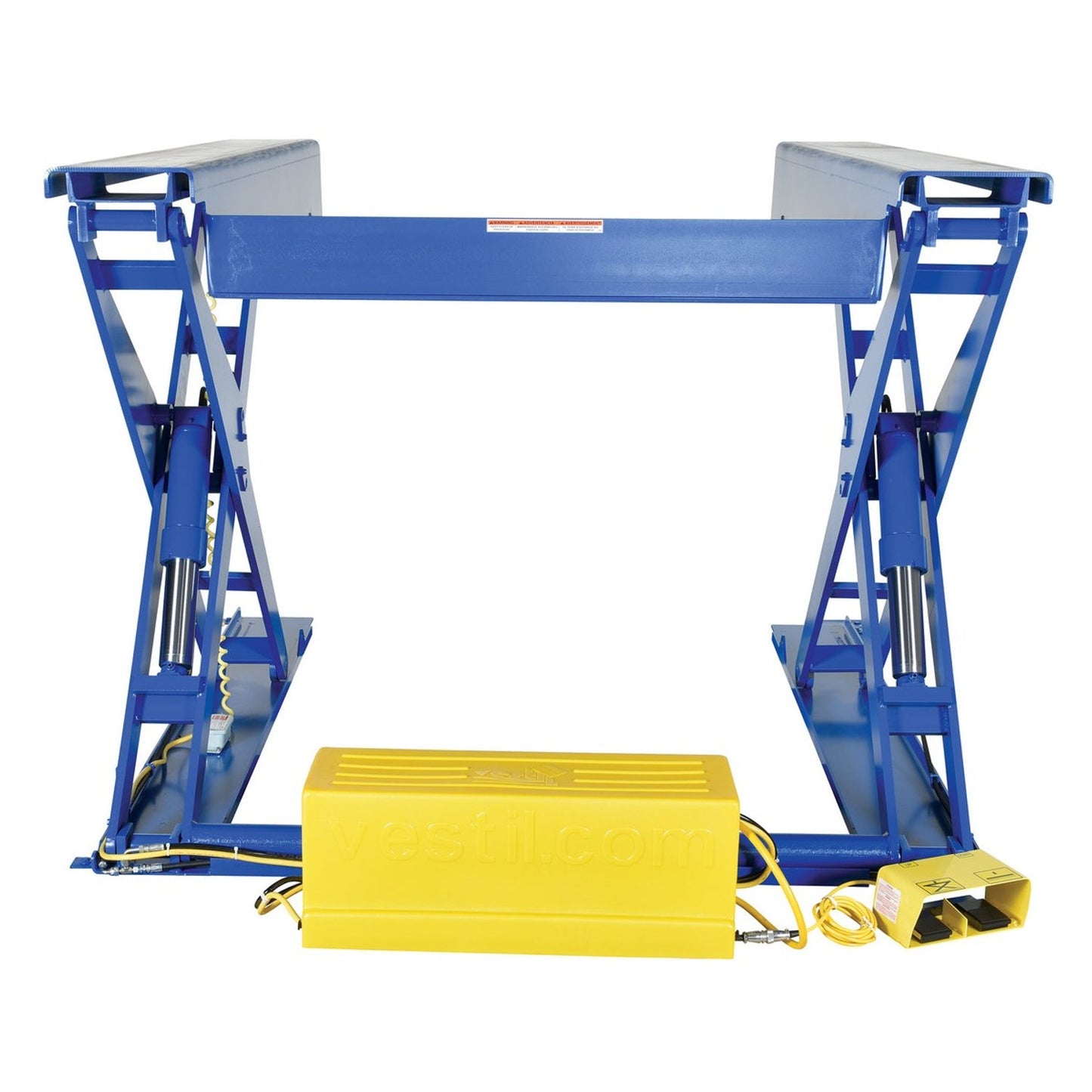

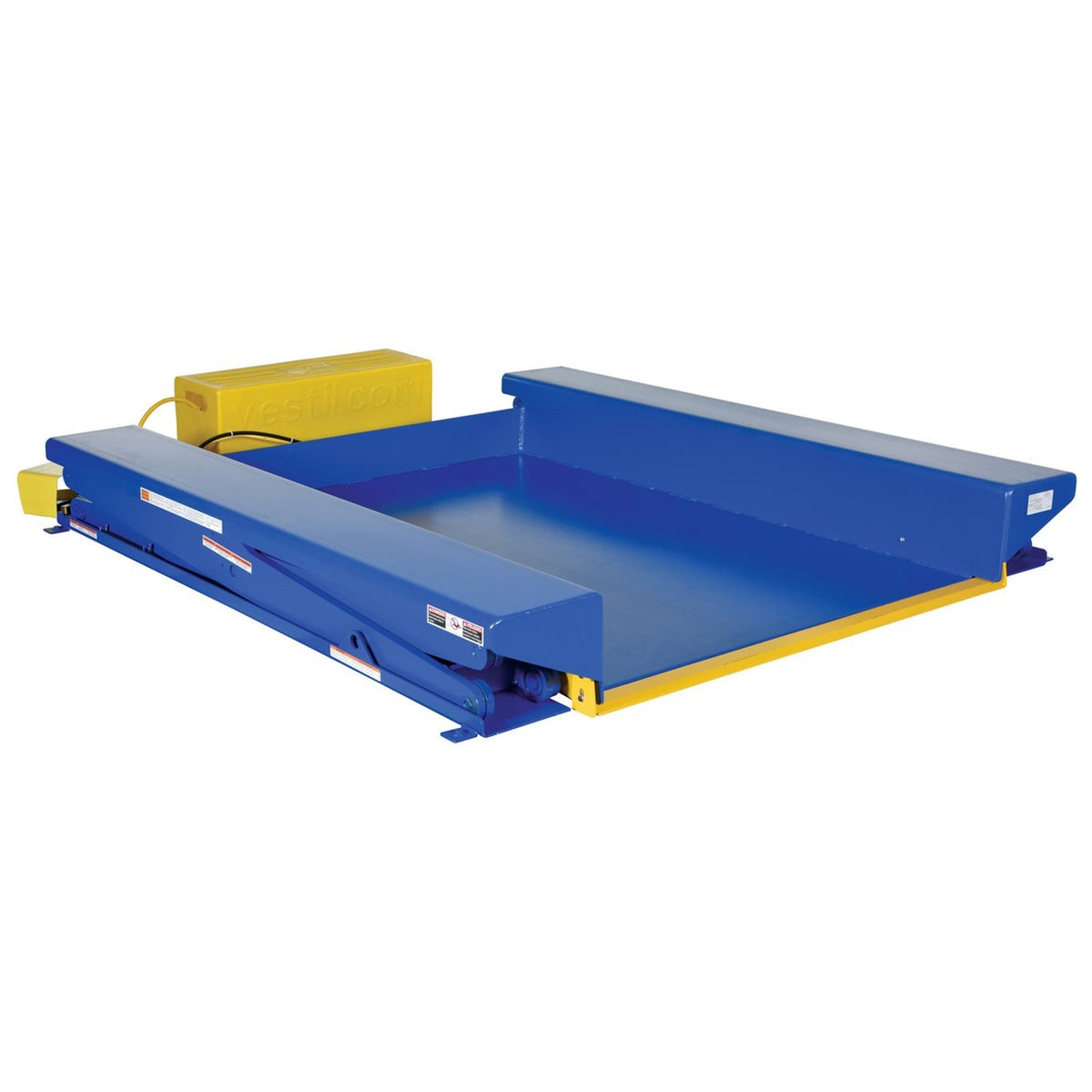

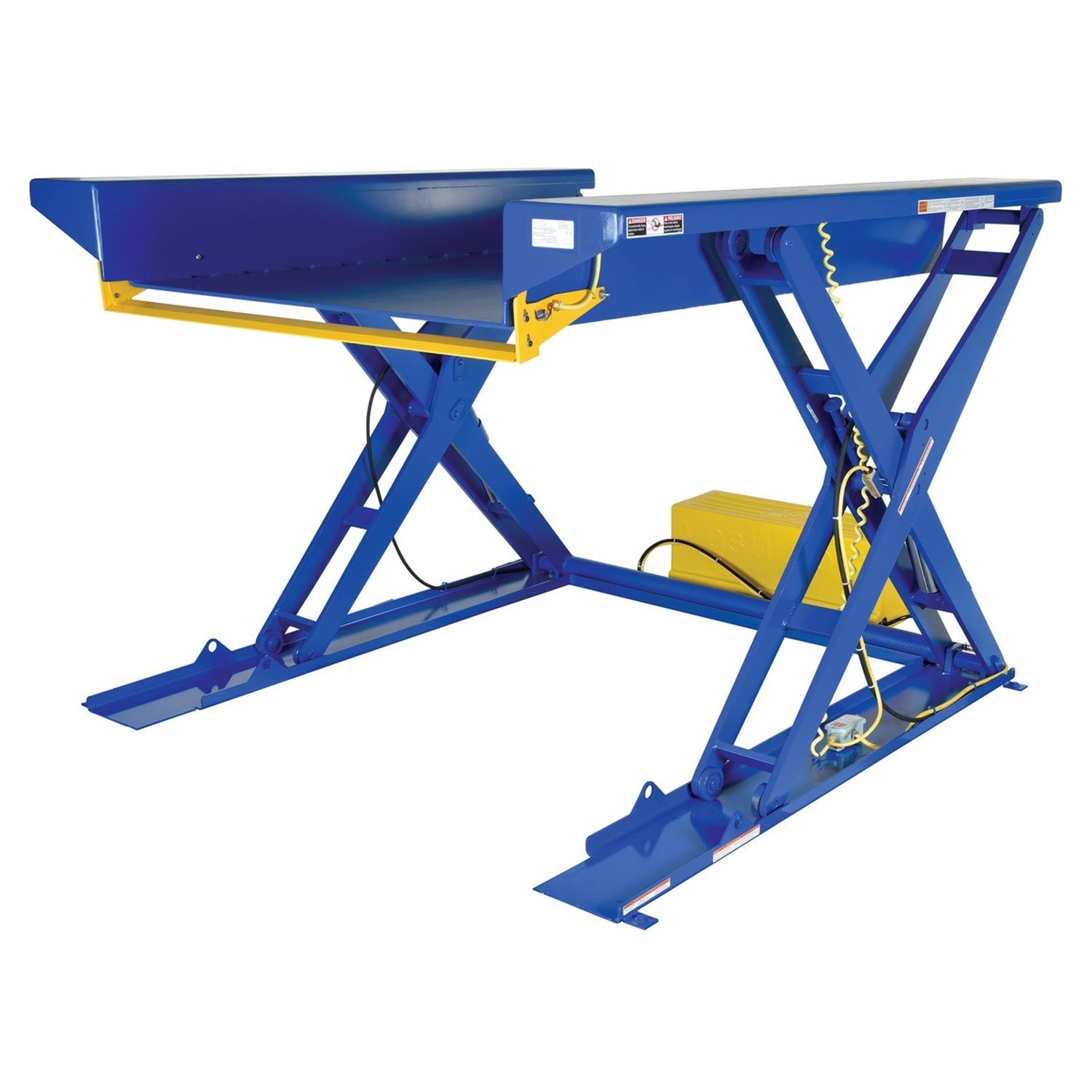

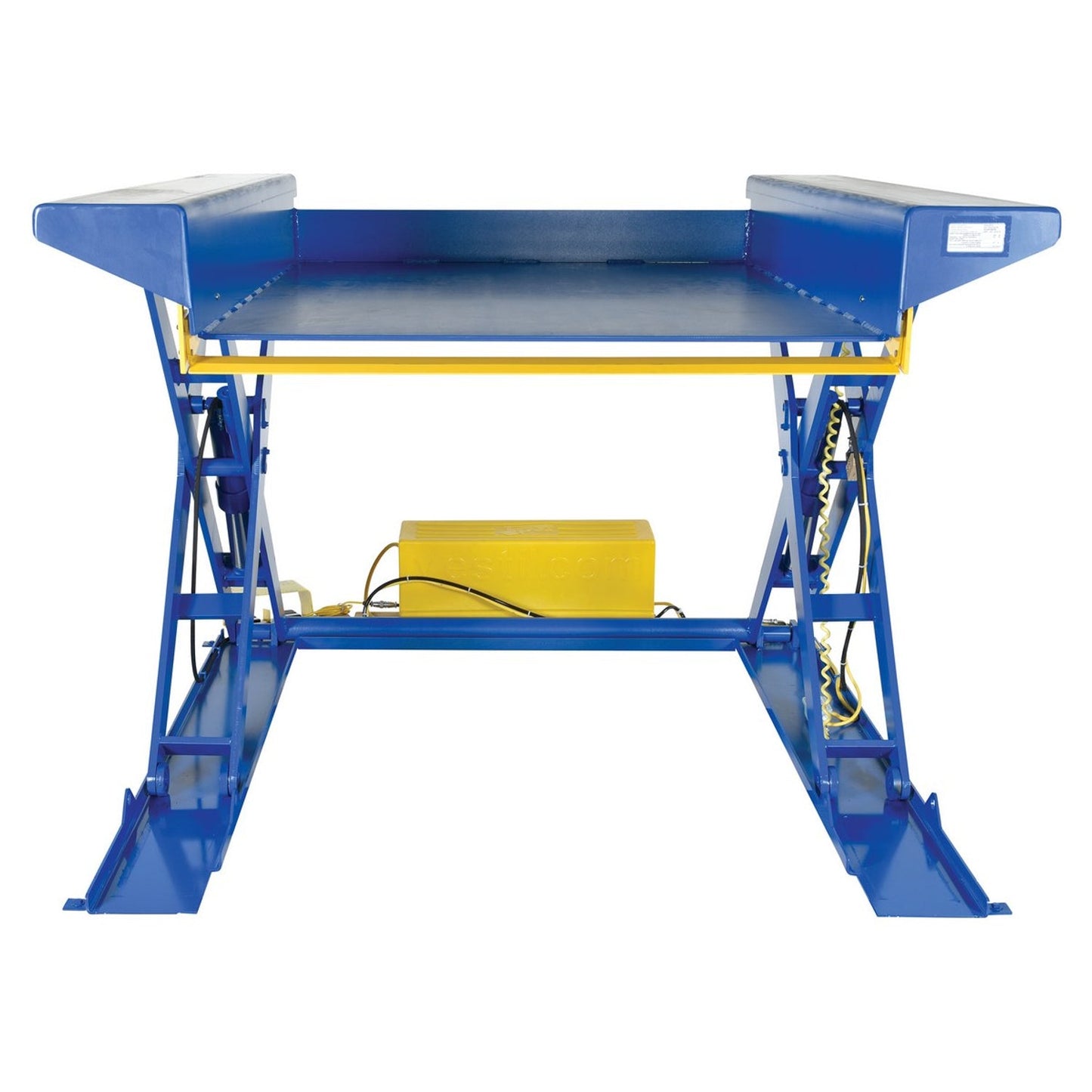

A low-profile scissor table that sits close enough to the floor for a pallet truck to roll straight onto it. Load at ground level, raise to 48", and the operator works at a comfortable height instead of bending over a pallet all day.
Because the deck loads from floor level, there's no pit to excavate and no ramp to build — which is usually what makes ground lifts the practical choice over a standard scissor table. Common in packing, assembly, machine tending and order build, anywhere pallets get worked by hand.
An entry-side electric toe guard stops the table if anything intrudes at the pinch point while it descends. An internal velocity fuse holds the platform if a hydraulic hose or fitting ever lets go, and an upper travel limit switch stops the table at full height to spare the motor.
4,000 lb uniform capacity
52" x 70" platform, raises to 48"
Ultra-low profile deck — load directly with a pallet truck, no pit or ramp
Entry-side electric toe guard protects the pinch point on descent
Internal safety velocity fuse holds the platform on hose or fitting failure
Upper travel limit switch reduces motor wear
Totally enclosed motor; remote power unit
Maintenance prop included
Optional accordion skirting available
Uniform Capacity: 4,000 lb
Platform Size: 52" x 70"
Raised Height: 48"
Net Weight: 2,348 lb
Power Supply: Specified at order — confirm your facility voltage before we place the order
Lead Time: approx. 70 working days from approved drawing
Warranty: 1 year limited
Ordering notes. Built to order. Vestil requires a signed approval drawing before production begins and the lead time above starts from that signature. Orders are non-cancellable and non-returnable once placed.
Shipped from Vestil in Angola, Indiana. At over 2,000 lb on a 70-inch deck this moves as oversize freight — contact us before ordering if you need liftgate or inside delivery.
