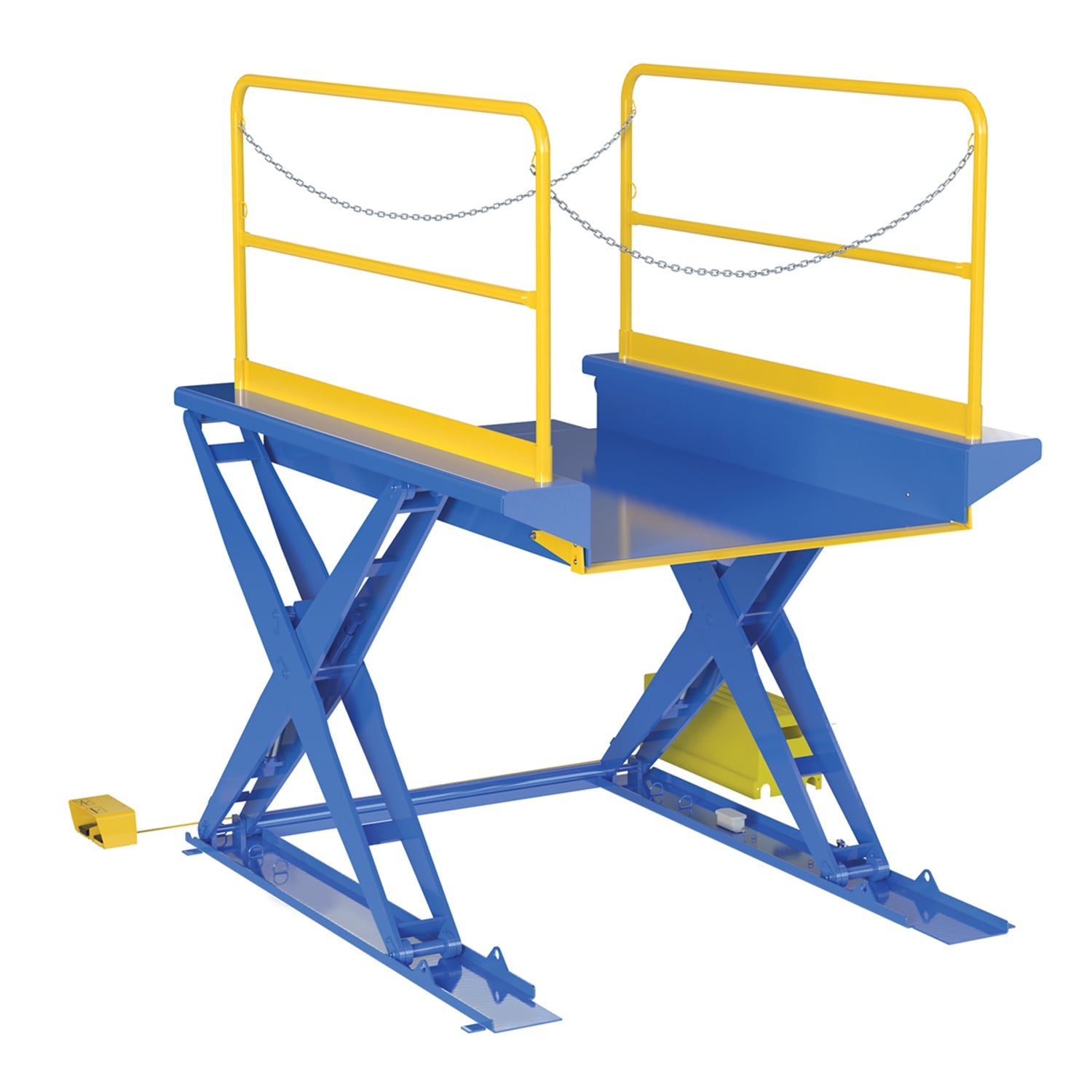

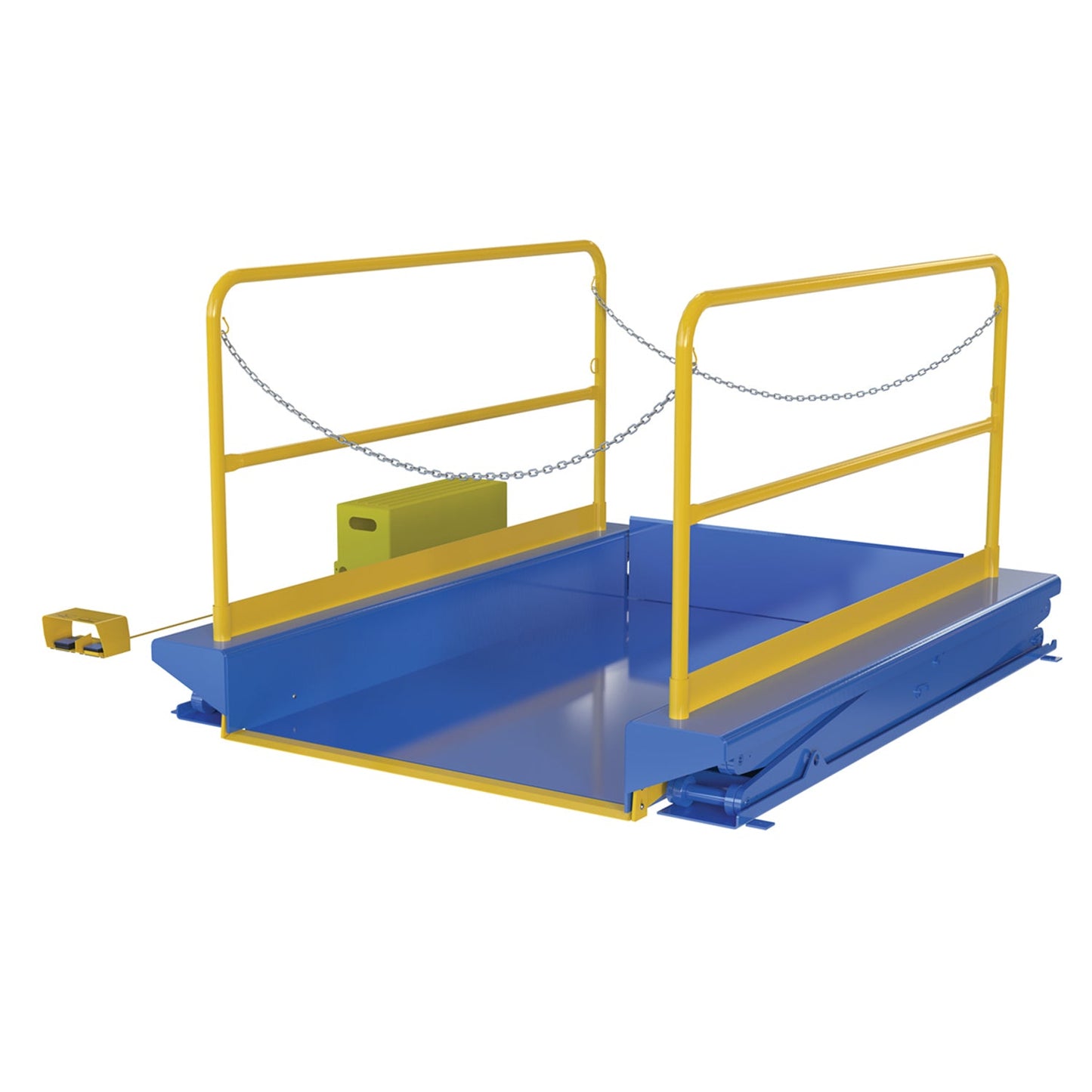

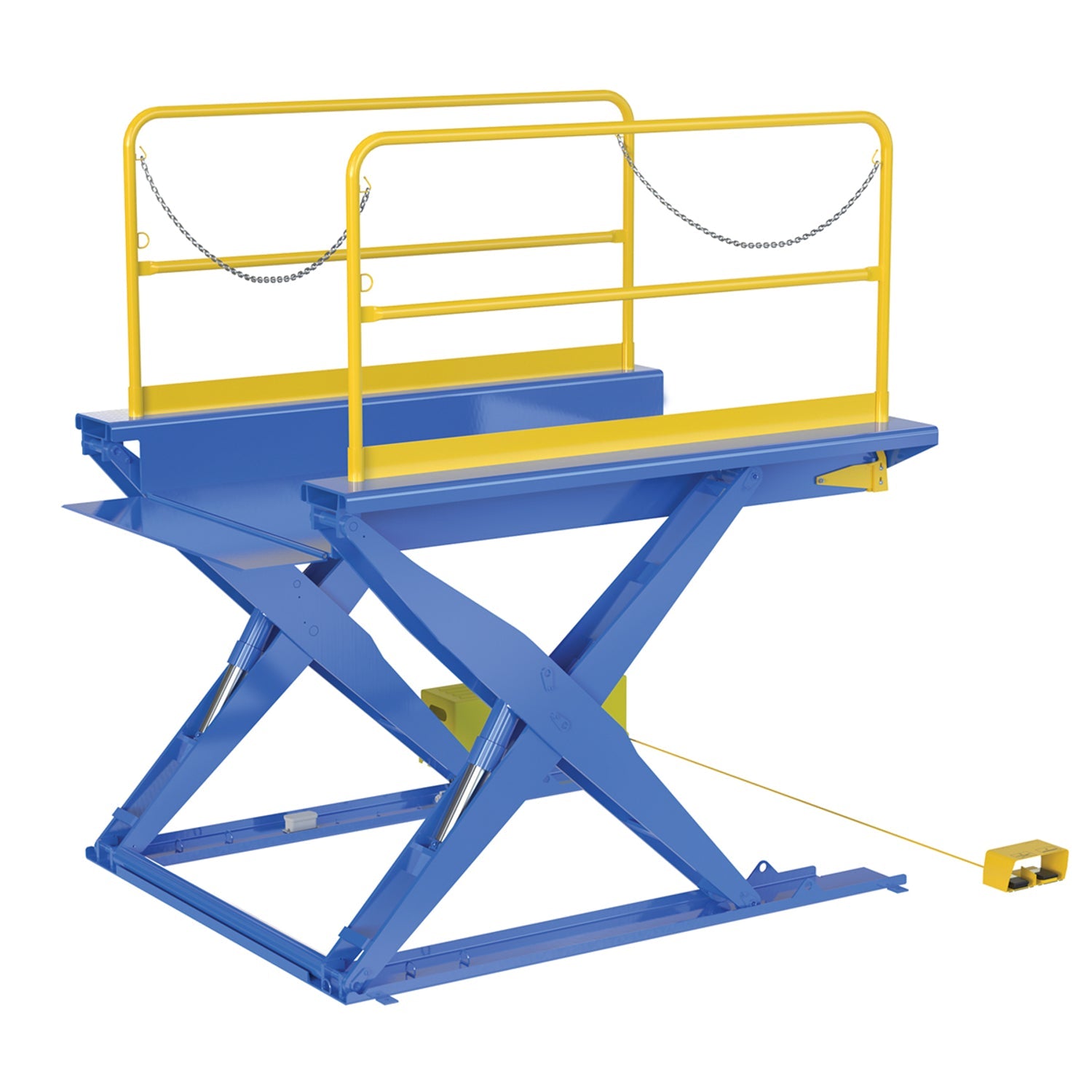

Vestil EHLTG-5284-3-54 Ground Lift Scissor Table with Handrails — 52" x 84", 3,000 lb

Vestil EHLTG-5284-3-54 Ground Lift Scissor Table with Handrails — 52" x 84", 3,000 lb Capacity

The wider of the two Vestil ground lift tables with handrails. The 52" deck gives more clearance either side of a standard 48" pallet, which matters when the load overhangs or when an operator needs room to work around it at height.

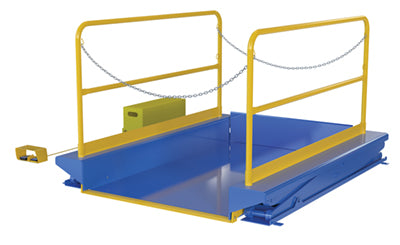

Like its 44" sibling, the deck sits at ground level so a pallet truck can roll straight on — no forklift and no dock required — then raises the load to a comfortable working height of up to 54". It's a practical answer for loading and unloading semi trailers at sites without a dock leveller.

Foot control is standard so the operator's hands stay on the load, and the remote power unit can be positioned up to eight feet from the table.

• 3,000 lb uniform capacity
• 52" x 84" platform, raises to 54"
• Extra deck width for overhanging loads or working room at height
• Ground-level deck — load directly with a pallet truck

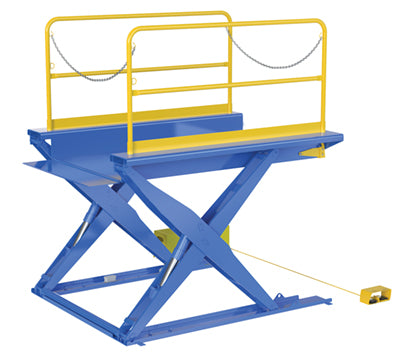

• Full-length guardrails
• Entry-side electric toe guard protects the pinch point on descent
• Internal velocity fuse holds the platform if a hose or fitting fails
• Upper travel limit switch stops the table at height and reduces motor wear
• Foot control standard; hand-held pendant available
• Totally enclosed motor; remote power unit mounts up to 8 ft away
• Maintenance prop included
• Optional accordion skirting and steel rollover bridge

Ordering notes. This model is built to order. Vestil requires a signed approval drawing before production begins, and the lead time above starts from that signature. Orders are non-cancellable and non-returnable once placed.

Shipped from Vestil in Angola, Indiana. At roughly 3,000 lb on an 84" deck this ships as oversize freight — contact us for a delivered quote to your postal code, including liftgate or inside delivery if you need it.
