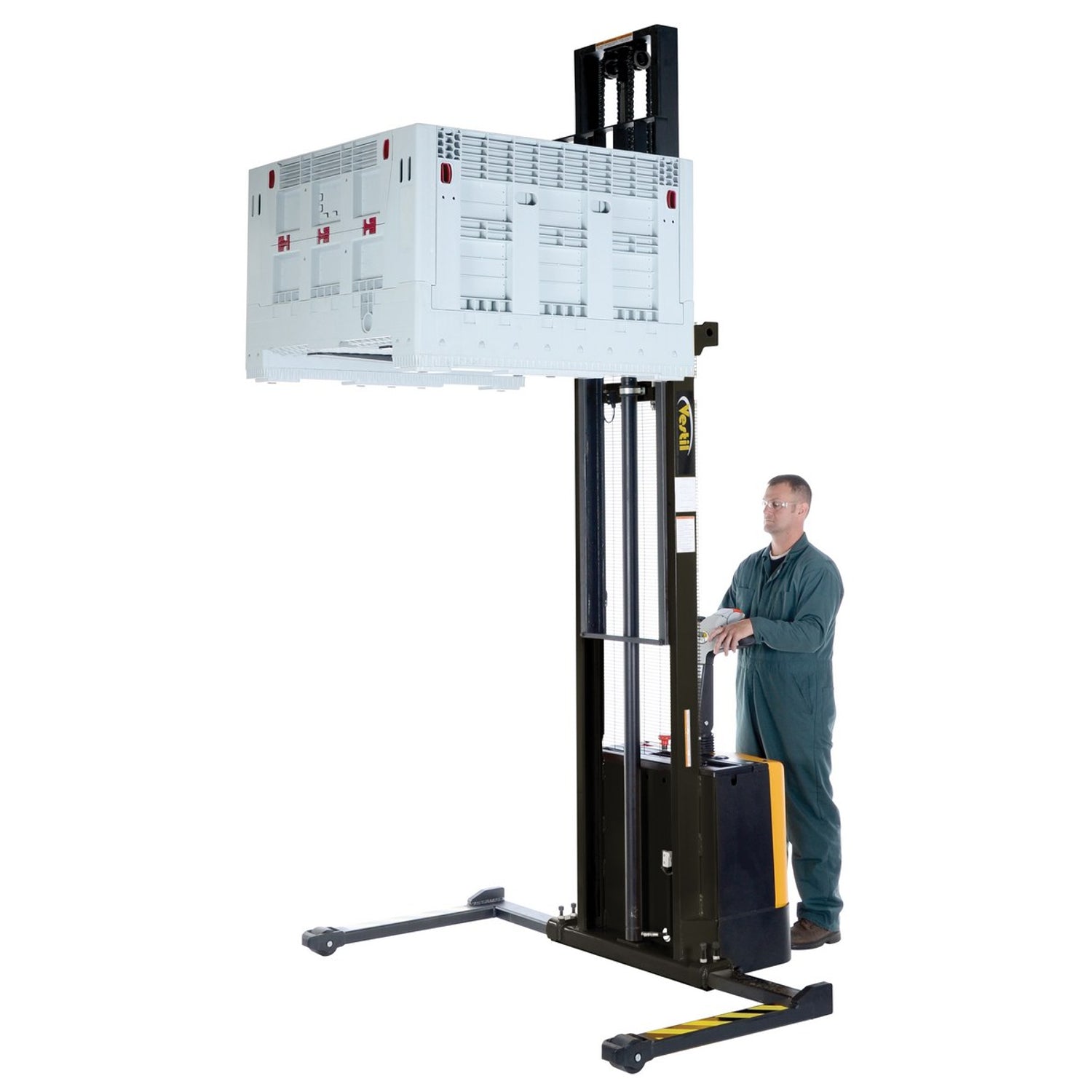

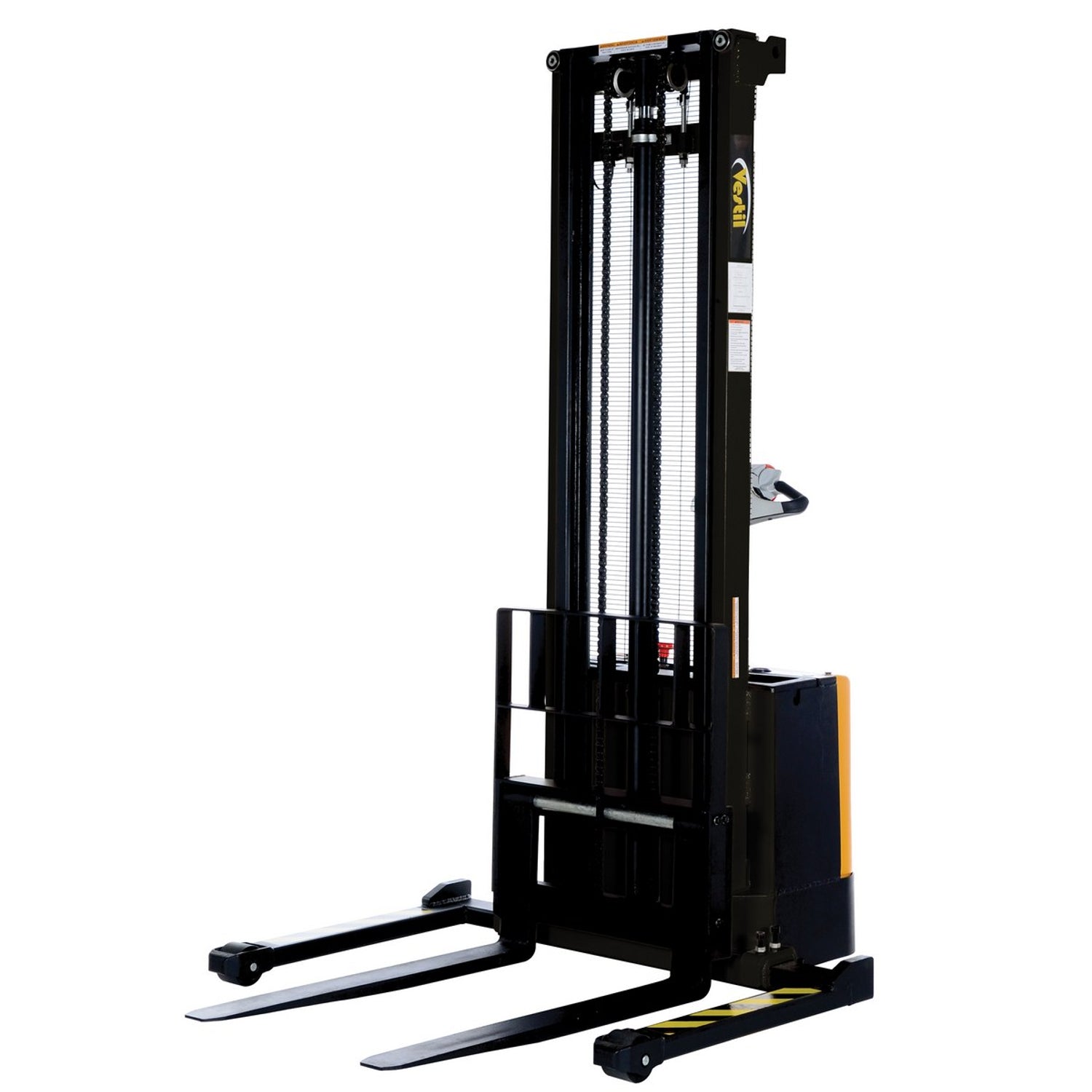

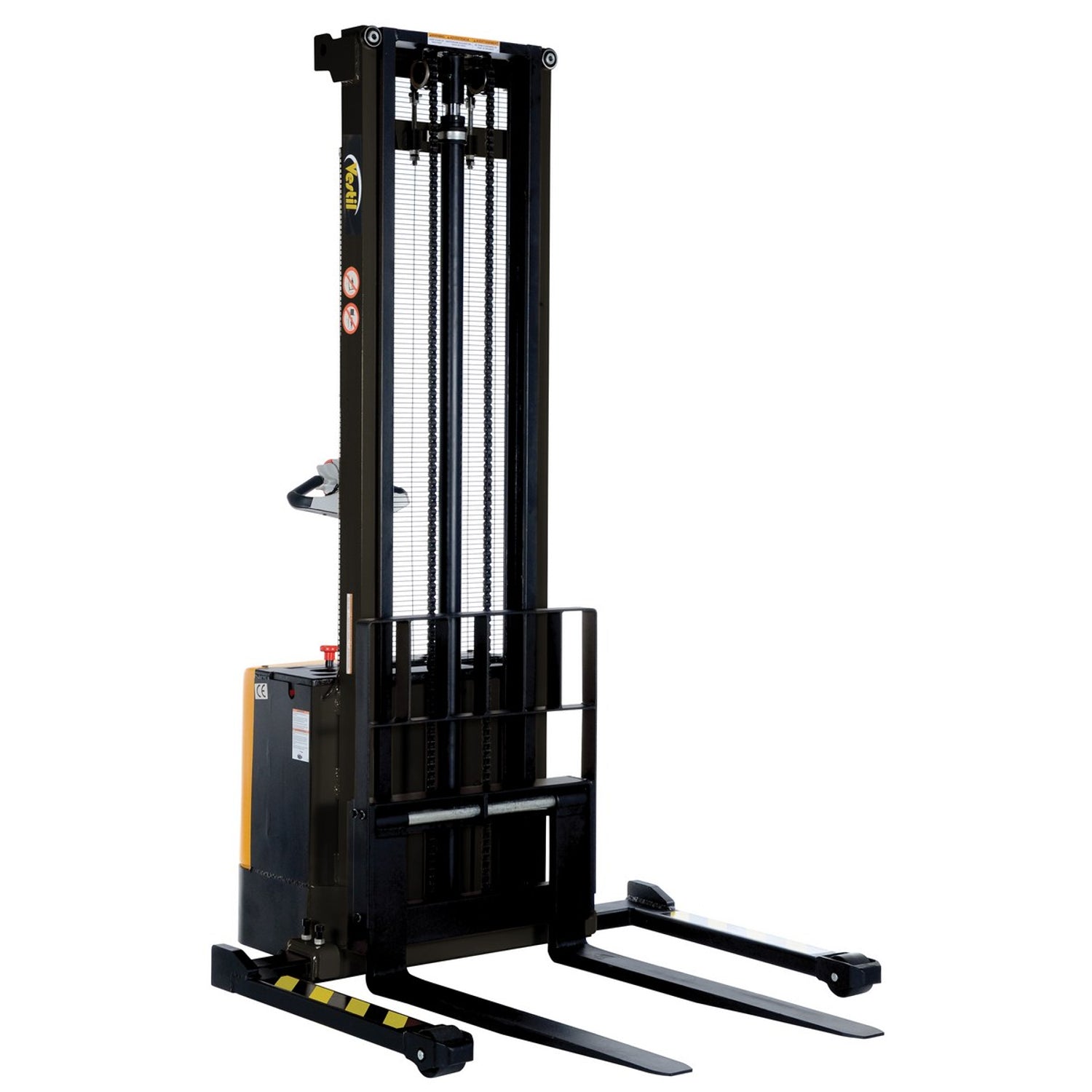

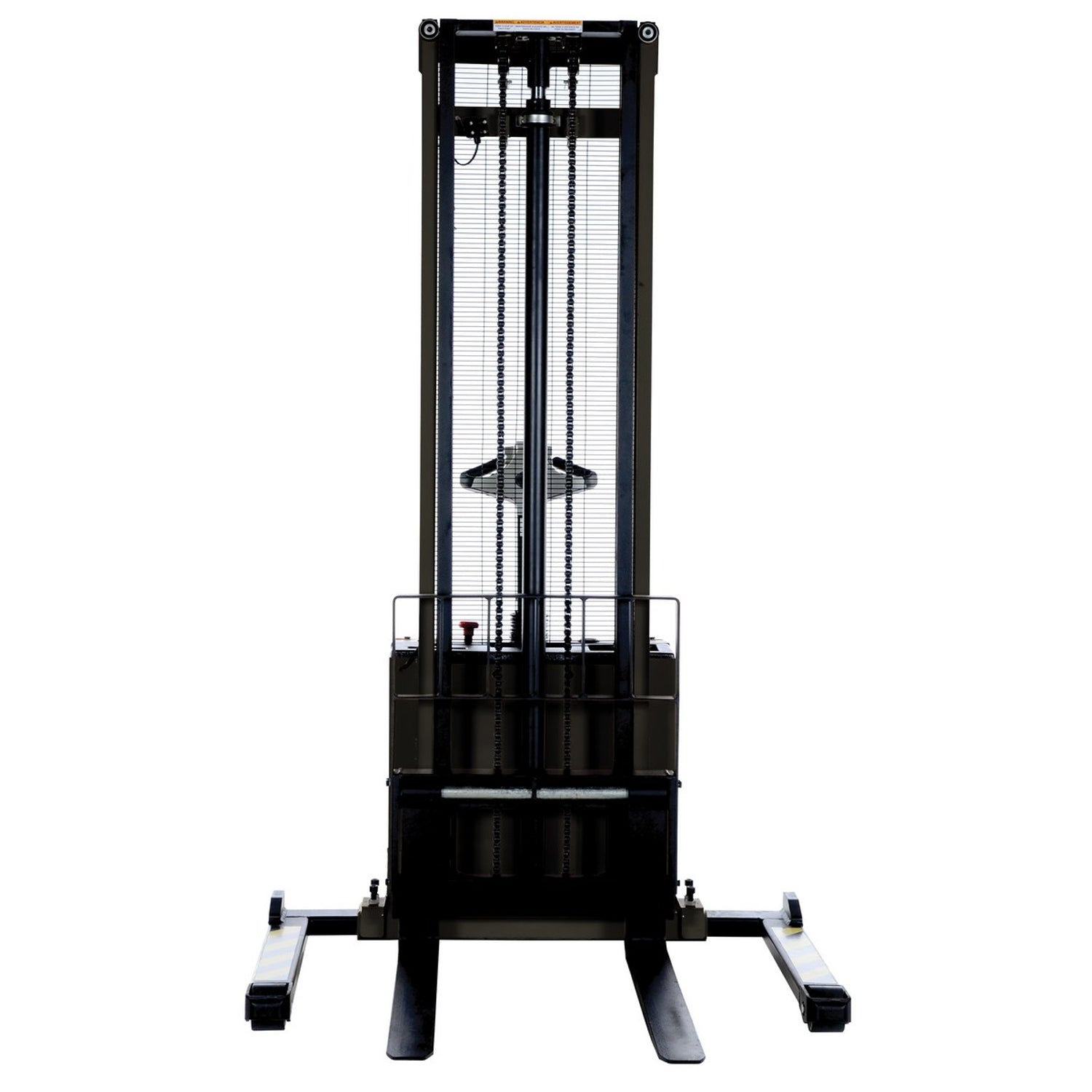

Powered drive and powered lift. The operator walks alongside and steers; the machine does the travelling and the lifting. That is the difference between this and a semi-electric unit, and on a floor where the same person is moving pallets all shift it is the difference that matters.
At 150" this is the tallest unit in the family — it reaches the top beam of most standard racking without bringing a forklift into the aisle.
Built by Vestil in Angola, Indiana. Heavier and more solidly built than the imported walkie stackers in this category — and priced accordingly.
Capacity steps down in four stages as the mast goes up, which is normal for a mast this tall. Check the table below against the height you actually need to reach.
2,000 lb to 62" · 1,500 lb to 118" · 1,000 lb to 137" · 750 lb to 150"
Raises to 150", lowered height 2-1/8"
Adjustable forks / adjustable legs
Powered drive and powered lift
Single mast with safety shield, overall mast height 171-13/16"
24V drive motor 0.7 kW, 24V lift motor 2.0 kW
Two 12V/95 Ah batteries
Travel speed approx. 2.3 km/h loaded, 2.5 km/h empty
Steel construction, 1 year limited warranty
Capacity: 2,000 lb to 62" · 1,500 lb to 118" · 1,000 lb to 137" · 750 lb to 150"
Raised Height: 150"
Lowered Height: 2-1/8"
Forks / Legs: Adjustable forks / adjustable legs
Drive: Powered drive and powered lift
Overall Mast Height: 171-13/16"
Net Weight: 1,548 lb
Lead Time: approx. 3 working days
Warranty: 1 year limited
Shipped from Vestil in Angola, Indiana. Freight to Ontario and Quebec is a flat rate at checkout; contact us for a quote to other provinces or for liftgate and inside delivery.
