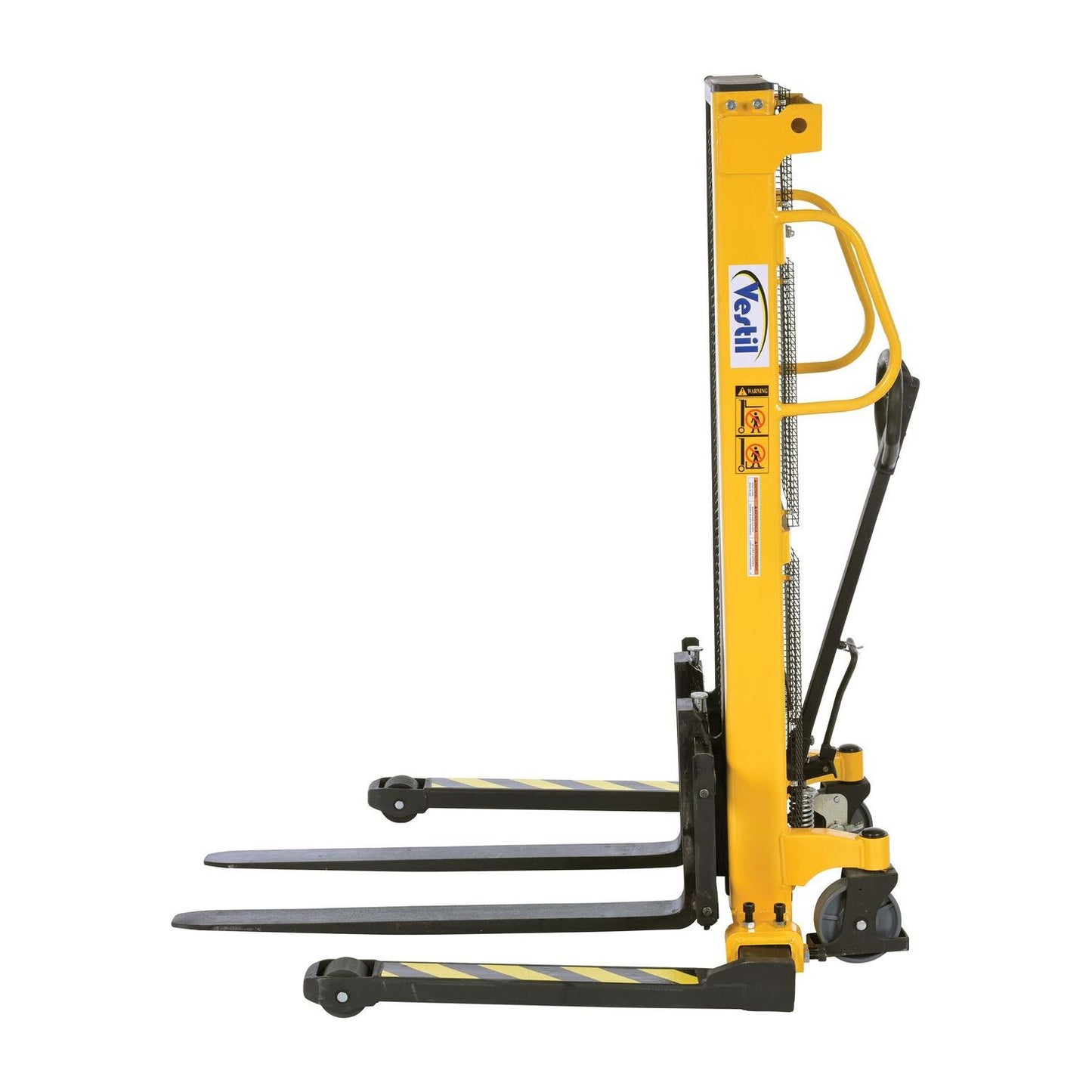

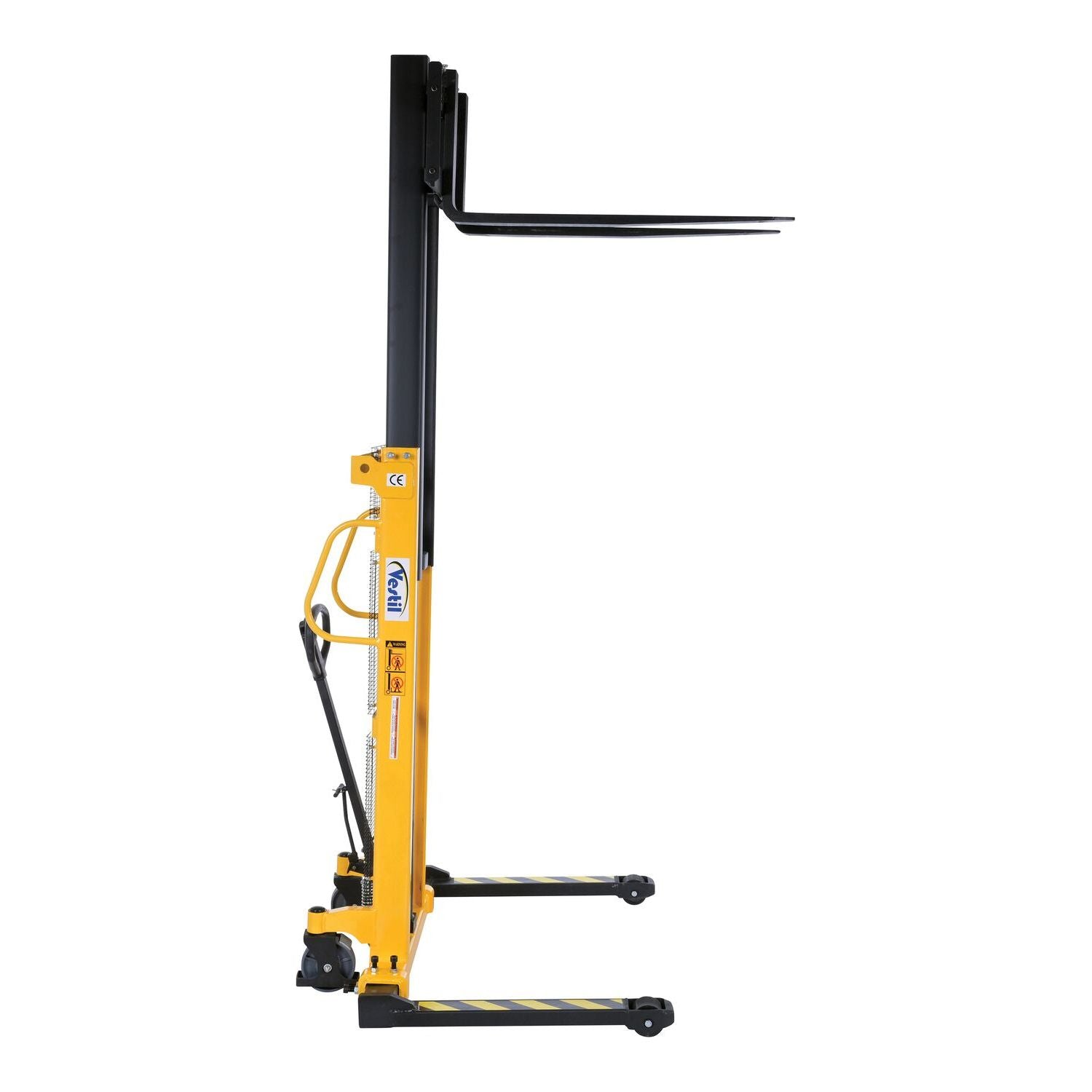

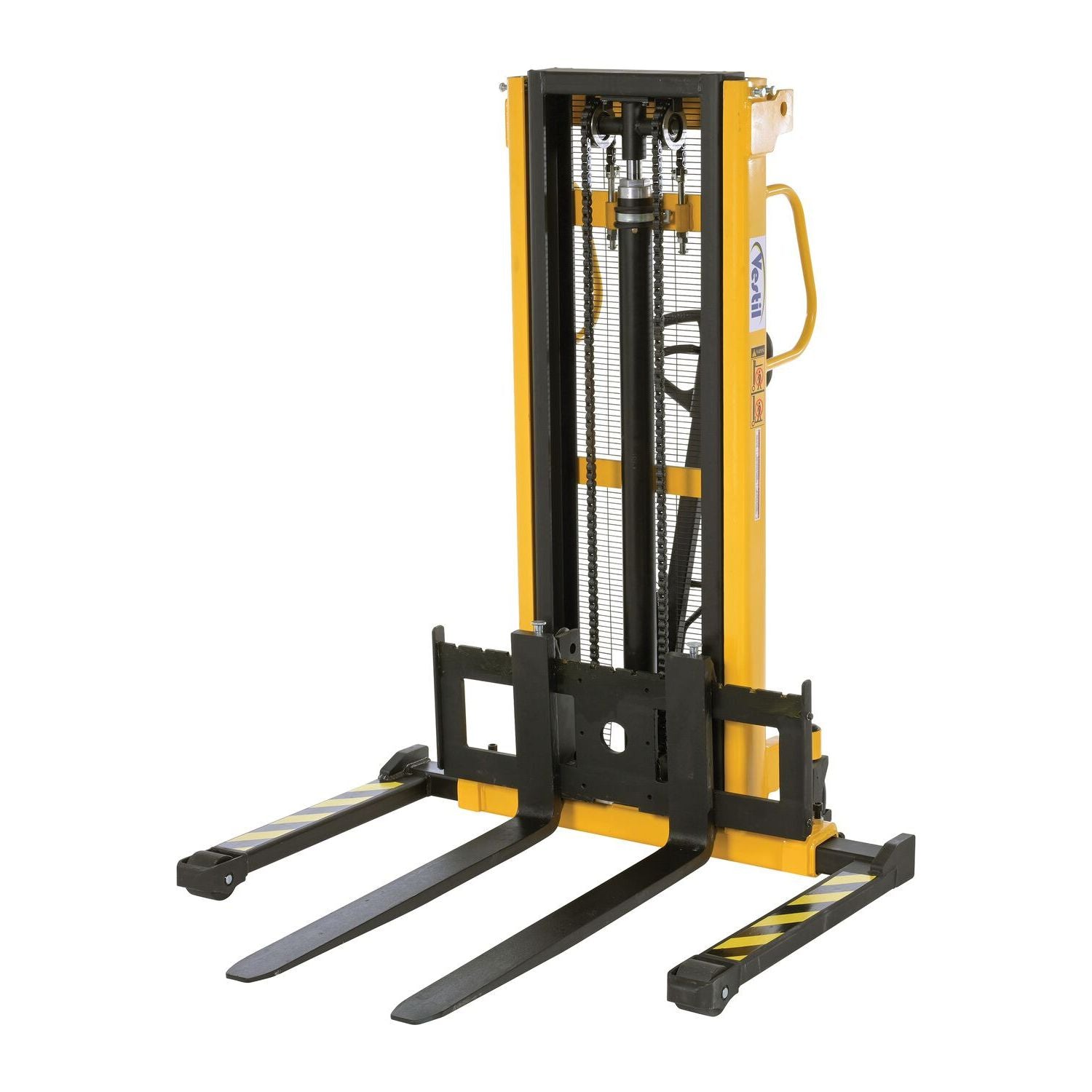

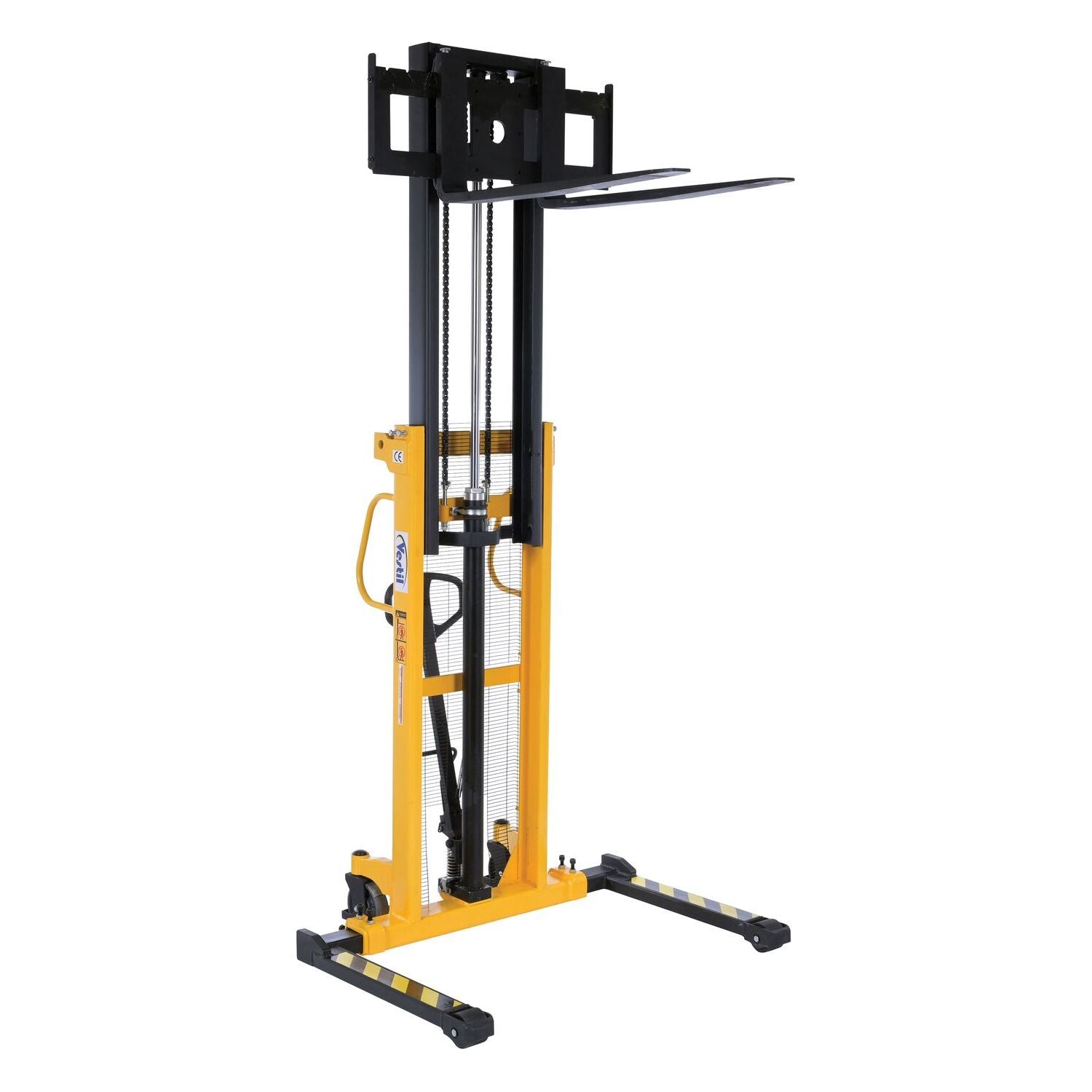

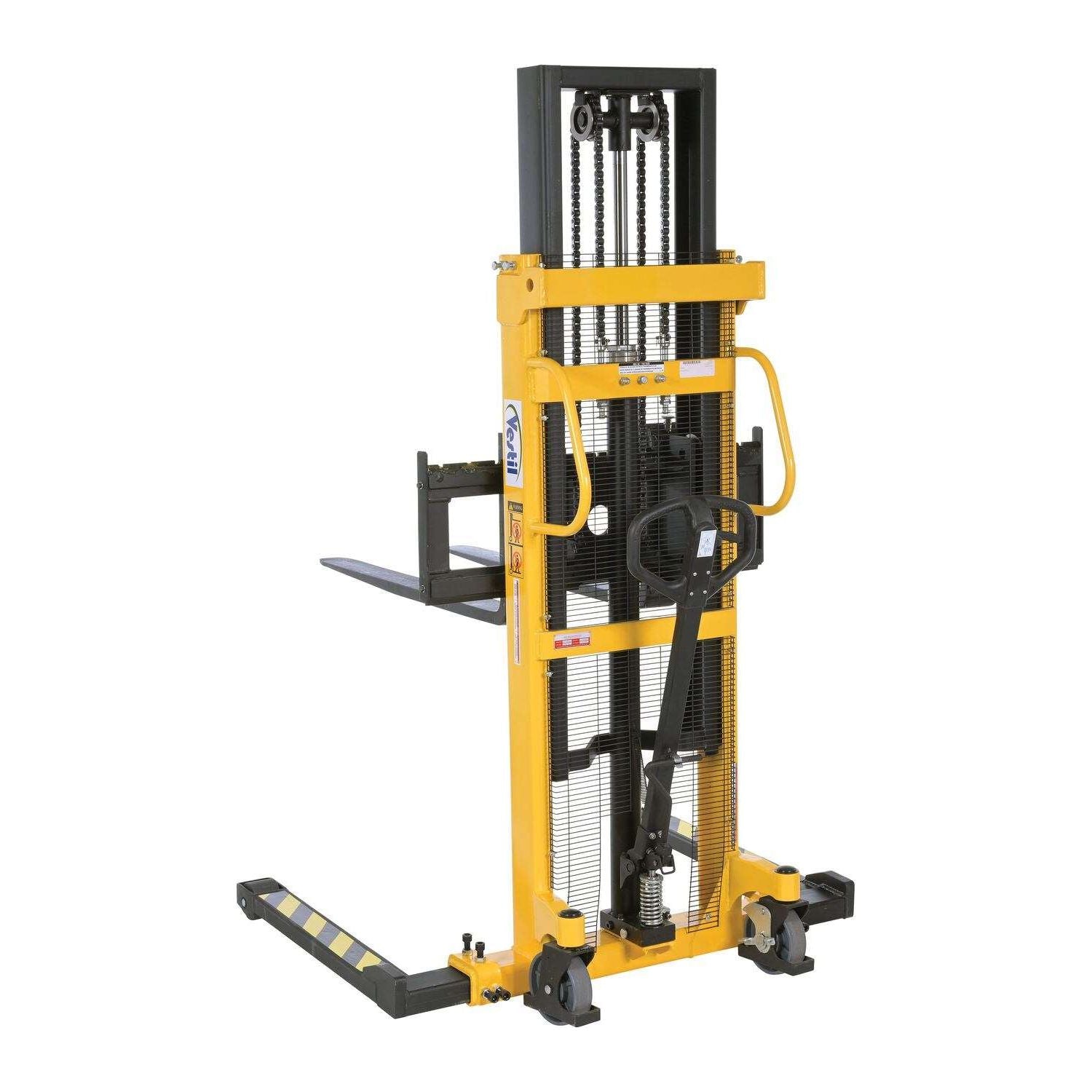

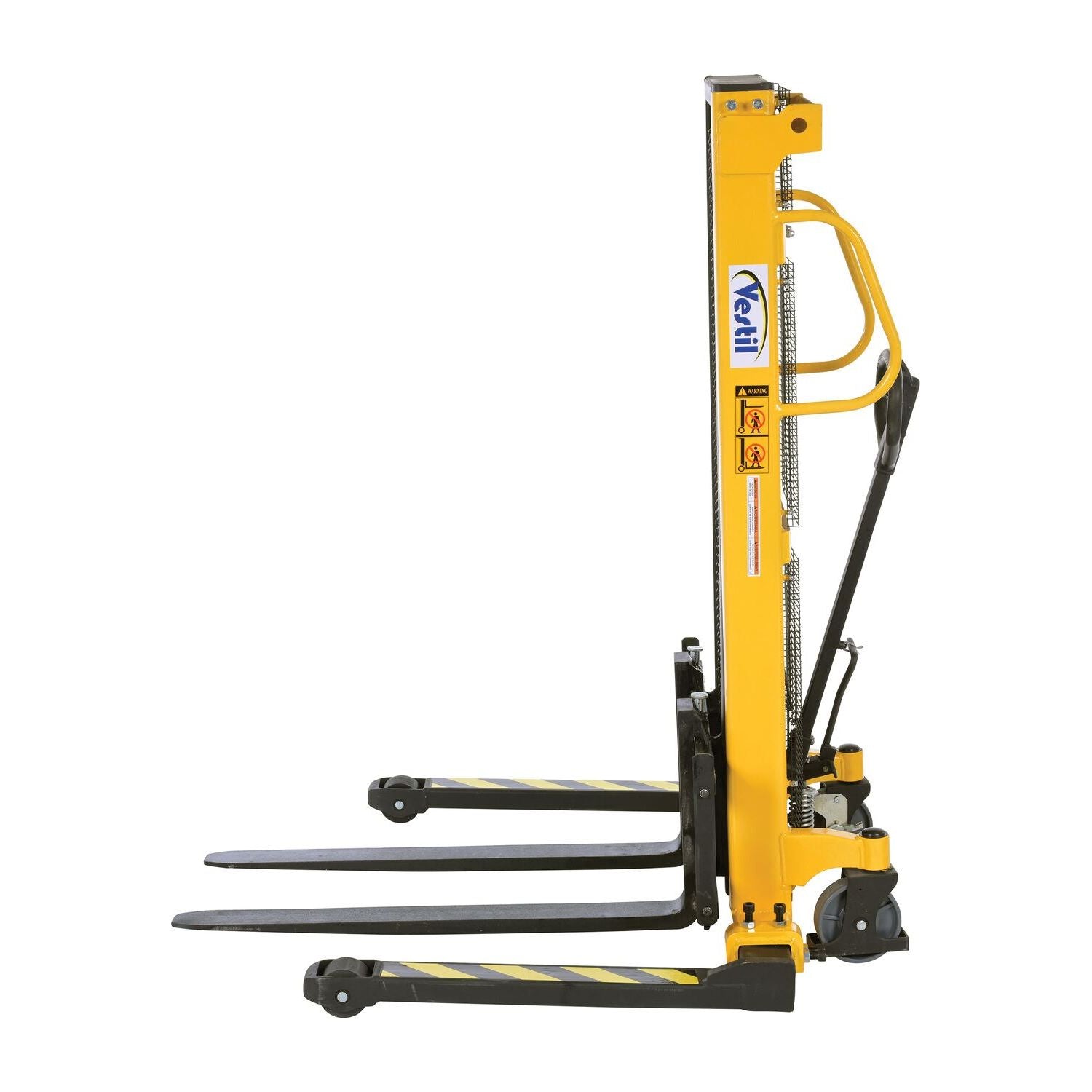

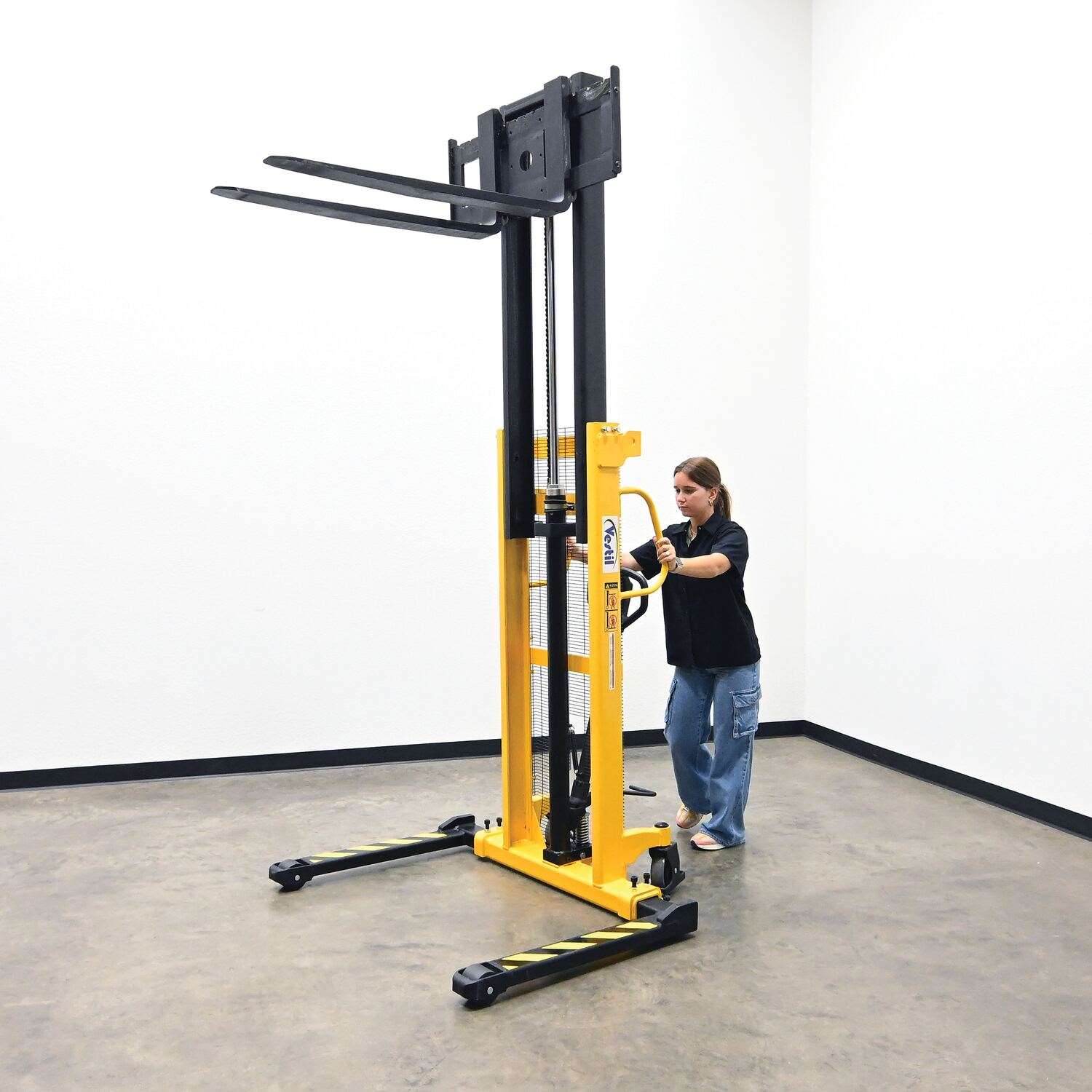

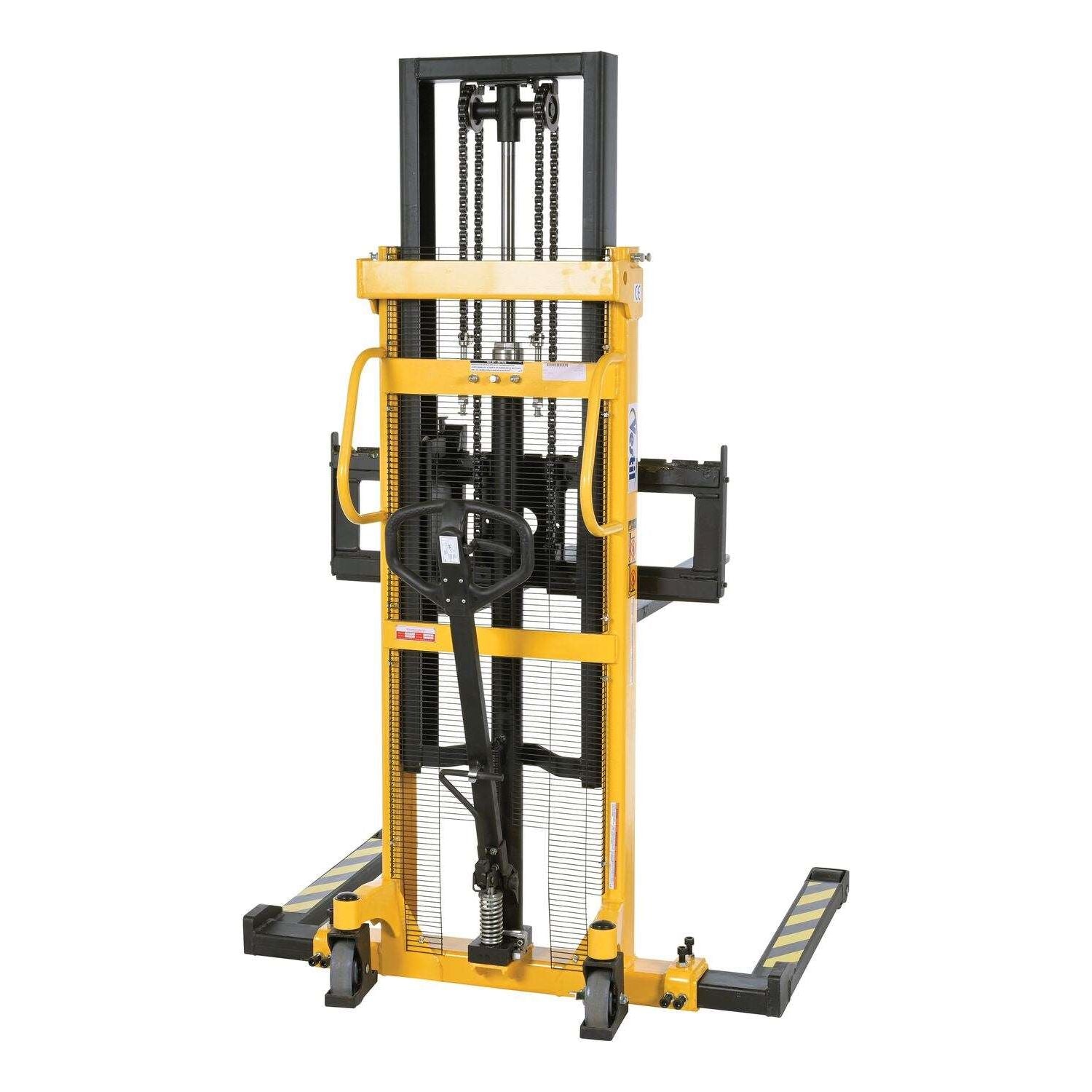

Steel Manual Stacker Adjustable Forks/Legs 2,200 Lb. Capacity Black

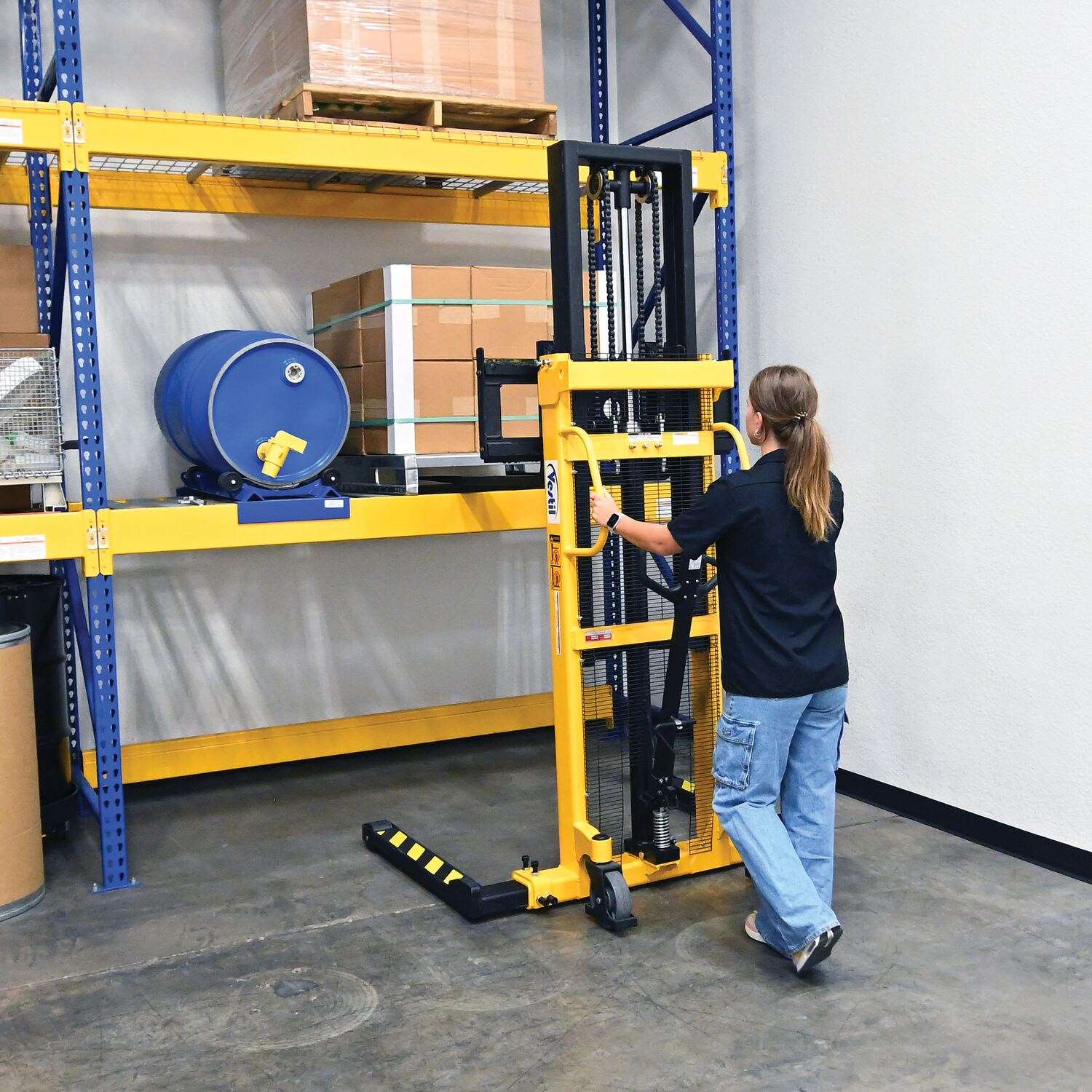

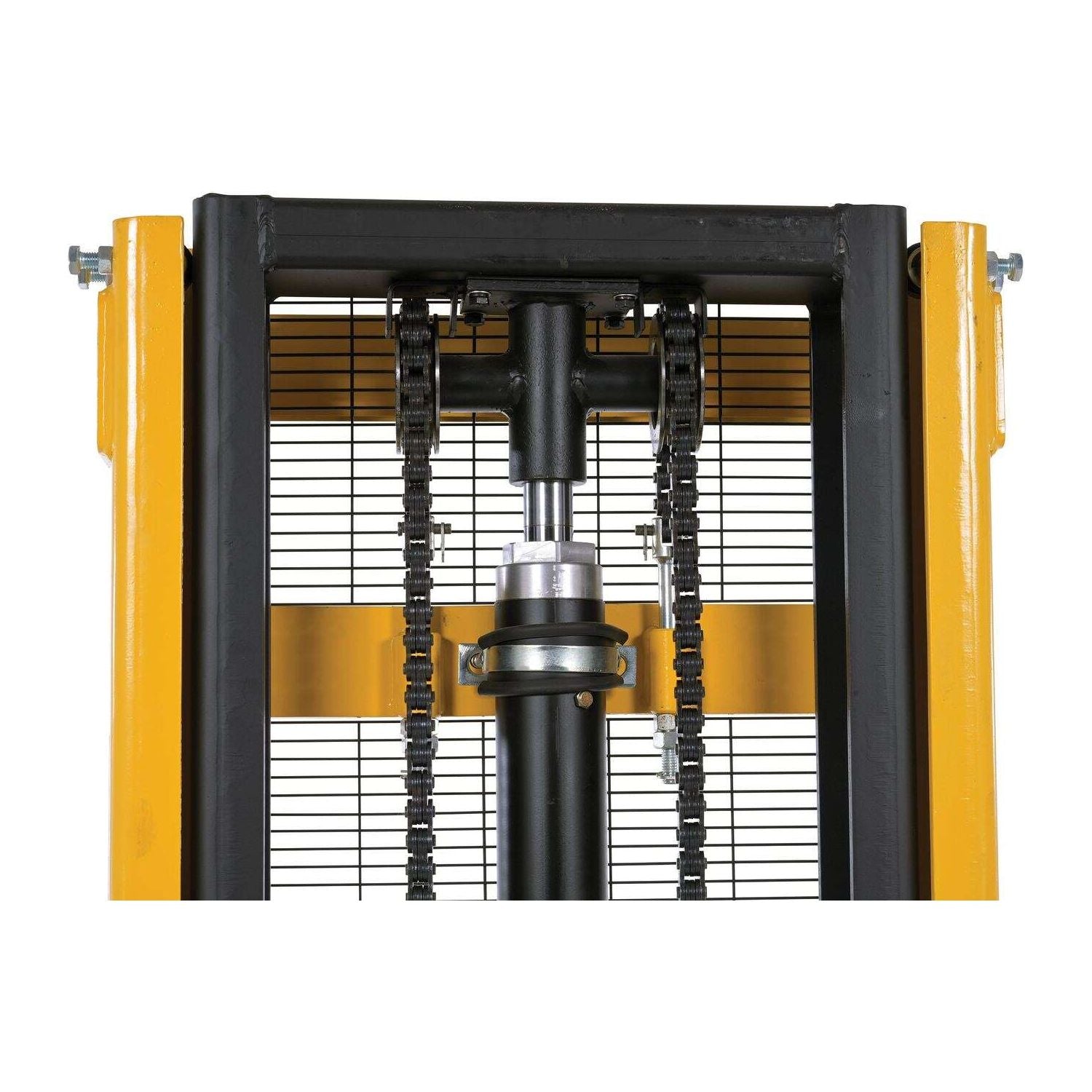

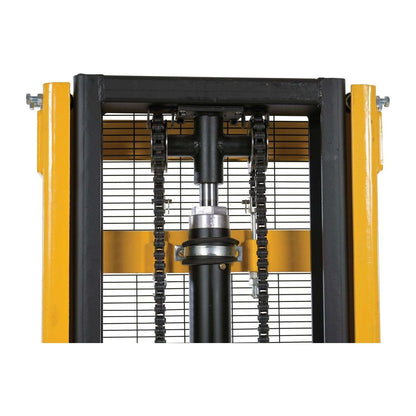

The manual stacker is ideal for use in various workplace applications. It is maintenance-free and easy to use. An upright welded mesh guard protects, while still providing excellent visibility. It features a heavy-duty mast and a unique winch design for easier and safer lifting. An optional removable platform is available.

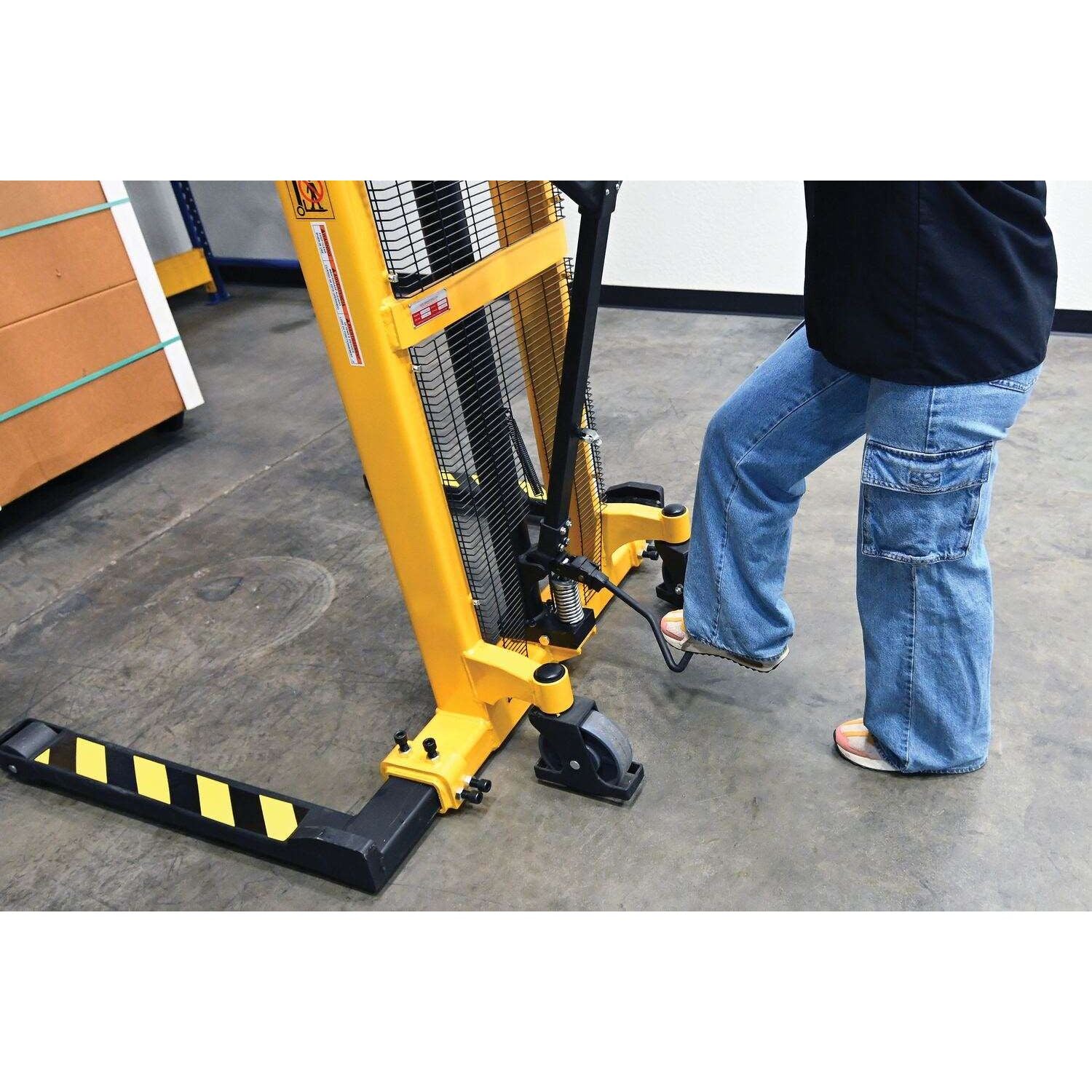

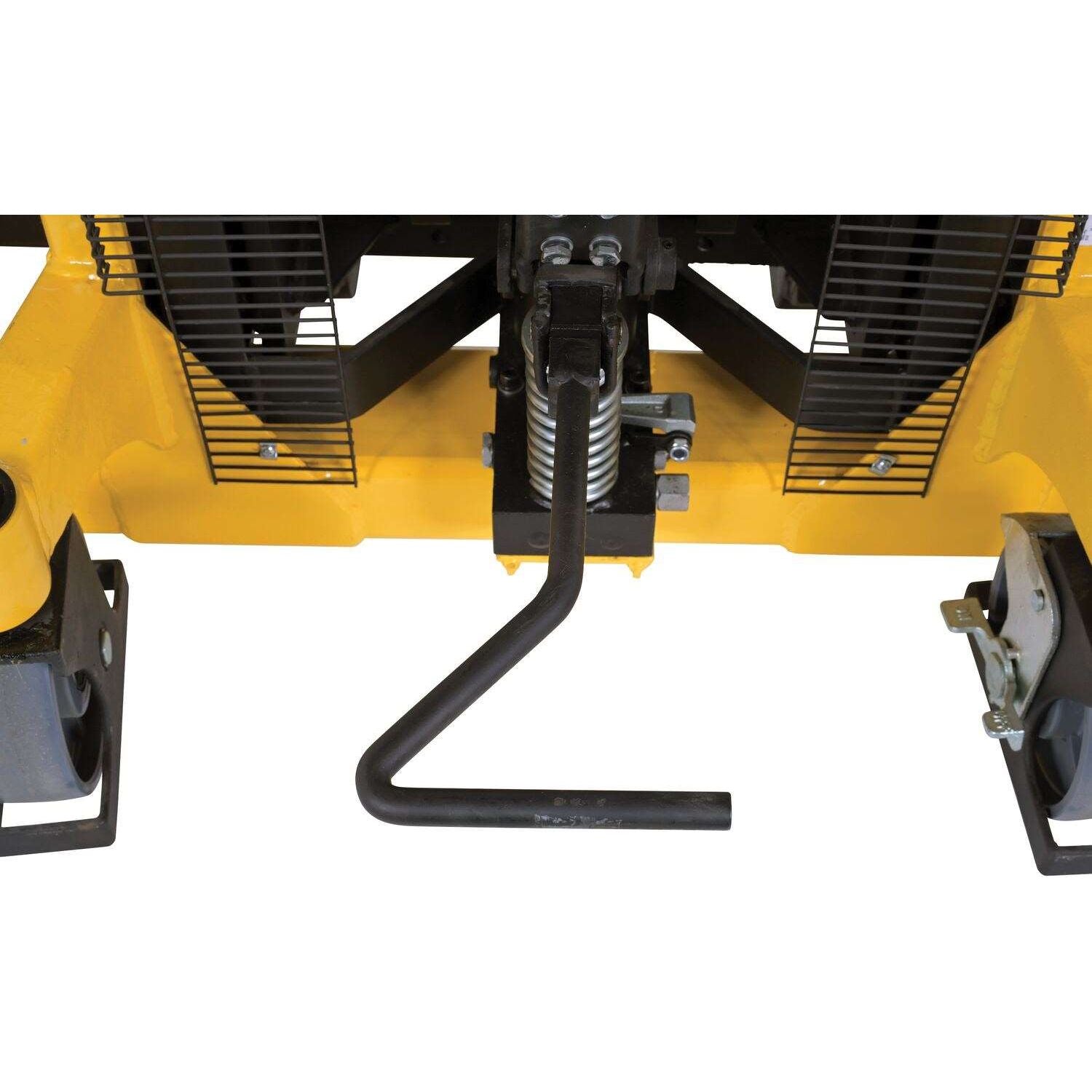

Both hand and foot-operated lift

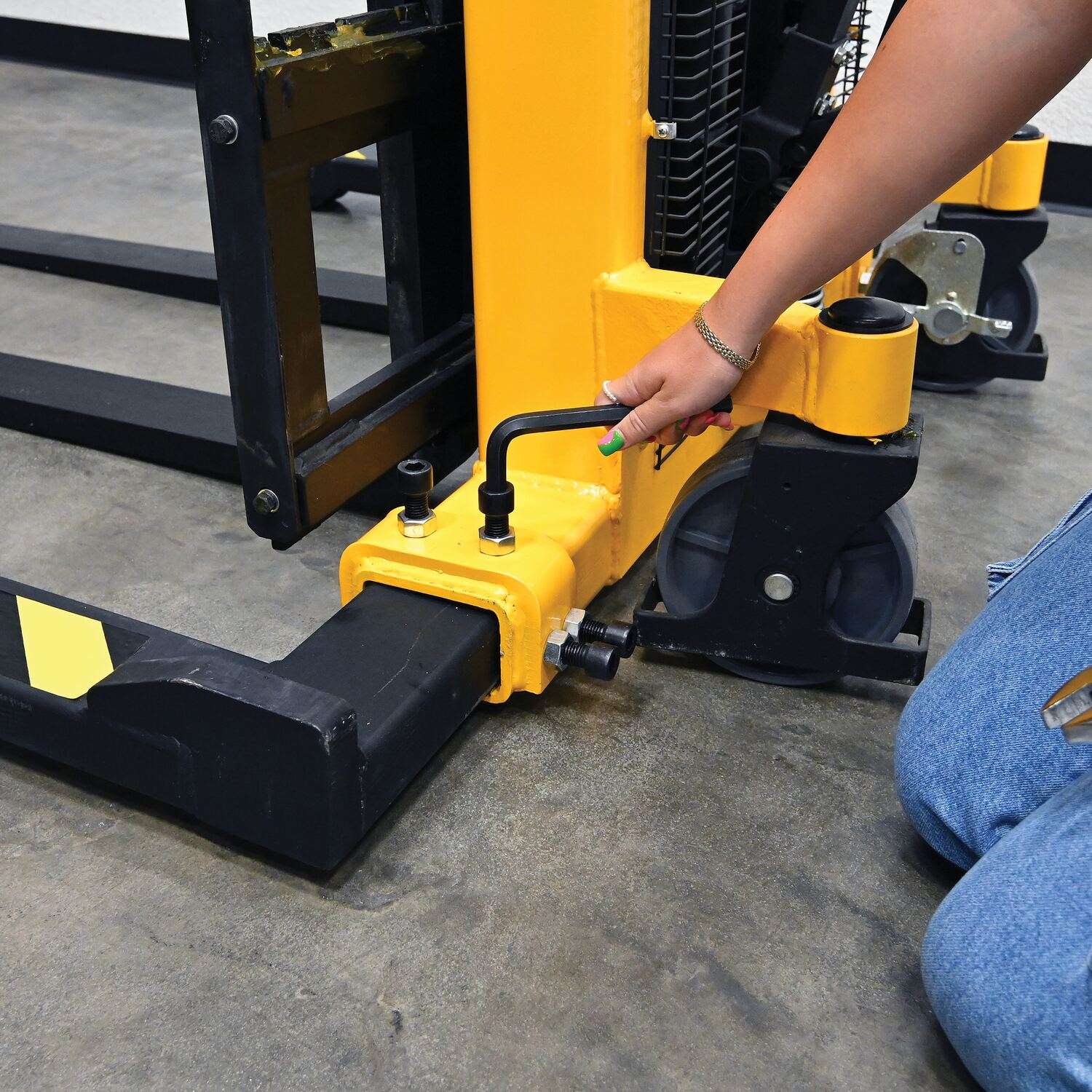

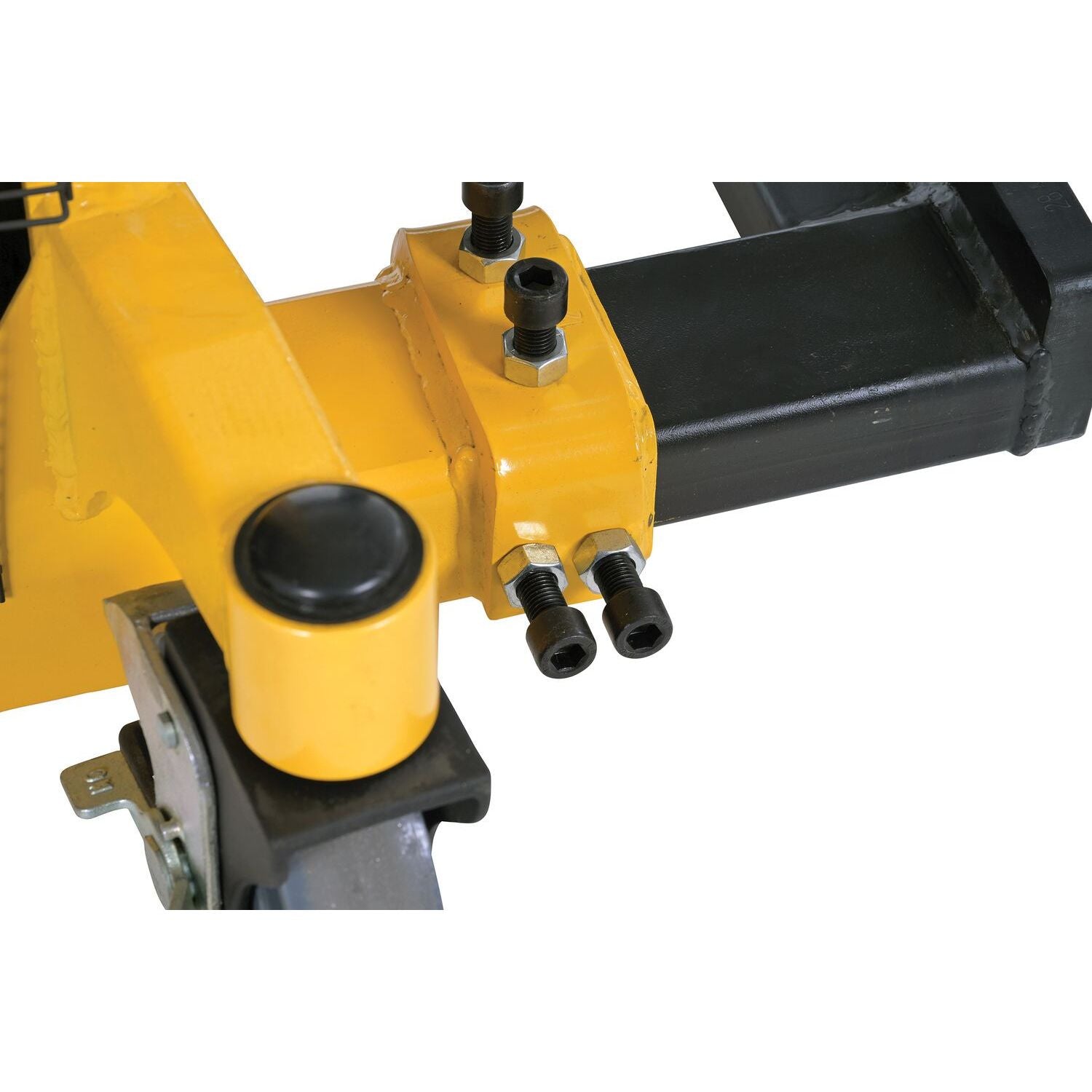

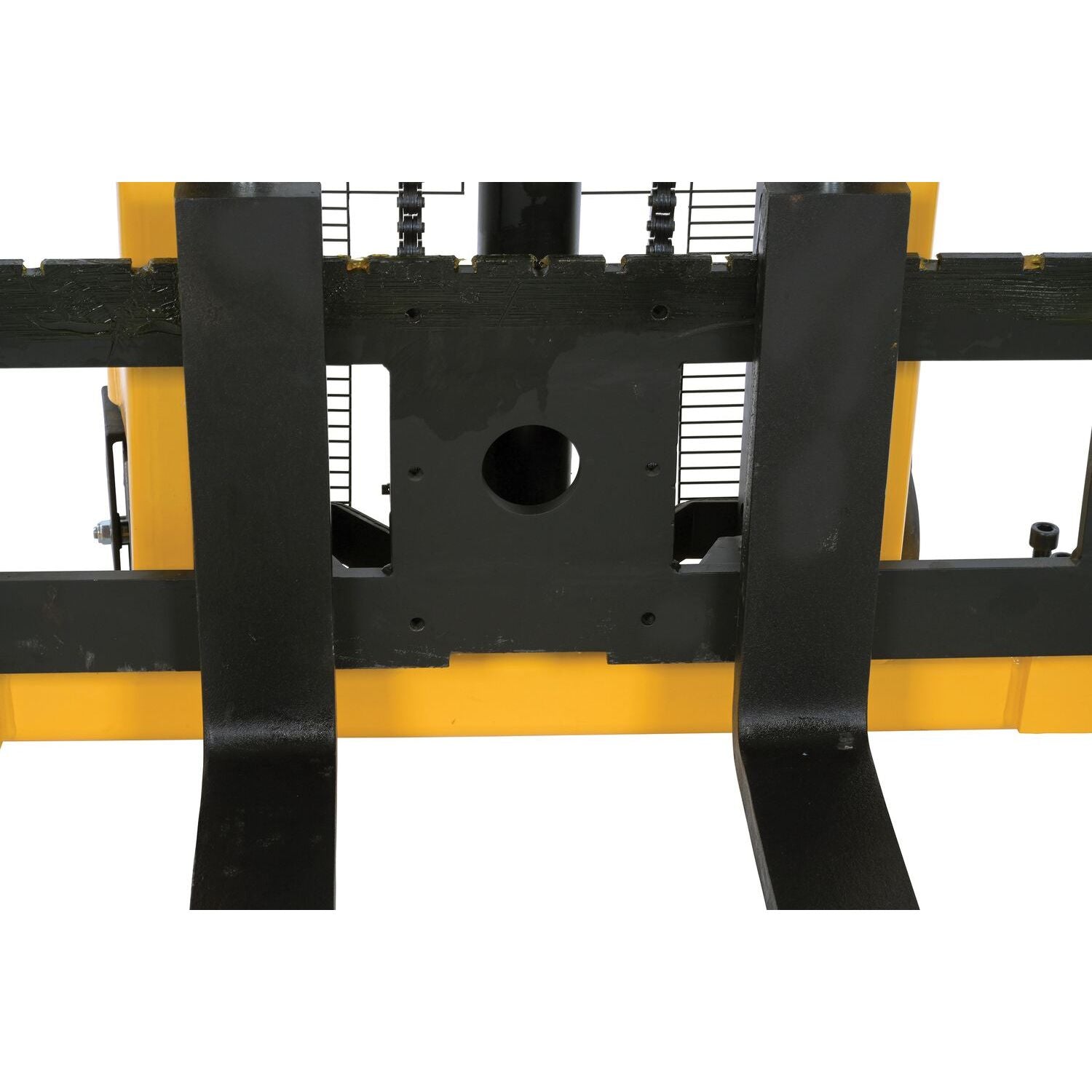

Adjustable forks and adjustable legs
Full height push handle allows for easy steering

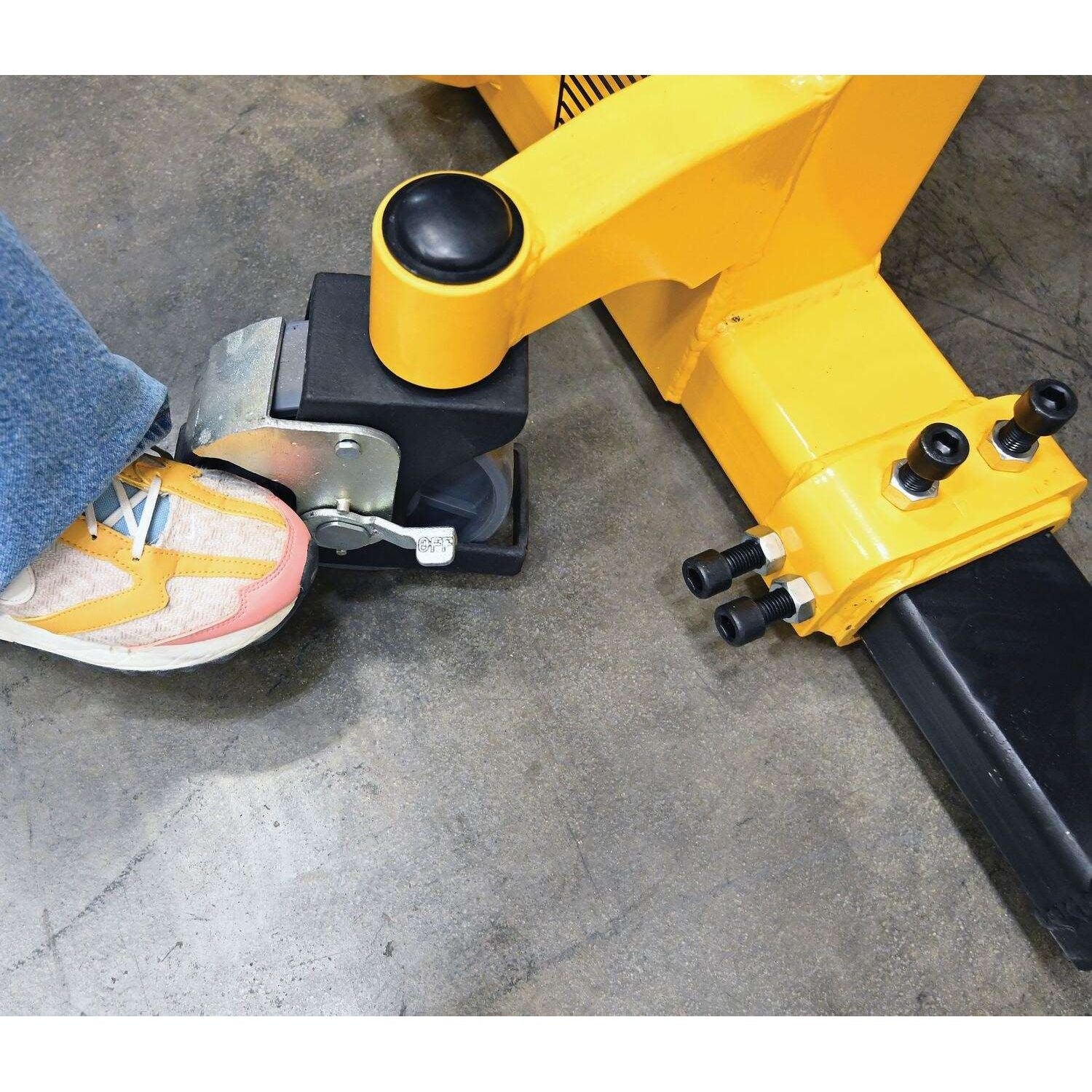

Two (2) rigid and two (2) swivel wheels with brakes
Uniform Capacity (lb.):2200
Service Range (in.):1.375 to 98.5
Horizontal Load Center (in.):24
Straddle Leg Minimum (in.):38 (I.D)
Straddle Leg Maximum (in.):50 (I.D)
Fork Adjustment Minimum (in.):7-7/8 (O.D)
Fork Adjustment Maximum (in.):26-3/4 (O.D)
Rear Caster Quantity/Diameter/Width (in.):(2) 7 x 2
Rear Caster Type:Swivel with Brake

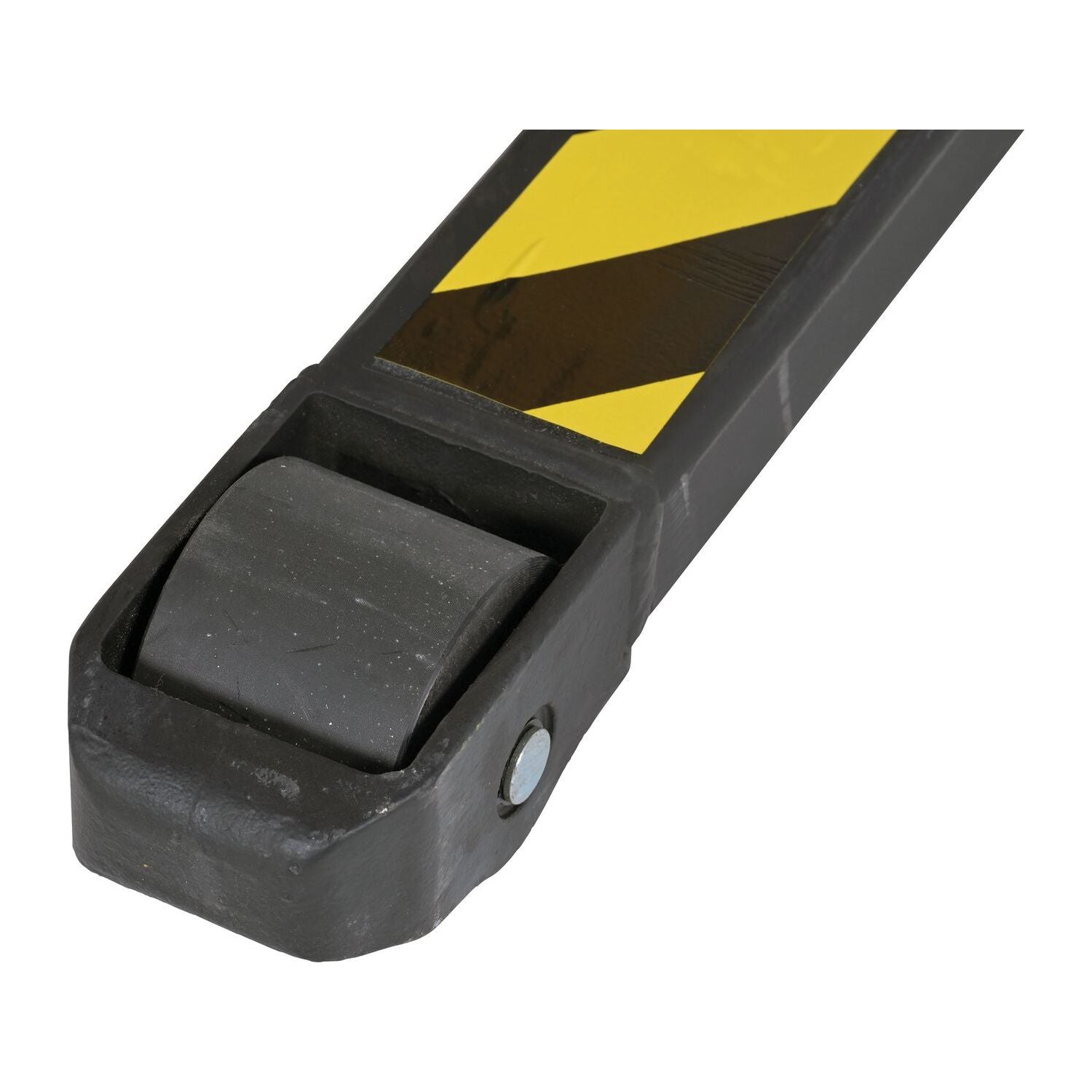

Front Caster Quantity/Diameter/Width (in.):(2) 4 x 3
