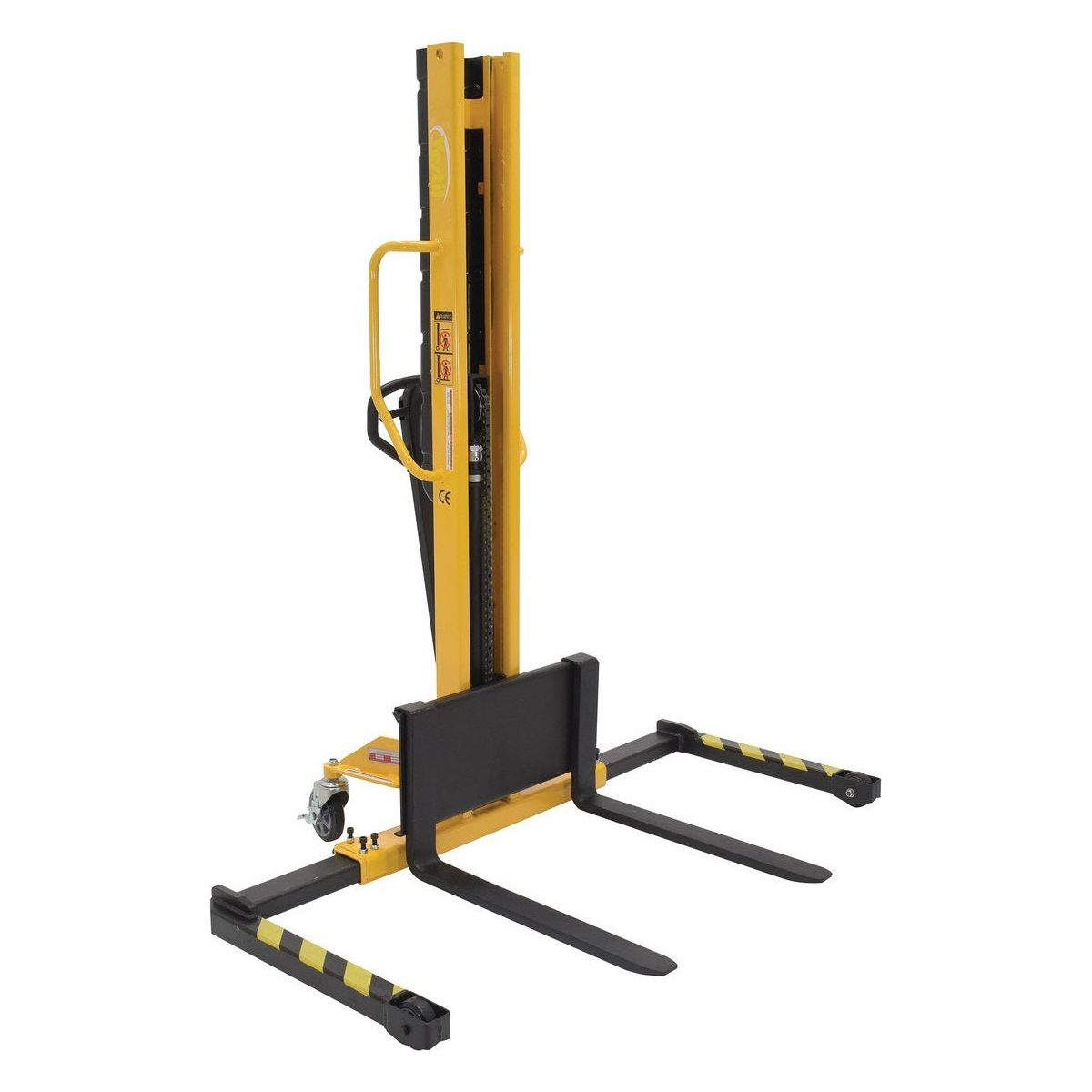

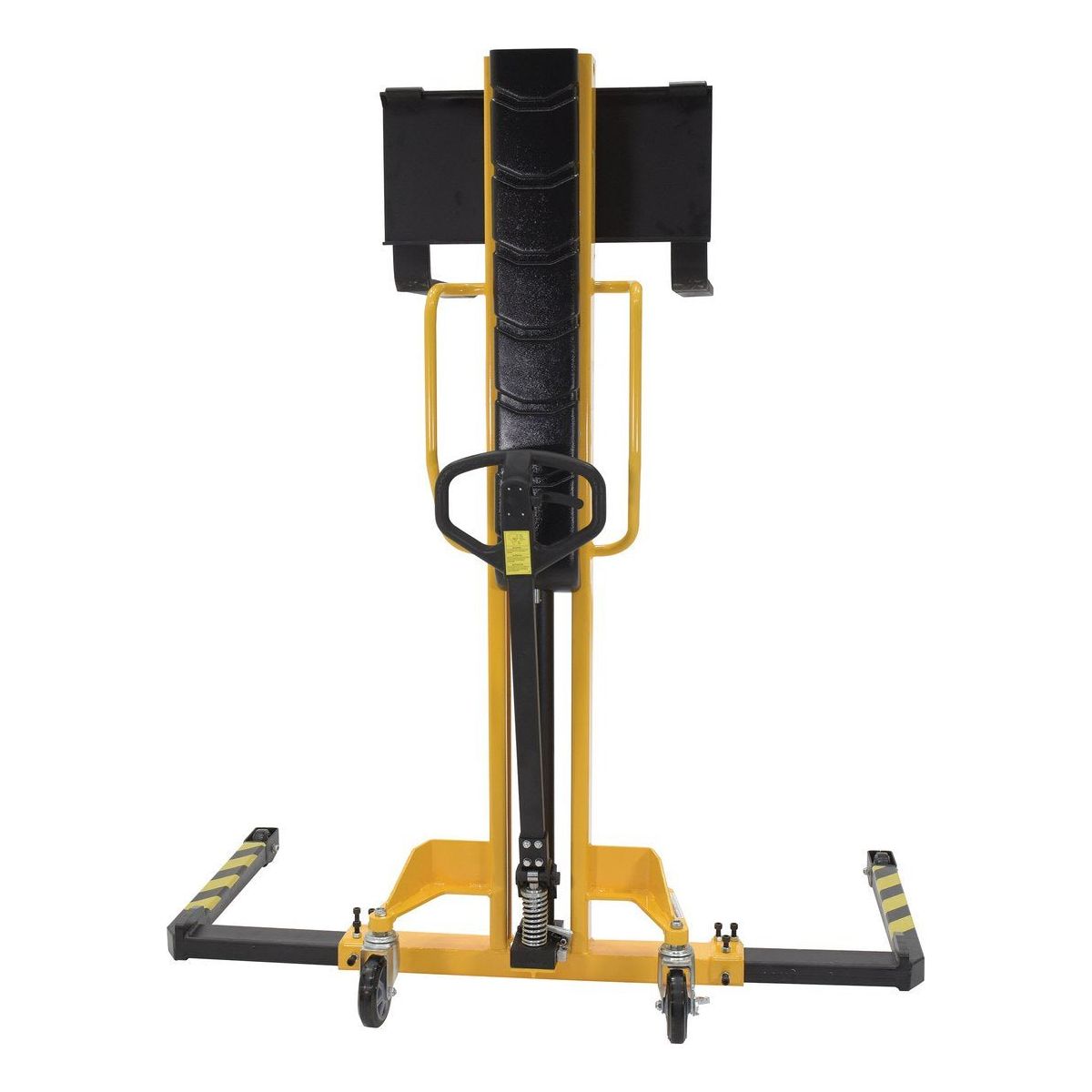

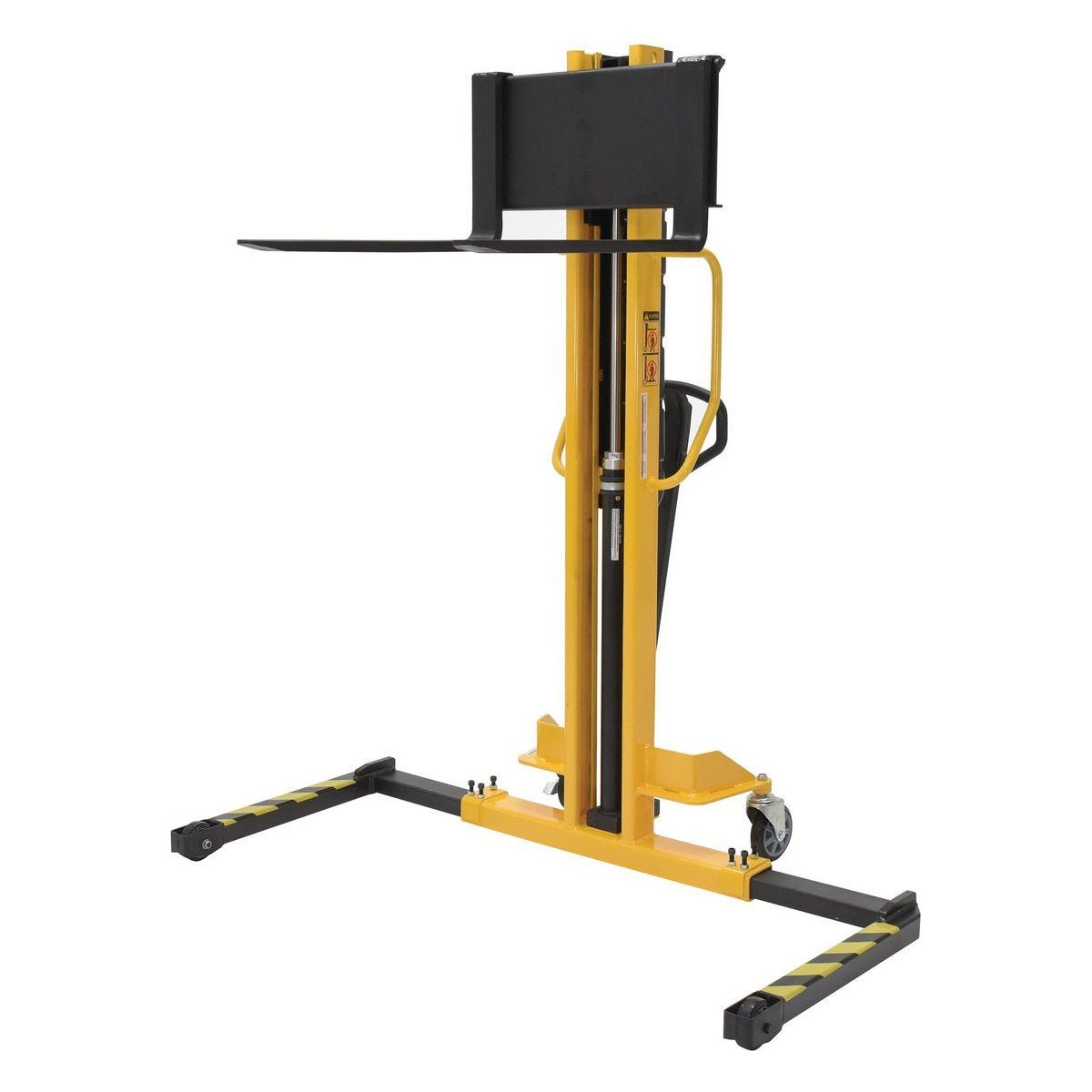

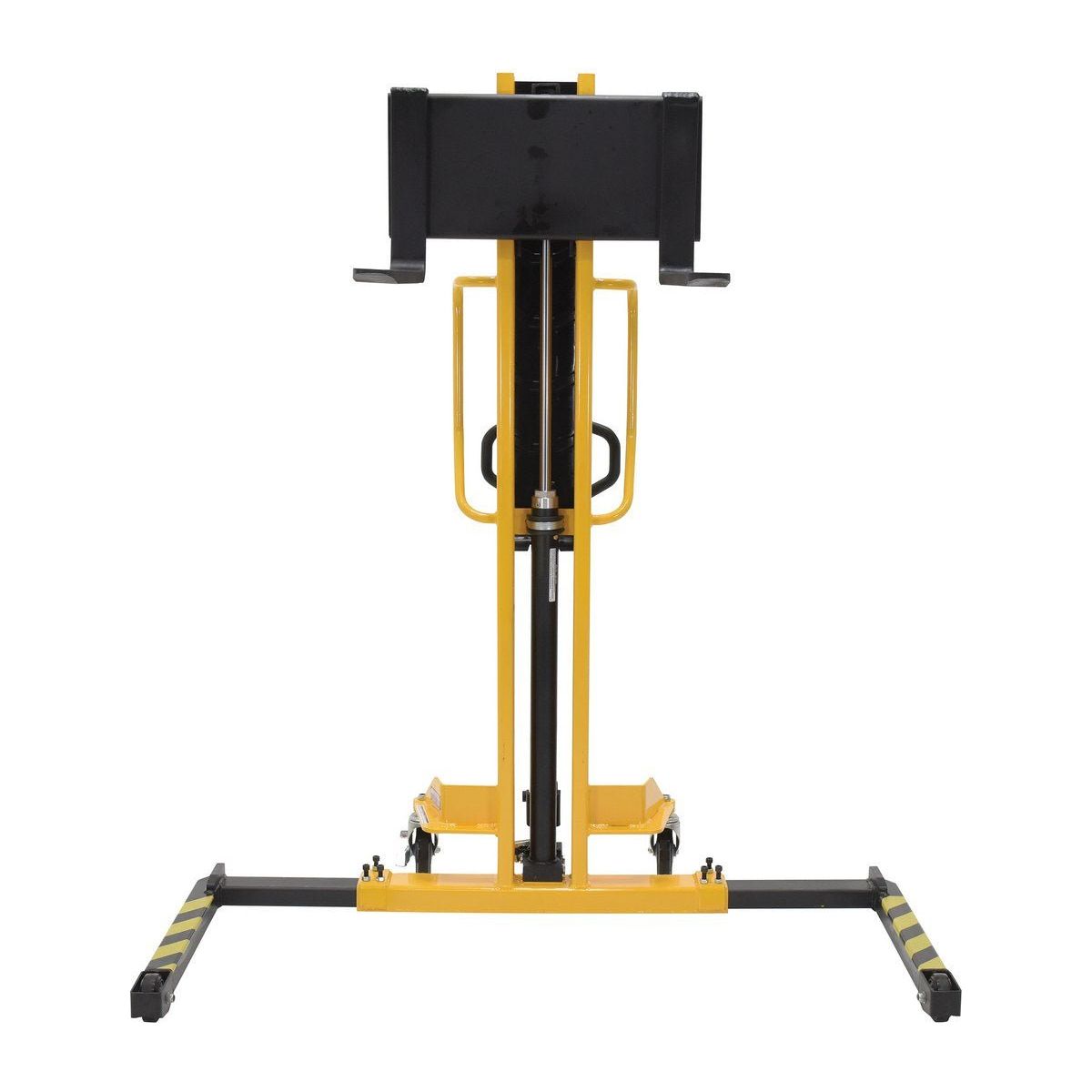

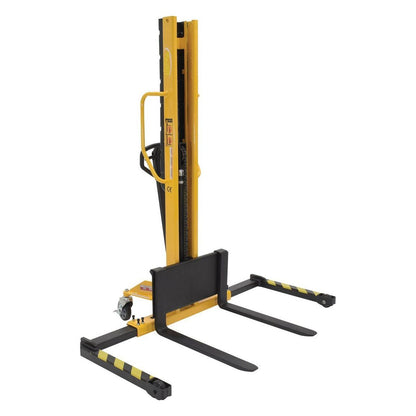

Sturdy and compact to fit through standard doors. Forks are raised by manual hydraulic hand pump operation and released by a lever situated on the handle. 1" lift per handle pump. Two rigid and two swivel wheels are standard.
Narrow mast to fit in compact areas
Unique construction is maintenance-free and easy to use
Full-height push handle allows for easy steering
Hand pump design offers easier and safer lifting
Can handle regular palletsandopen-bottom skids
Capacity: 1,000 LBS @ 15" load center (forks are 30" long)
2¹⁄₈" lowered height / 62" max. raised height
Forks rise ⁷⁄₈" per handle pump / requires 74 pumps to get forks to max. height
Forks adjust from 6¼"W O.D. to 26¾"W O.D.
Legs adjust from 36"W I.D. to 49½"W I.D.
Individual Fork Size: 3⅛"W x 30"L
Full-height push handle for easy steering
Excellent visibility through welded mesh guard
Manual hydraulic hand pump operation with lever release on the handle
