Vestil VWS-770-AA Adjustable Manual Straddle Leg
Vestil VWS-770-AA Adjustable Manual Straddle Leg
Regular price
$2,095.00 CAD
Regular price
Sale price
$2,095.00 CAD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability

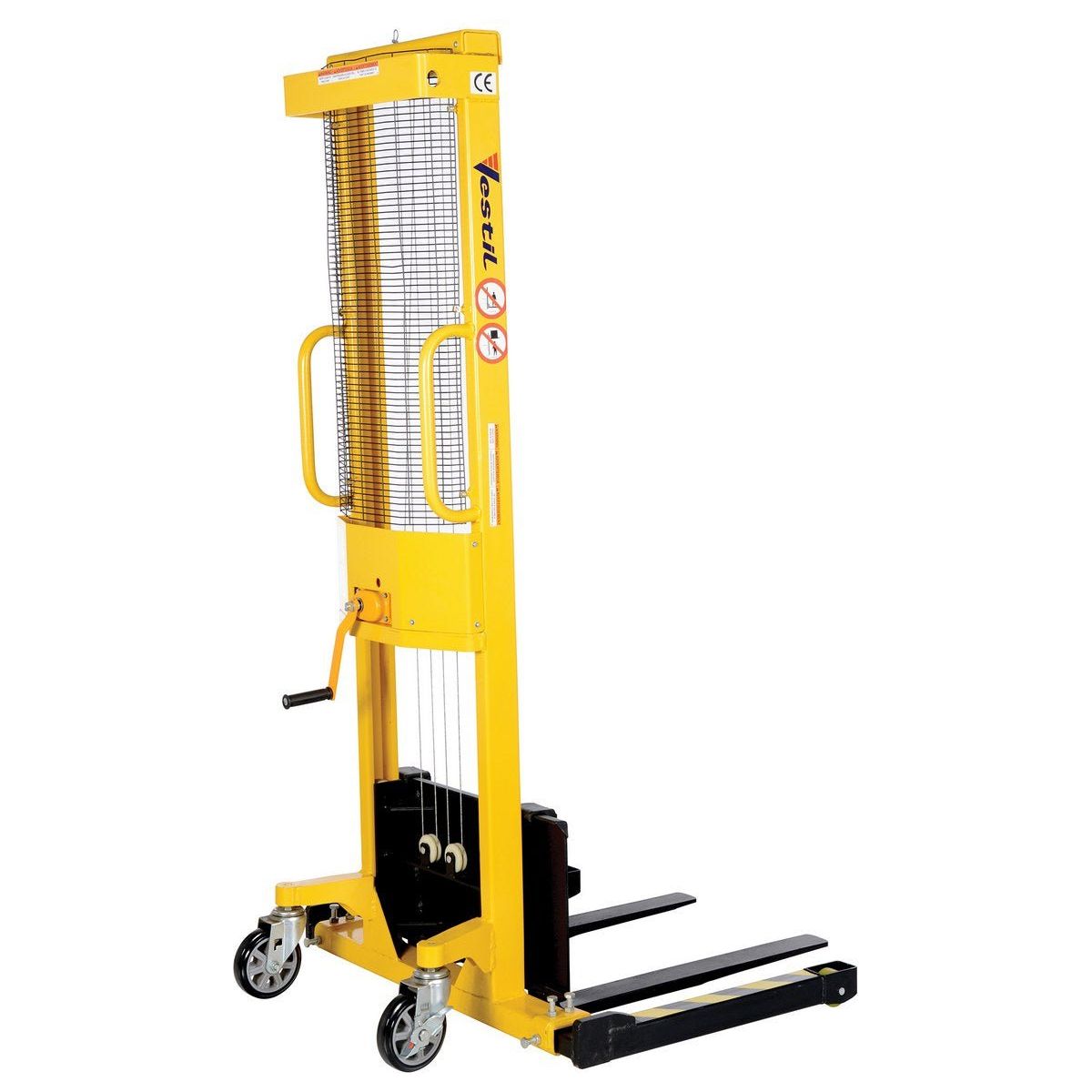

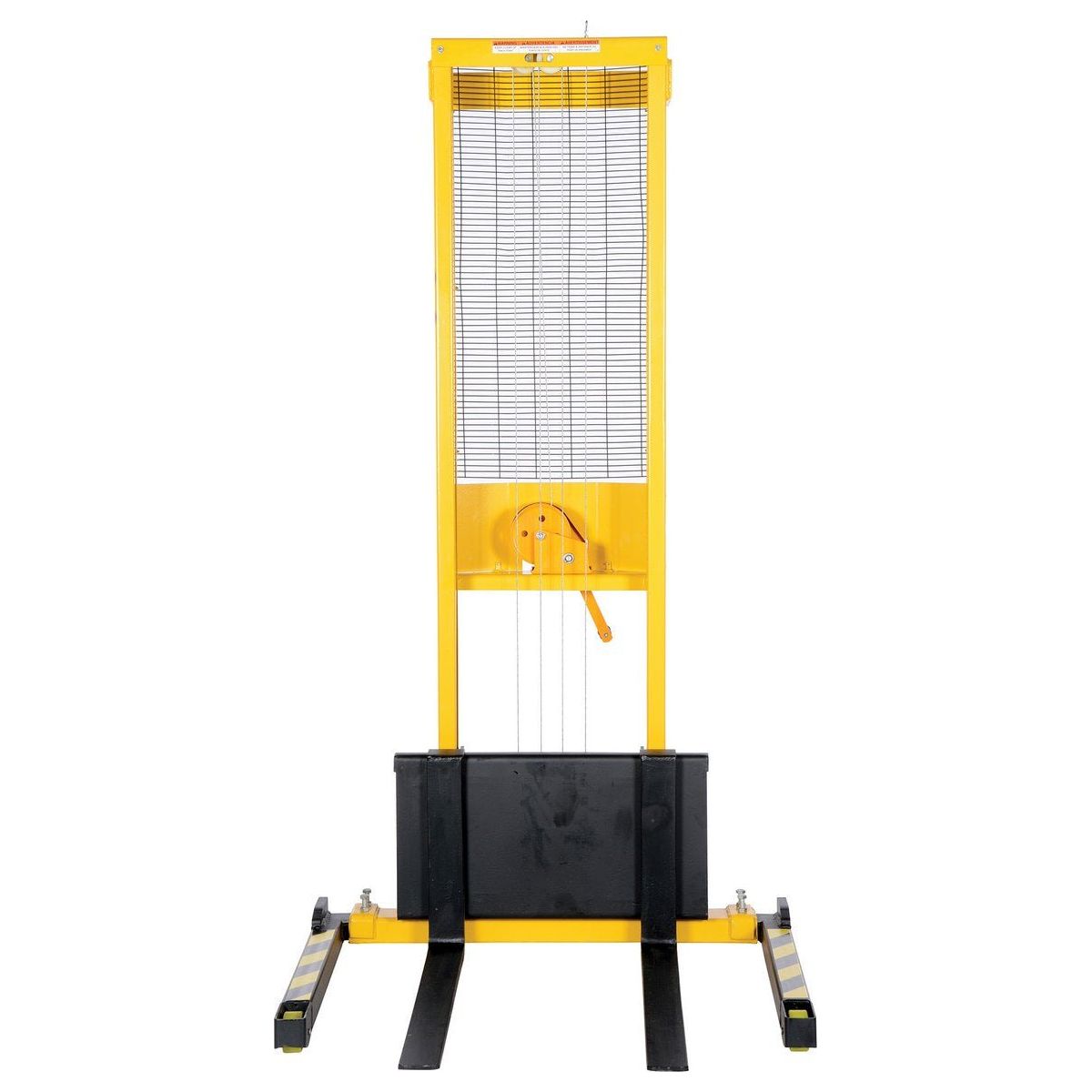

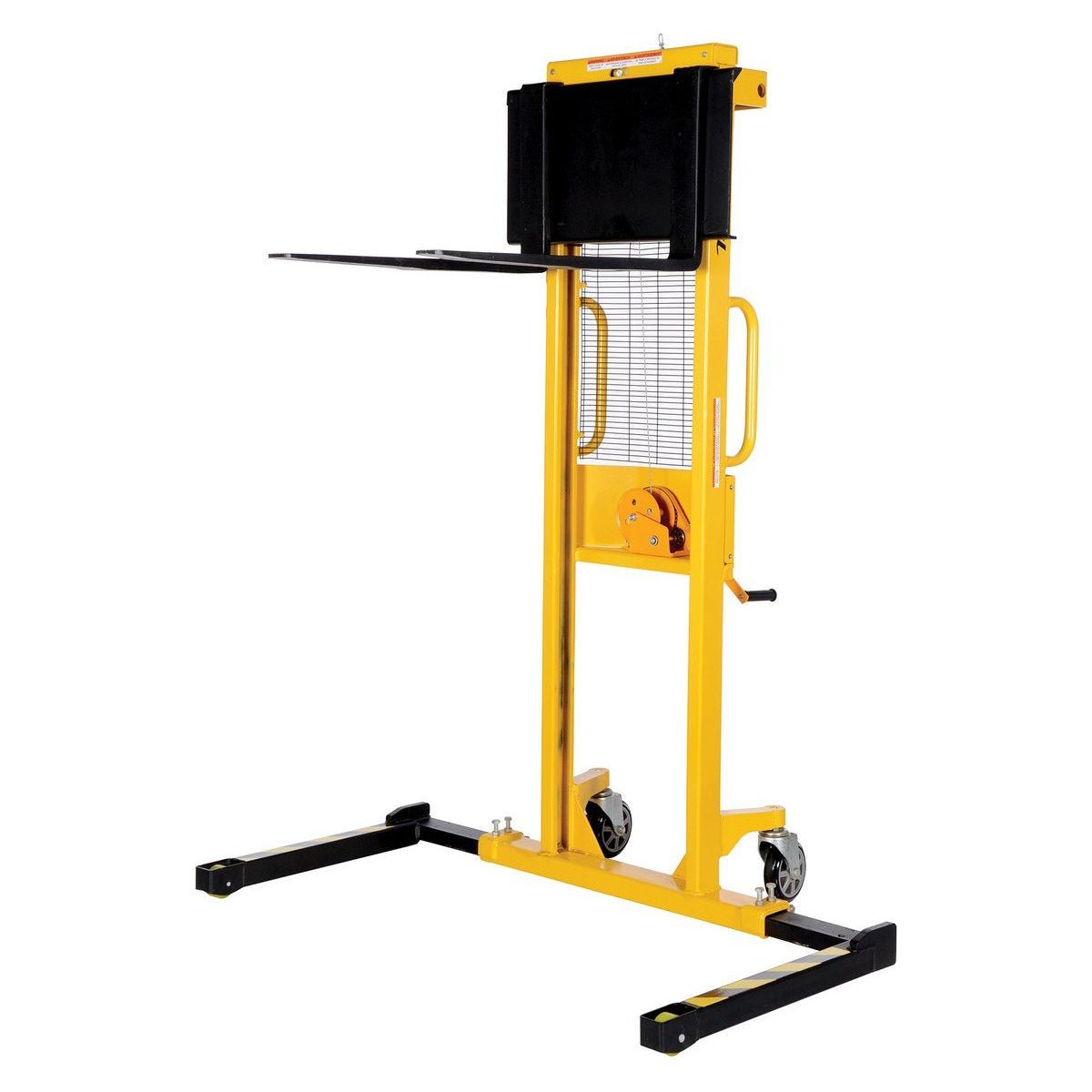

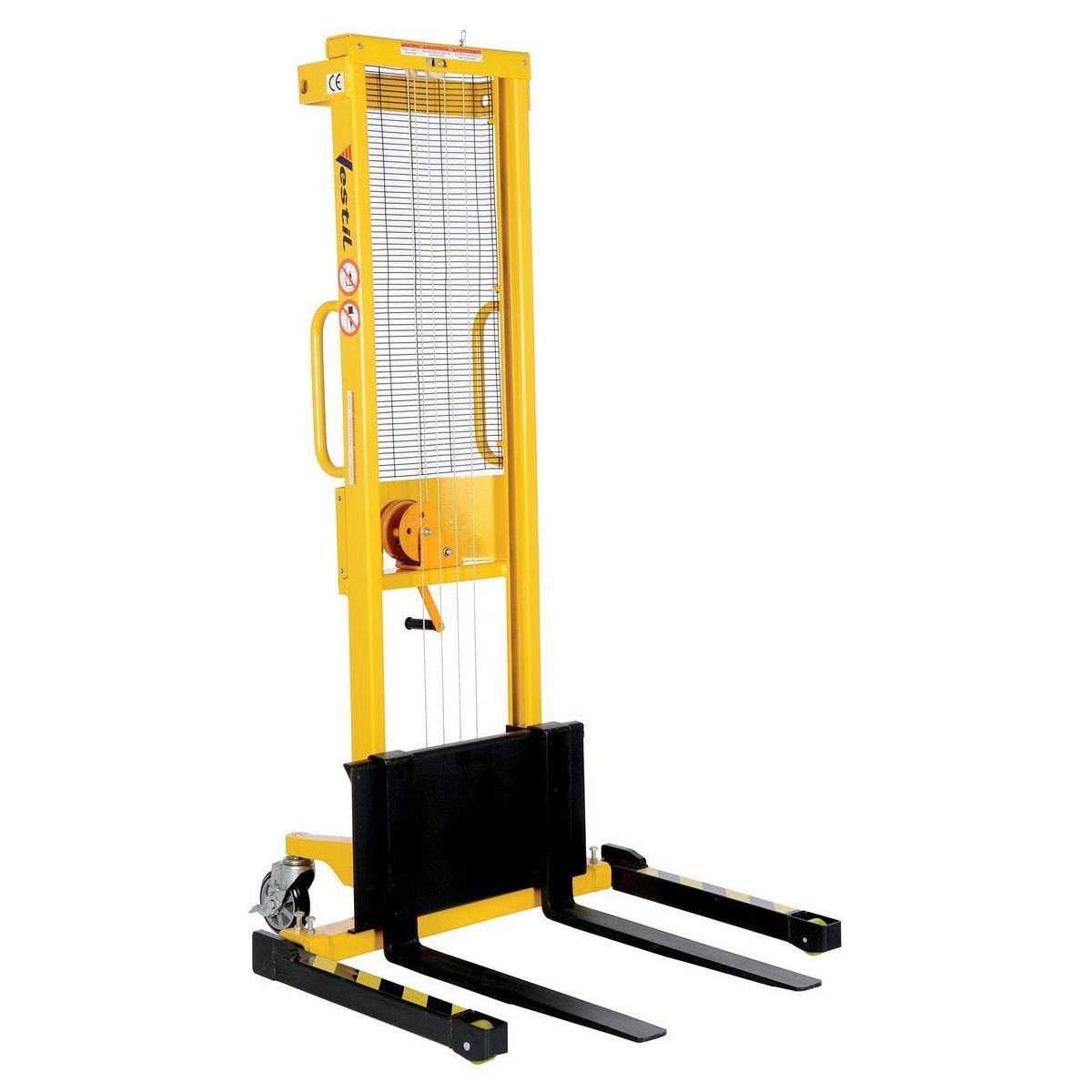

Steel Stacker with Adjustable Manual Hand Winch 770 Lb. Capacity Black / Yellow
The manual stacker is designed to meet the most challenging tasks. Ideal for use in various workstations and workplace applications. Maintenance-free and easy to use. The full-height push handle allows for easy steering and excellent visibility through a welded mesh guard with an optional removable platform available. The hand winch stacker features a heavy-duty mast and a unique winch design for easier and safer lifting. The lift and lower is done by hand winch and a steel cable mechanism. The two (2) rigid and two (2) swivel wheels with brakes make it easy to maneuver. The unit features both adjustable forks and adjustable legs.
- Manual stacker is maintenance-free and easy to use
- Includes a heavy-duty mast and a winch design for easier and safer lifting
- The lift and lower is a steel cable mechanism for simple use
- Features adjustable forks and legs for more than one application
| Uniform Capacity (lb.): 770 | Lowered Height (in.): 1-9/16 | Raised Height (in.): 59 |
| Horizontal Load Center (in.): 16 | Straddle Leg Minimum (in.): 35-1/2 (I.D) | Straddle Leg Maximum (in.): 47-1/4 (I.D) |
| Fork Adjustment Minimum (in.): 6-1/4 (O.D) | Fork Adjustment Maximum (in.): 26-3/4 (O.D) | Rear Caster Diameter (in.): 6 x 1-7/16 |
| Front Wheel Diameter (in.): 3 x 1-7/16 | Lift per Handle Revolution (in.): 3/4 | Individual Fork Width (in.): 3-1/8 |
| Fork Length (in.): 30 | Operation: Hand Winch | Overall Mast Height (in.): 78-3/16 |
