Vestil VWS-770-FF Fixed Manual Hand Winch
Vestil VWS-770-FF Fixed Manual Hand Winch
Regular price
$1,995.00 CAD
Regular price
Sale price
$1,995.00 CAD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability

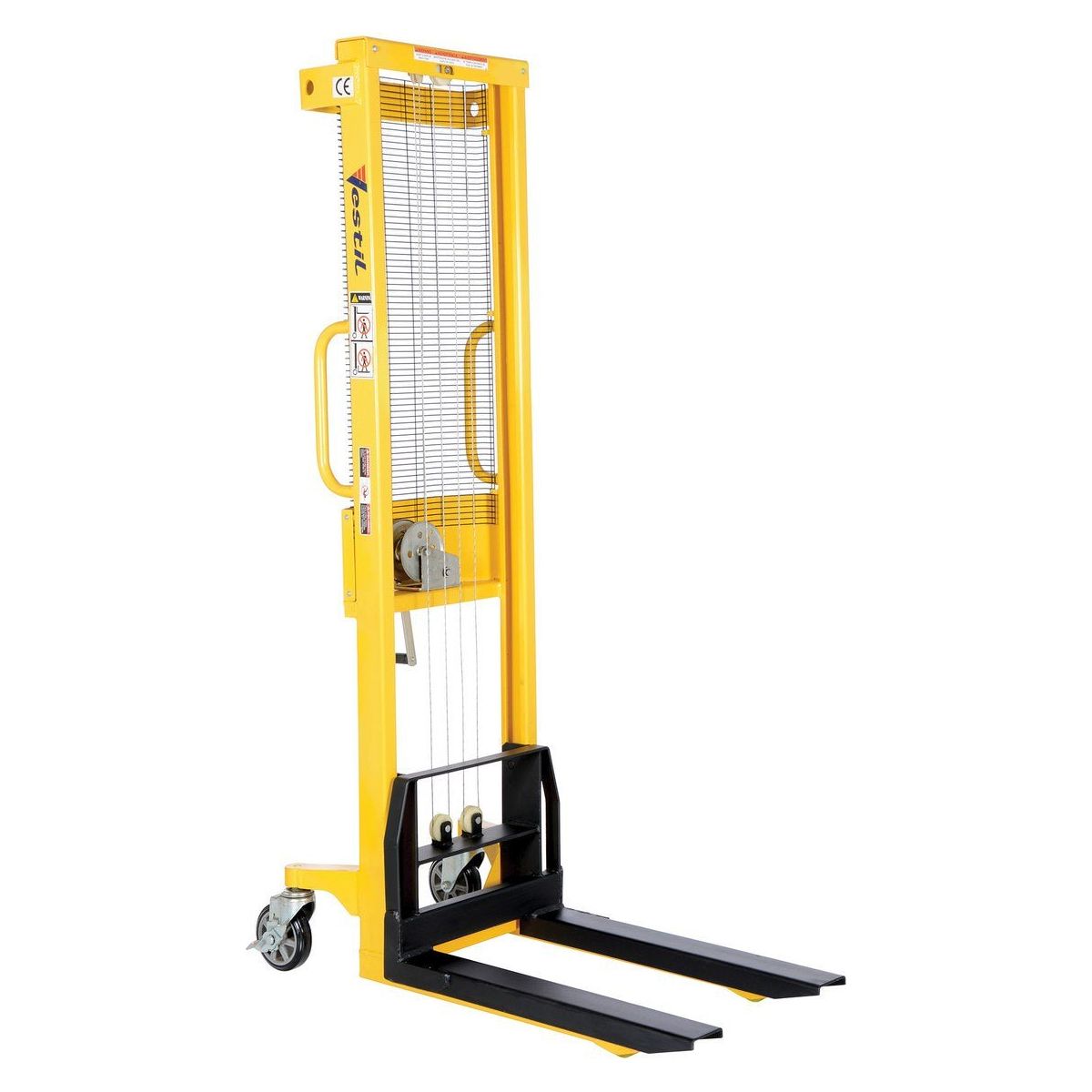

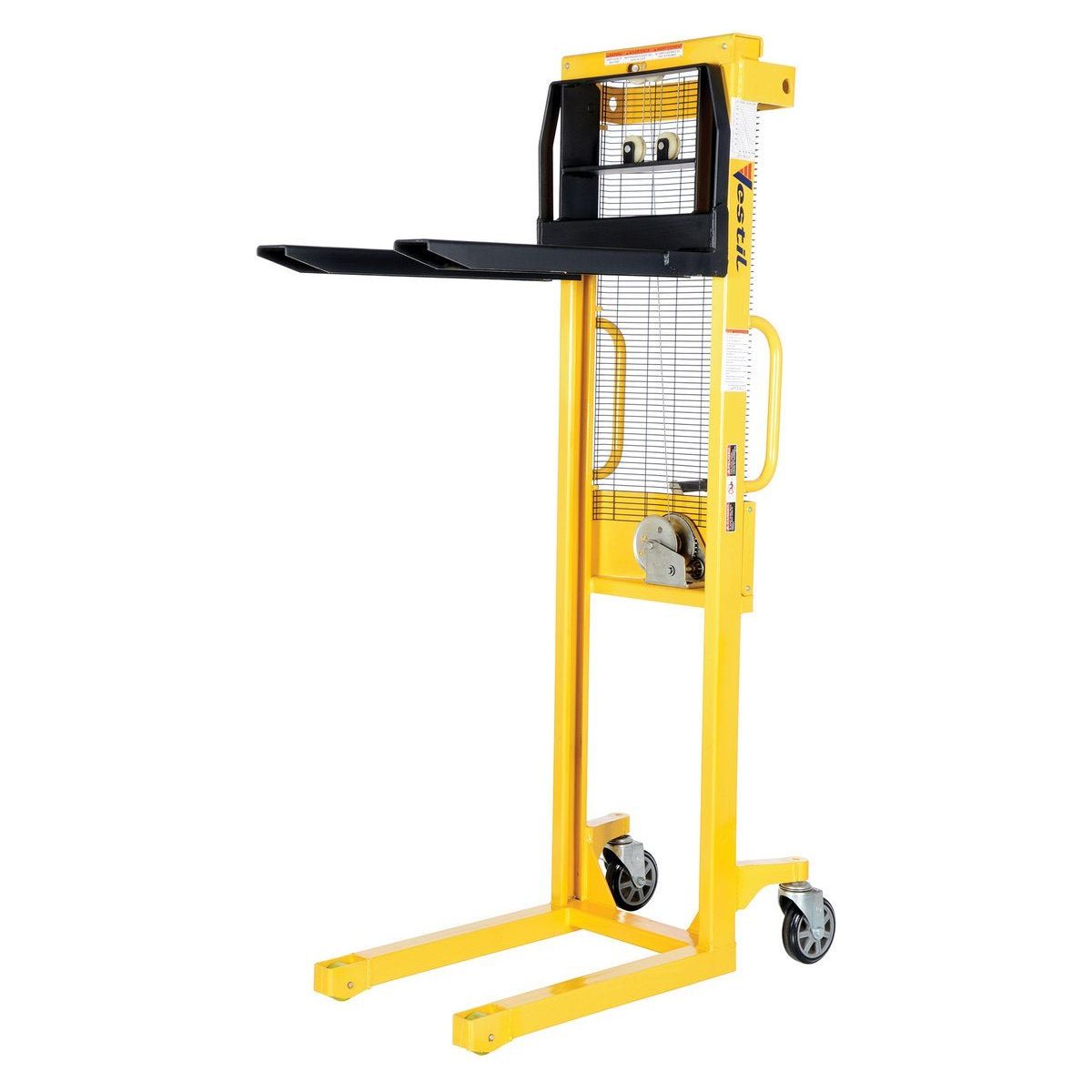

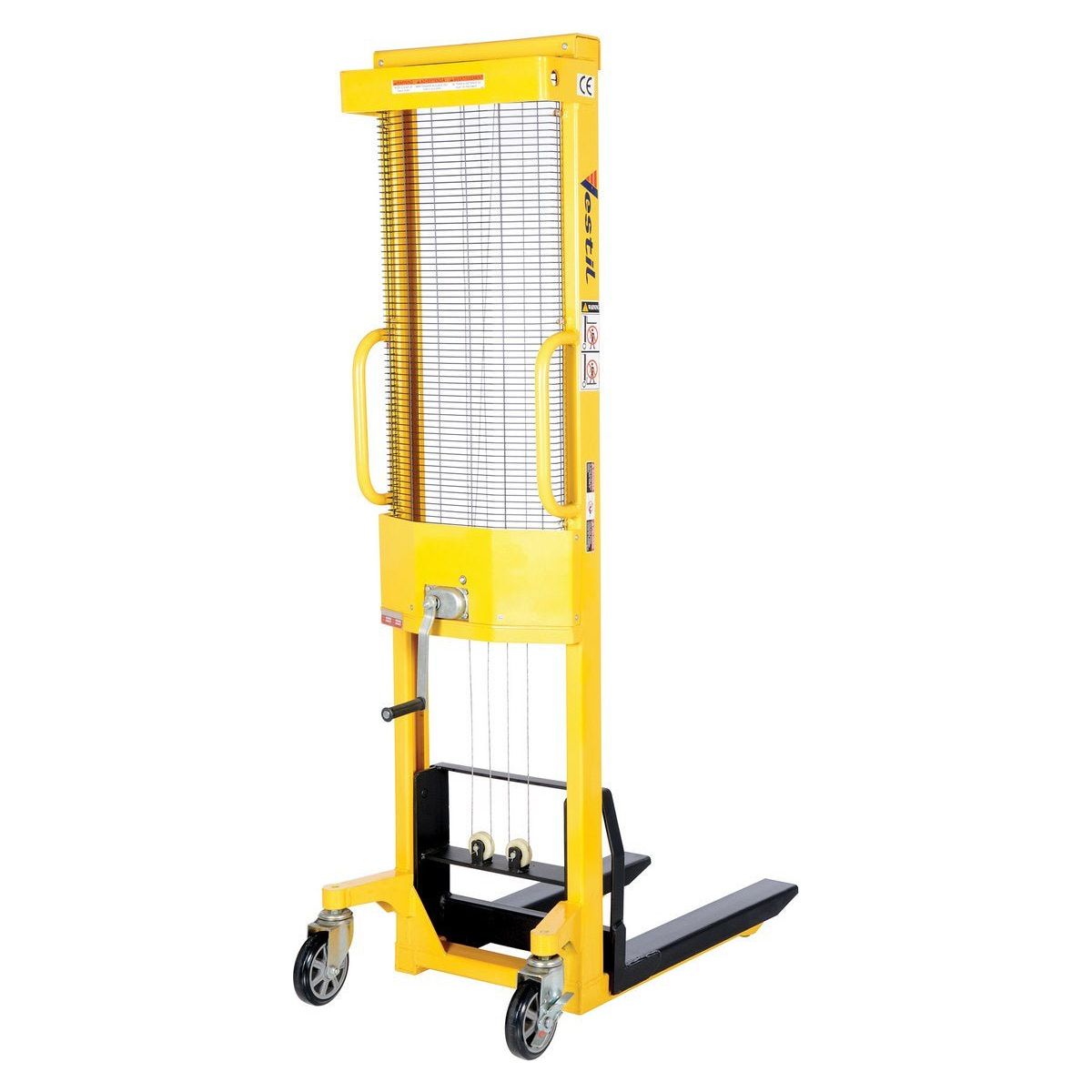

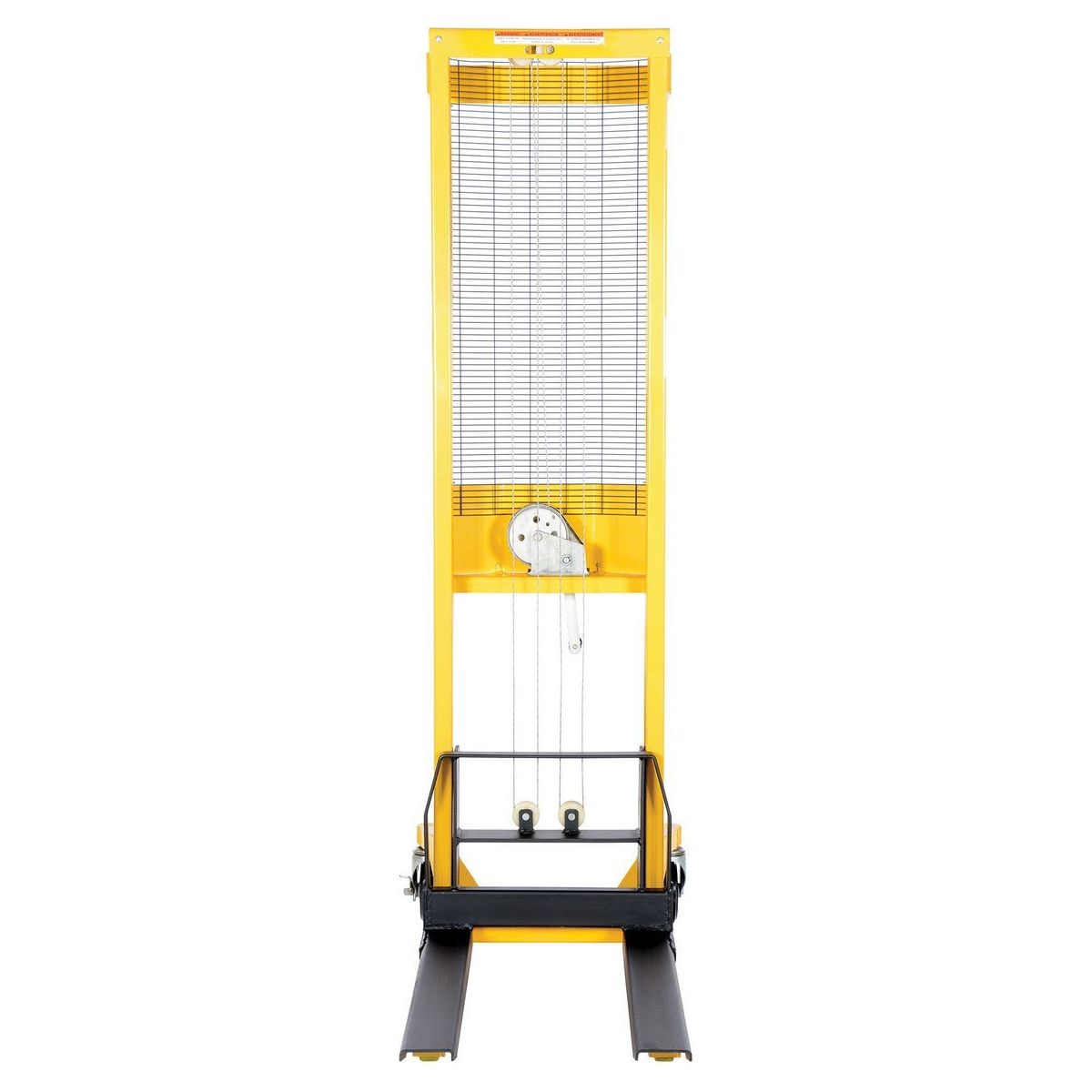

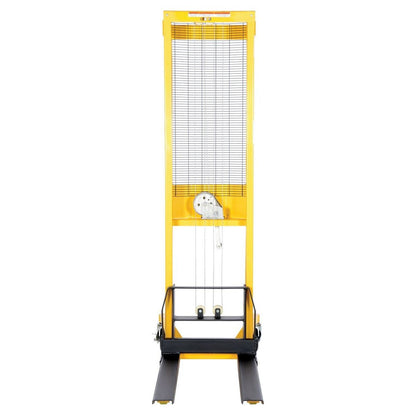

Steel Stacker with Fixed Manual Hand Winch 770 Lb. Capacity Black / Yellow
The manual stacker is designed to meet the most challenging tasks. Ideal for use in various workstations and workplace applications. Maintenance-free and easy to use. The full-height push handle allows for easy steering and excellent visibility through a welded mesh guard with an optional removable platform available. The hand winch design is sturdy and compact to fit through standard doors. The fixed forks are raised by a manual hand winch operation for precise product positioning. The unit has two (2) rigid and two (2) swivel wheels standard on fixed legs.
- Manual stacker is maintenance-free and easy to use
- Includes a heavy-duty mast and a winch design for easier and safer lifting
- The lift and lower is a steel cable mechanism for simple use
- Fixed forks for constant width
- Service Range: 3³⁄₈" to 60"
- Forks & legs are fixed at 20-11/16" wide O.D.
- Individual Fork Size" 4"W x 30"L
- Full height push handle for easy steering
- Excellent visibility through welded mesh guard
- Manual hydraulic hand pump operation with lever release on the handle
- Two rigid and two swivel casters with brake
- Overall Size: 24½"W x 48"L x 77½"H
Uniform Capacity (lb.): 770 | Lowered Height (in.): 3-3/8 | Raised Height (in.): 59 |
Horizontal Load Center (in.): 16 | Rear Caster Diameter (in.): 5.9 | Front Wheel Diameter (in.): 2.9 |
Lift per Handle Revolution (in.): 3/4 | Individual Fork Width (in.): 3-1/8 | Fork Length (in.): 30 |
Operation: Hand Winch |
